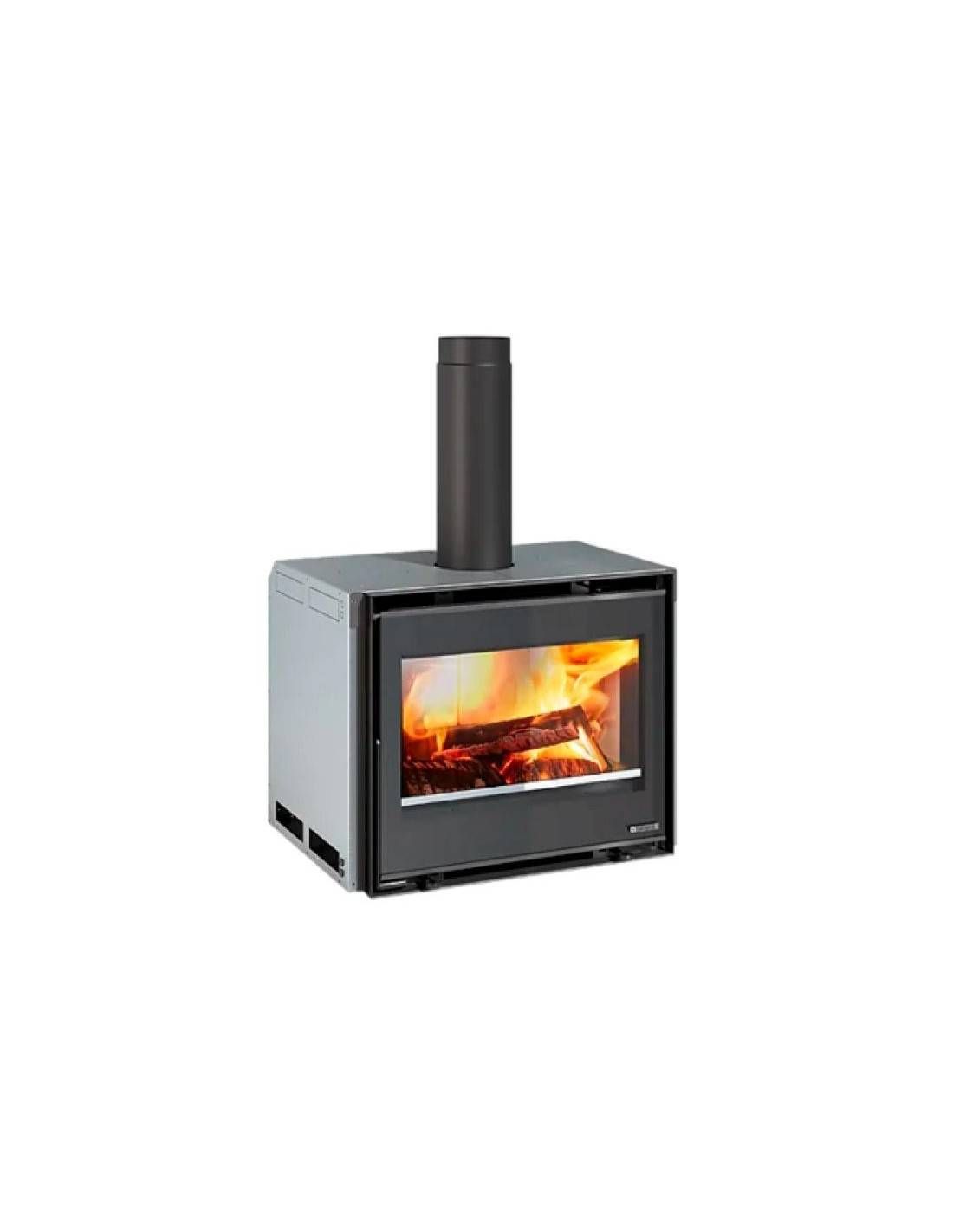

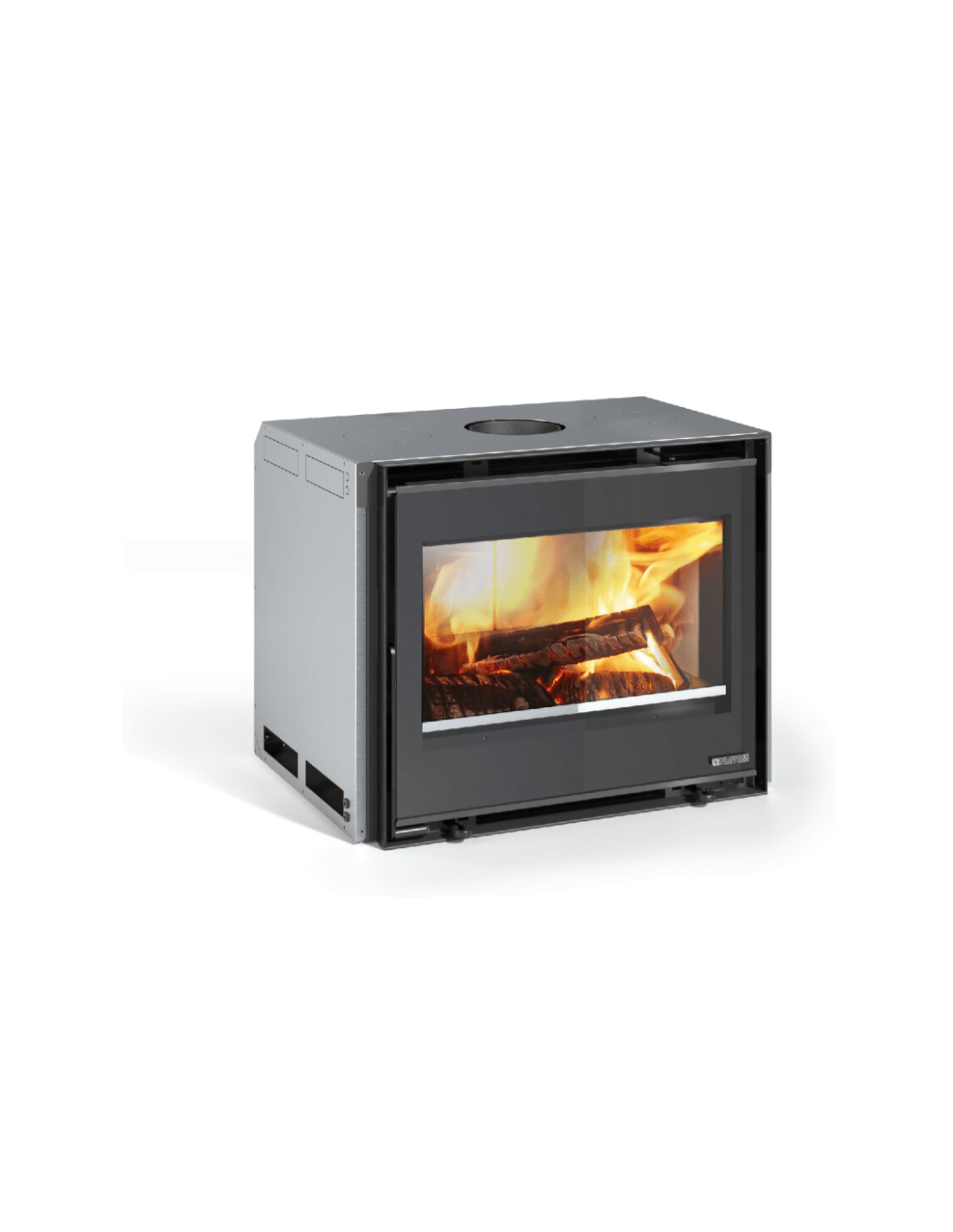

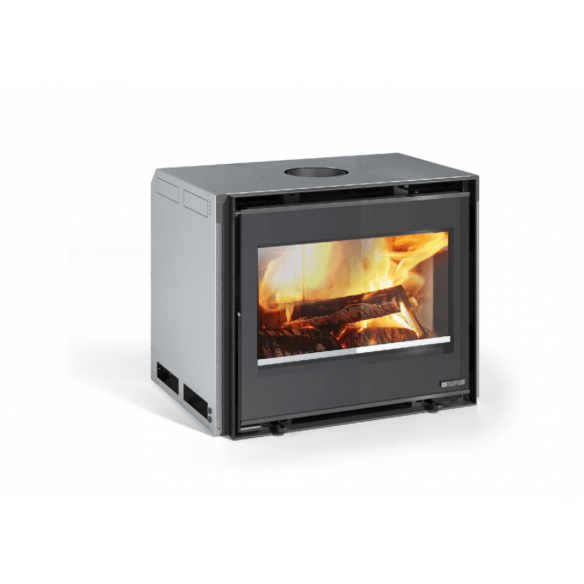

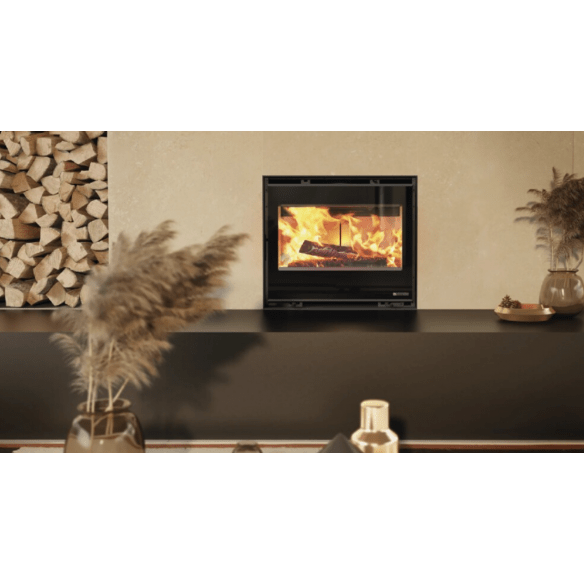

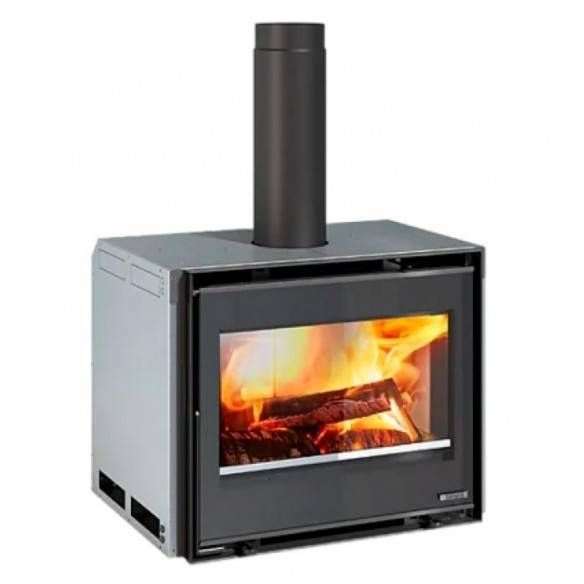

INSERT 70 EOS 70 Ventilated wood-burning insert La Nordica Extraflame

Characteristics:

The product's pluses

• Cast iron fireplace and Nordiker
• Cast iron door
• Painted steel structure
• Removable ash drawer
• Front ventilation outlet
• 1 standard tangential fan on the rear
• Adjustable primary and secondary air for better combustion management
• Low-emission post-combustion system
• Ceramic glass
• Possibility of channeling the product with Kit (optional)
• Ceramic catalytic filter
• Manual bypass valve (for wood loading ignition)
• Retractable opening handle

Nordiker fireplace

Nordica-Extraflame uses a special material called Nordiker to make the refractory materials on the walls of the hearth.

Post combustion

The combustion system developed by La Nordica-Extraflame allows, thanks to a secondary/tertiary air system, a post combustion capable of drastically reducing emissions.

Cast iron doors

The doors of the products made of high quality cast iron are unalterable over time and guarantee a constant seal

Glass cleaning system

It is a system that, through a specific preheated air path, effectively prevents the formation of deposits on the glass of the fire door.

Direct external air intake (BBC)

Air intake system that takes fresh combustion air from outside and directs it into the appliance's combustion air registers

Technical data:

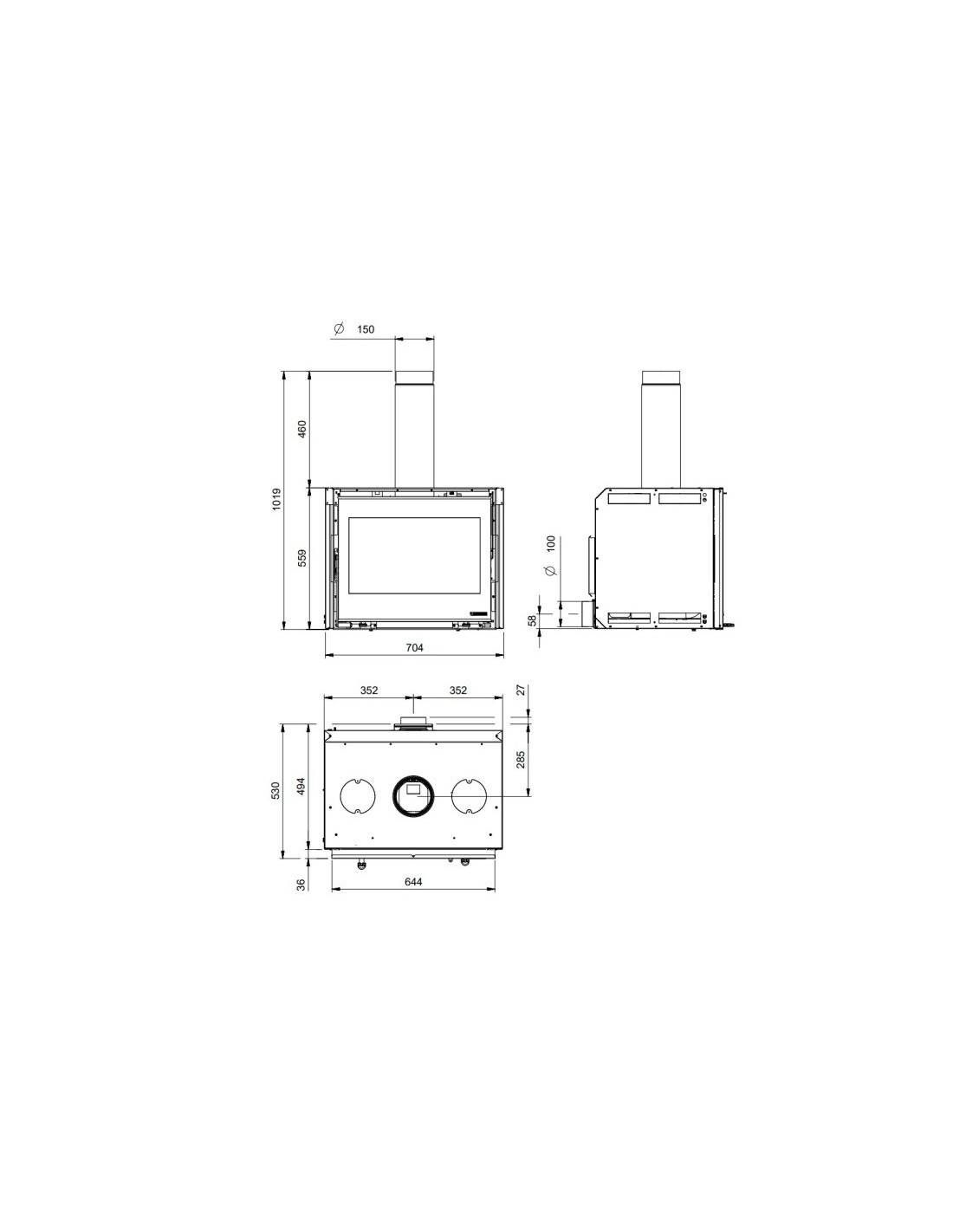

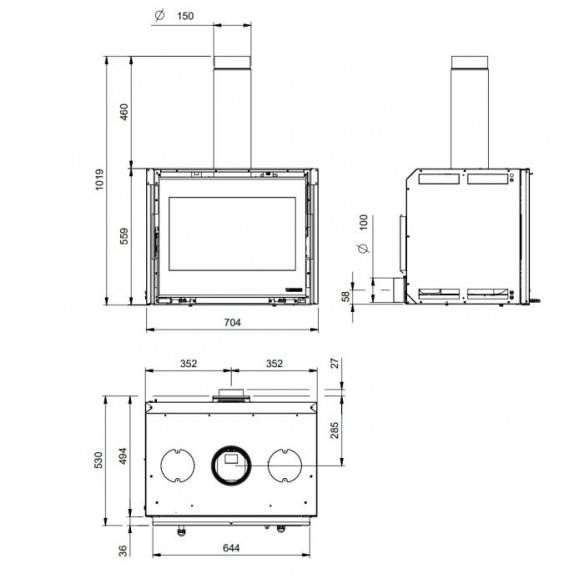

Dimensions (LxHxD) 704x1019x530 mm

Hourly consumption 1.1 - 2.3 kg/h

Flue pipe diameter (Ø) 150 mm S

Yield 86%

Net Weight 142 kg

DM186 5-star Environmental Certification

Nominal thermal power 4.2 - 8.5 kW

m³ heatable 244 m³ (*)
