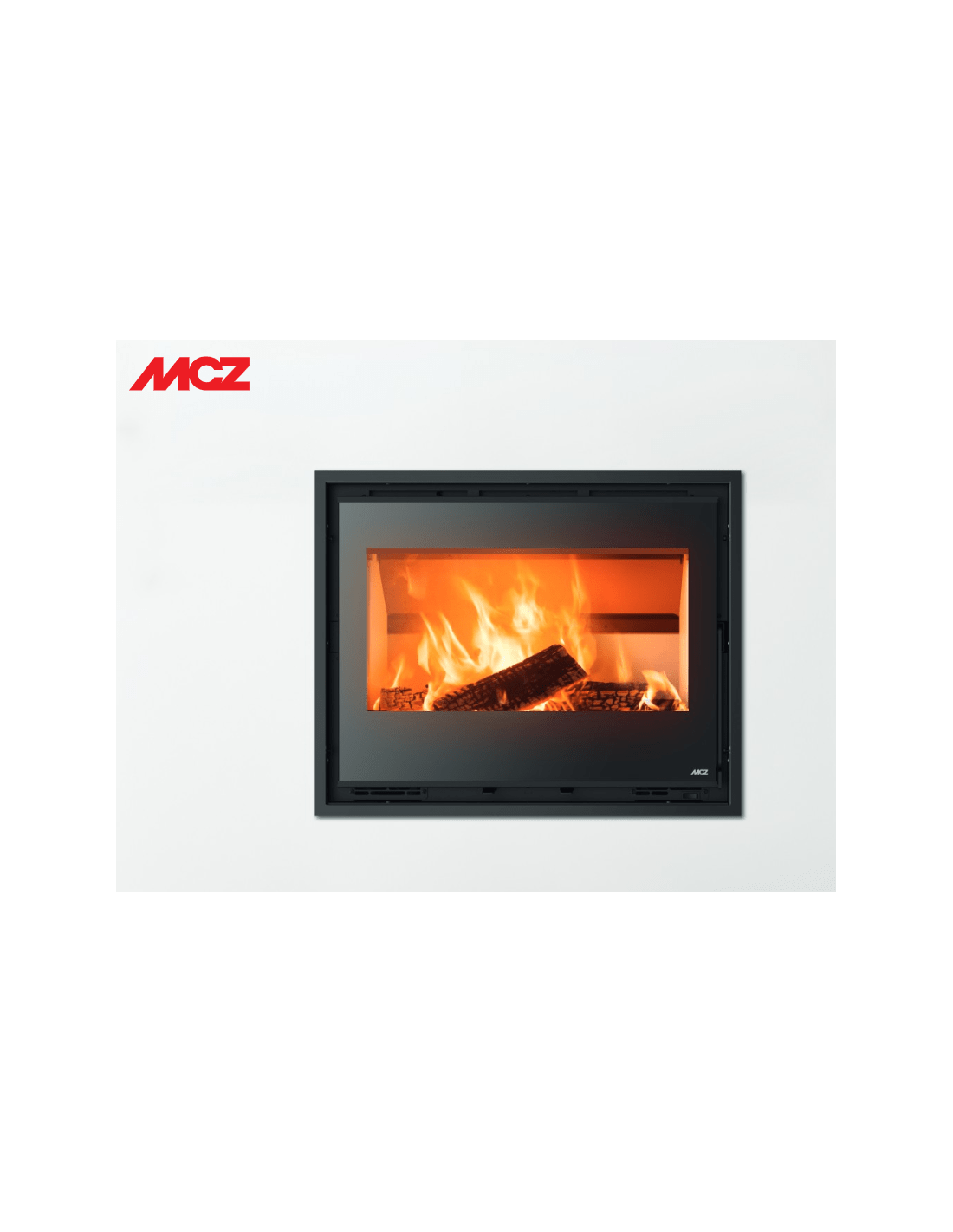

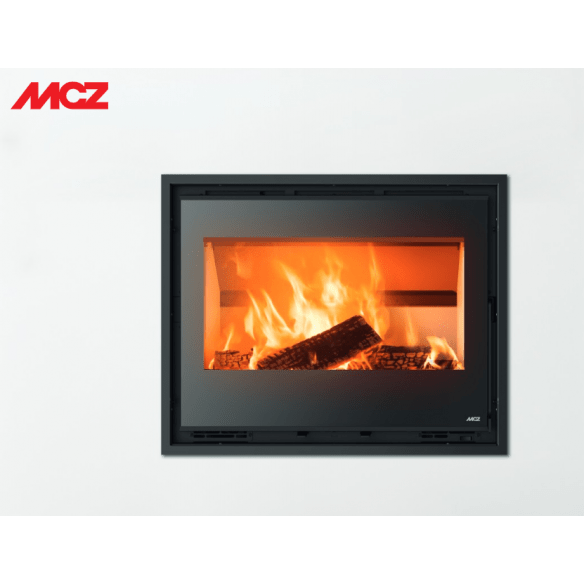

Front wood insert
A wood-fired, ventilated fireplace insert with a reduced depth of just 41 centimeters. Its particularly compact dimensions (W 69 x H 55 x D 41 cm) make it ideal for both existing fireplaces and new installations. It features a glass door and a built-in ashtray. Certified 5-star by ariaPULITA, it is eligible for the Conto Termico (Thermal Account) and all tax breaks.
Self-cleaning fireplace in Alutec®
Alutec® is the exclusive material developed and patented by MCZ for all its fireplaces. Thanks to a patented formula with a high alumina content, achieved at a temperature of 300°C, a chemical reaction ensures the self-cleaning of the fireplace. Its color, always light at high temperatures, gives the flame an unsurpassed brilliance, enhancing its aesthetic appeal.
Simplified cleaning
Cleaning is made easy thanks to the self-cleaning firebox made of self-whitening refractory material, which makes the flame particularly visible and bright. The perfect calibration of the cleaning air also keeps the glass perfectly clear and free of ash residue. The particularly spacious ash drawer is ideal for collecting unburned ash without having to clean the firebox daily.
EASY TO INSTALL
With the MCZ QBox wood-burning fireplace insert, installation is even easier thanks to the 150 mm flue pipe (200 mm for the QBox 100), which adapts to many situations, and the door, with a handle on the right as standard, but reversible after installation if necessary.
The depth is also among the smallest on the market, 41 cm for the QBox 60 and QBox 70 models, 46 cm for the QBox 80 and QBox 100 models.
STANDARD VENTILATION
MCZ QBox fireplace inserts are all equipped with a powerful yet exceptionally quiet front ventilation system as standard, allowing for optimal heat distribution throughout the room where the product is installed. Ventilation can be adjusted with two power levels or automatically. If necessary, the air flow can also be directed upwards.
TECHNICAL DATA:
- Energy efficiency class (A++/G scale) A+
- Seasonal space heating energy efficiency (ηs) 75.00 %

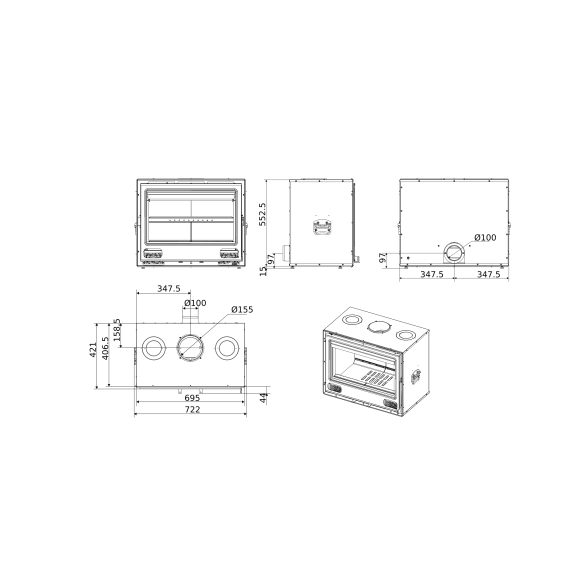

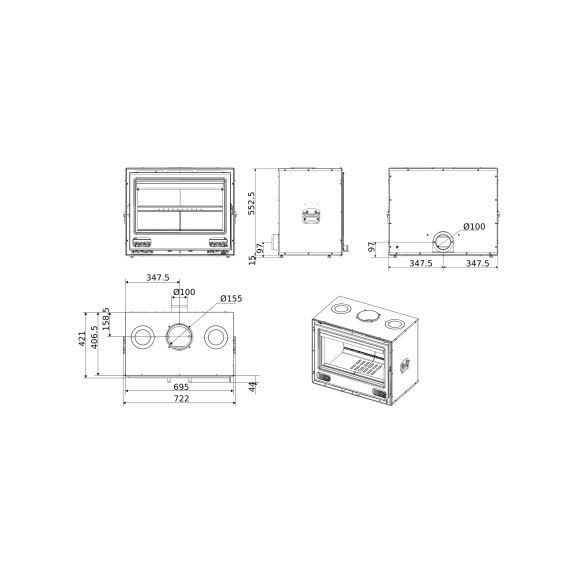

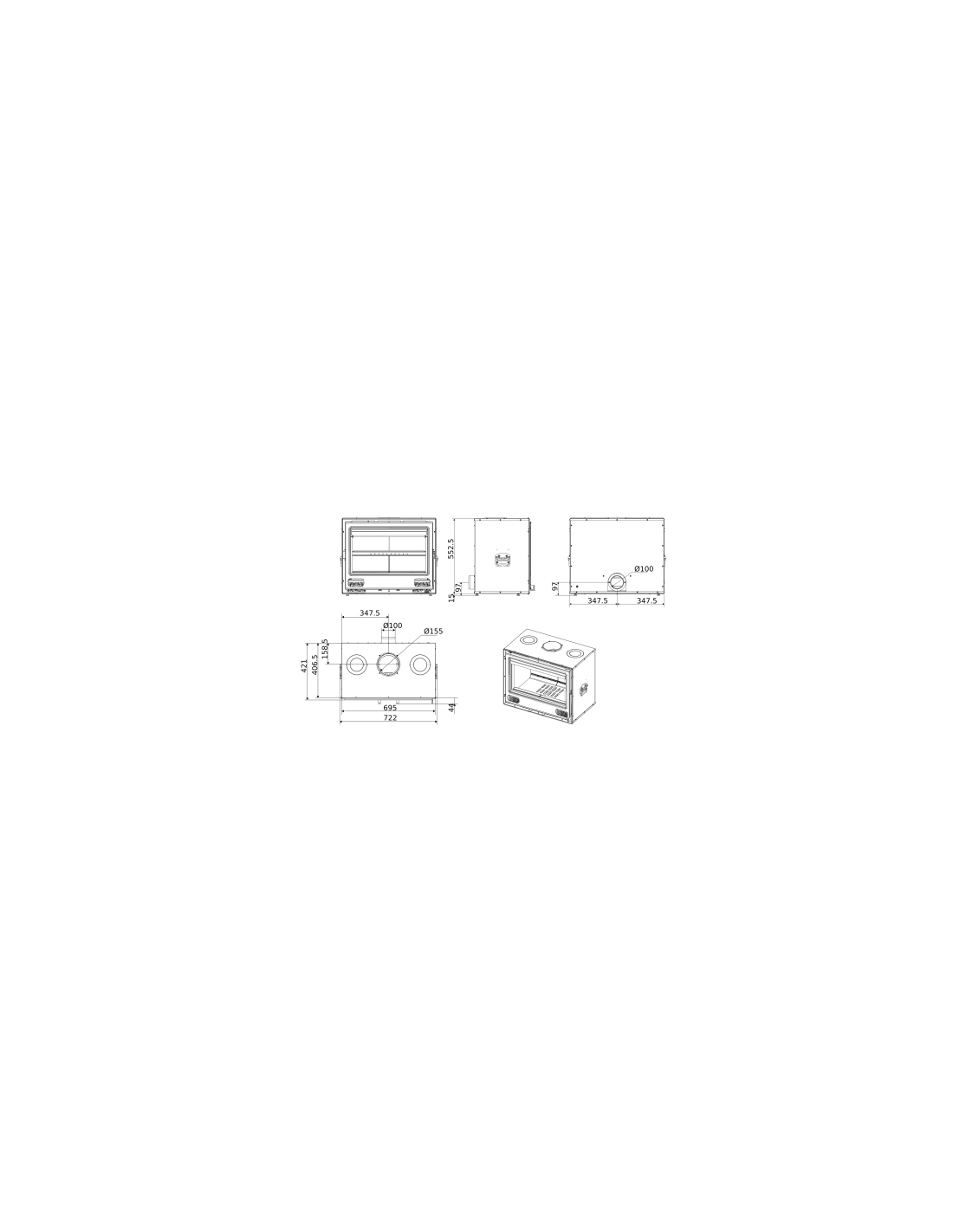

- Dimensions (LxHxD) 72.2 x 55.3 x 42.1 cm
- Nominal thermal power 8.80 kW
- Minimum thermal power 4.20 kW
- Maximum yield 85.30%
- Yield at minimum 80.20%
- Minimum hourly consumption 1.22 kg/h (**)
- Maximum hourly consumption 2.41 kg/h (**)
- Heatable volume with a requirement of 20W/m³ 440.00 m3 (*)
- Heatable volume with a requirement of 35W/m³ 251.00 m3 (*)
- Heatable volume with a requirement of 55W/m³ 160.00 m3 (*)
- Smoke outlet diameter 150 mm
- Weight 120.00 kg
- Smoke temperature 218.00 °C
- Mass flow rate of fumes 6.80 g/s
(*) The declared volume represents the number of cubic meters the product can heat based on the average home energy requirement (expressed in W/m3). The values shown are purely indicative; mandatory energy calculations require a dedicated professional assessment.
(**) Data may vary depending on the fuel used.
