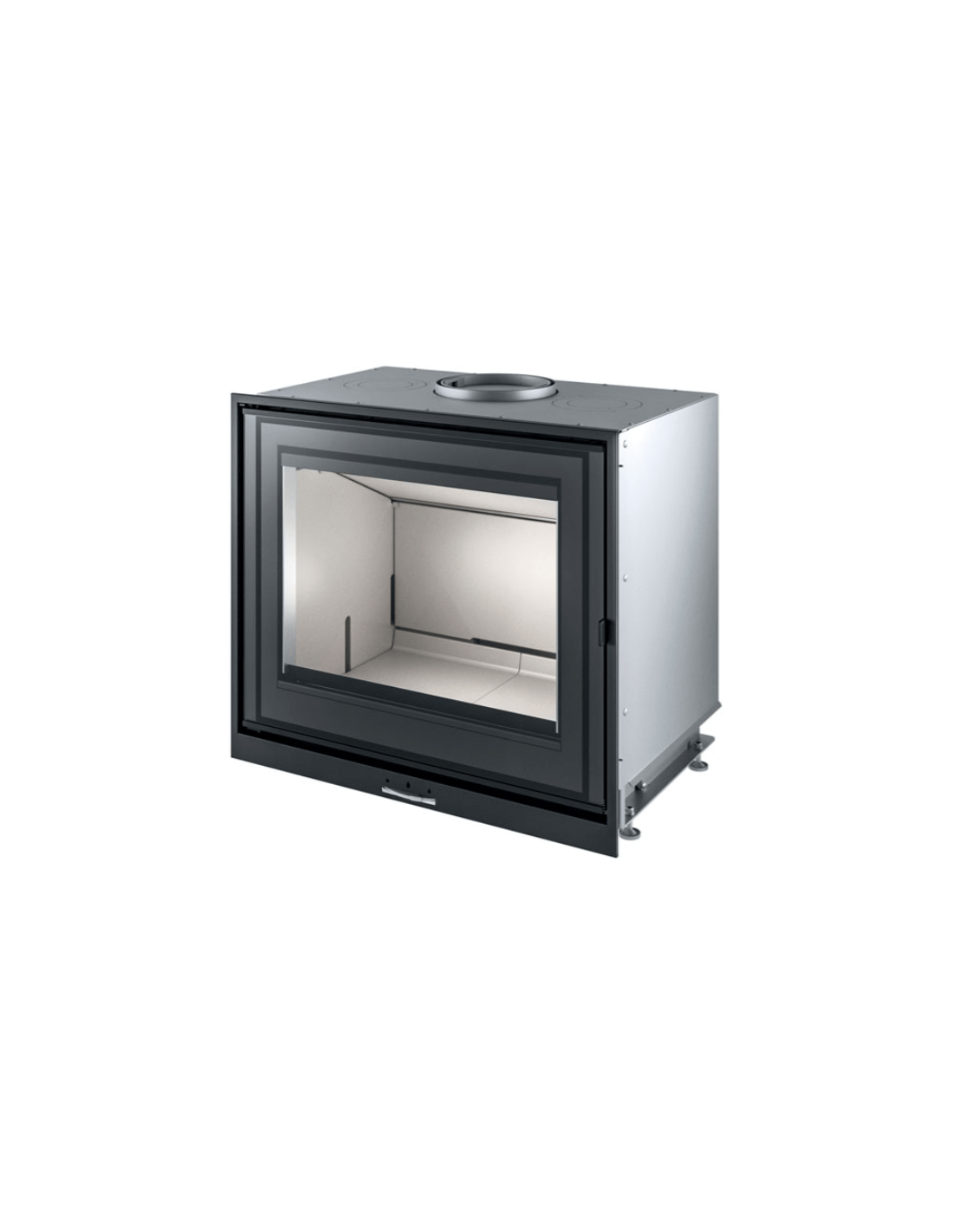

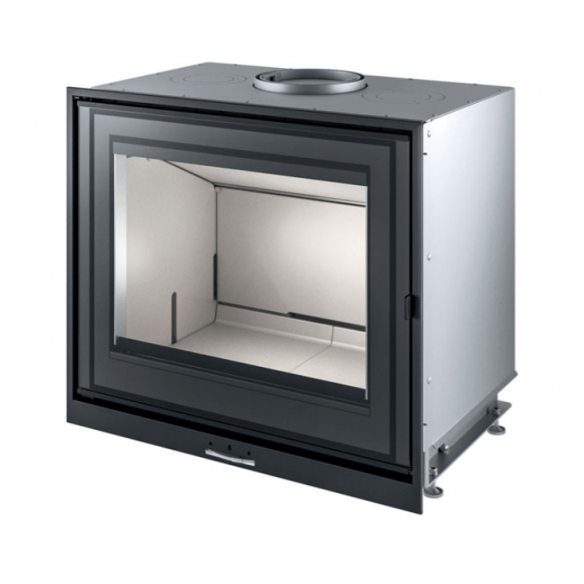

VIVO 70 Wood MCZ wood-burning fireplace insert

Wood-burning fireplace insert

Wood-burning fireplace insert with an Alutec® firebox and a swing door with automatic soft-closing for easy loading and cleaning. Thanks to its compact size and light weight, this insert is particularly suitable for both existing fireplaces and new installations. Combustion is calibrated for extremely clean and efficient combustion, so much so that this fireplace achieves a 4-star rating.

Ideal for heating multiple rooms

In addition to natural convection operation, all Vivo models can be integrated with the COMFORT AIR® system, which allows the hot air produced by the fireplace to be channeled and transported to multiple rooms, even non-connected ones or on different floors of the house.

Self-cleaning fireplace in Alutec®

Alutec® is the exclusive material developed and patented by MCZ for all its fireplaces. Thanks to a patented formula with a high alumina content, achieved at a temperature of 300°C, a chemical reaction ensures the self-cleaning of the fireplace. Its color, always light at high temperatures, gives the flame an unsurpassed brilliance, enhancing its aesthetic appeal.

Ease of use

Their size and depth are much smaller than traditional fireplaces, making them perfect for any space. Furthermore, Vivo models come with a built-in compensation frame for easy installation. The final aesthetic is always perfect, thanks in part to the Alutec interior, which allows even more light into the fireplace.

Technical data:

Wood fuel

Hourly consumption 2.6 kg/h

Thermal power kW 10.8 Kcal 9288

Yield 85.5%

Heatable volume m3 232/40-265/35- 310/30

Minimum draft 8 Pa / 0.08 mbar

Flue gas temperature 270°C

Smoke outlet diameter Ø 20 cm

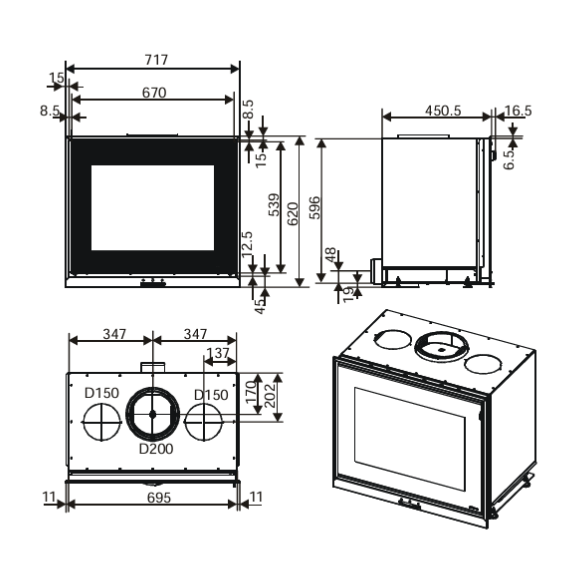

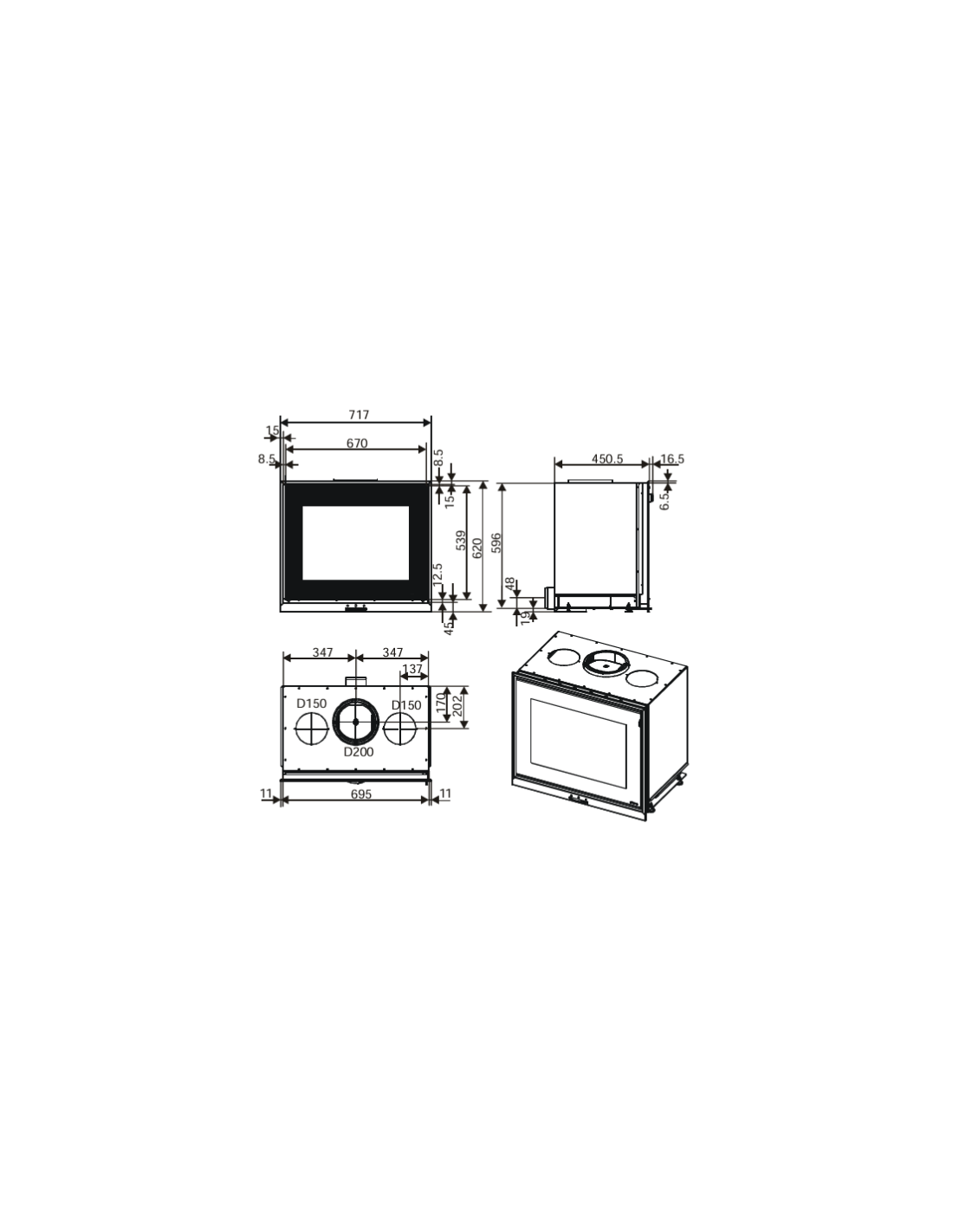

Firebox size 55X31 H28

Weight 125 kg

External combustion air intake cm² 100 CO at 13% O2 at Min and Max

Smoke mass 7.4 g/s

Chimney Up to 5 m. 20x30 cm Ø 22 Over 5 m. 20x20 cm Ø 20
