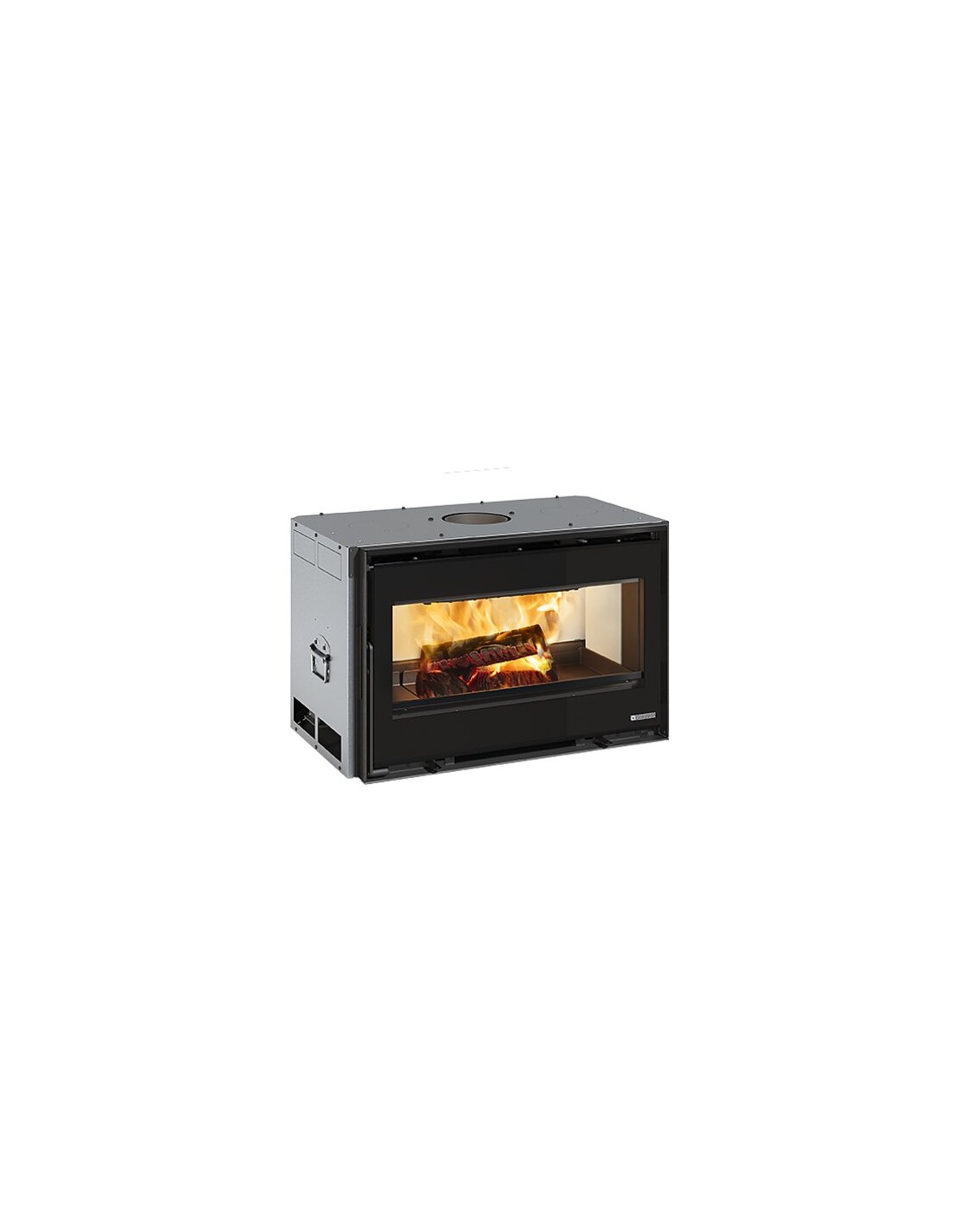

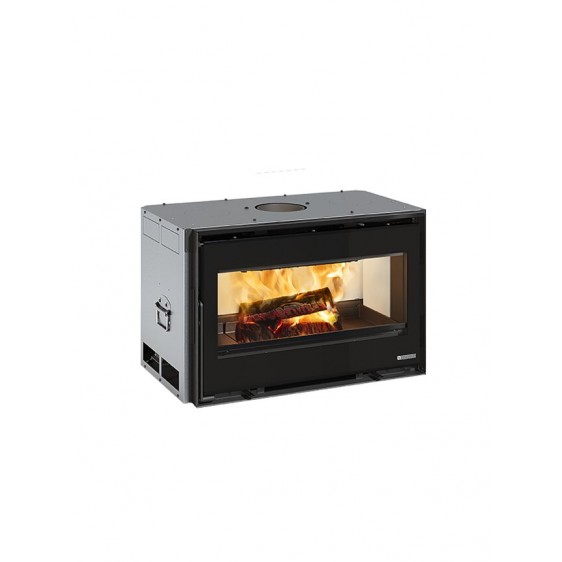

La Nordica Inserto 80 H49 LEAN Ventilated Wood Insert 9.5 kW

La Nordica Inserto 80 H49 LEAN

The Inserto 80 H49 LEAN is a ventilated wood-burning insert designed to combine high thermal performance, efficient heat distribution and easy maintenance.

Main advantages

• Nominal thermal power: 9.5 kW
• Efficiency: 79-80%
• Seasonal efficiency: 70%
• Indicative heatable volume: 272 m³
• Direct outdoor air intake
• Cast iron and Nordiker firebox
• Thick cast iron firebed
• Front ventilation
• Rear tangential fan accessible from the front for maintenance
• Extractable ash drawer
• Retractable opening handle

Technical data

Dimensions: 794 x 495 x 490 mm. Fire opening: 626 x 205 mm. Firebox: 629 x 257 x 244 mm. Maximum wood length: 30 cm. Net weight: 125 kg. Flue outlet: Ø150 mm top. Hourly consumption: 1.3-2.7 kg/h.

Environmental certification: DM186 5 stars.
