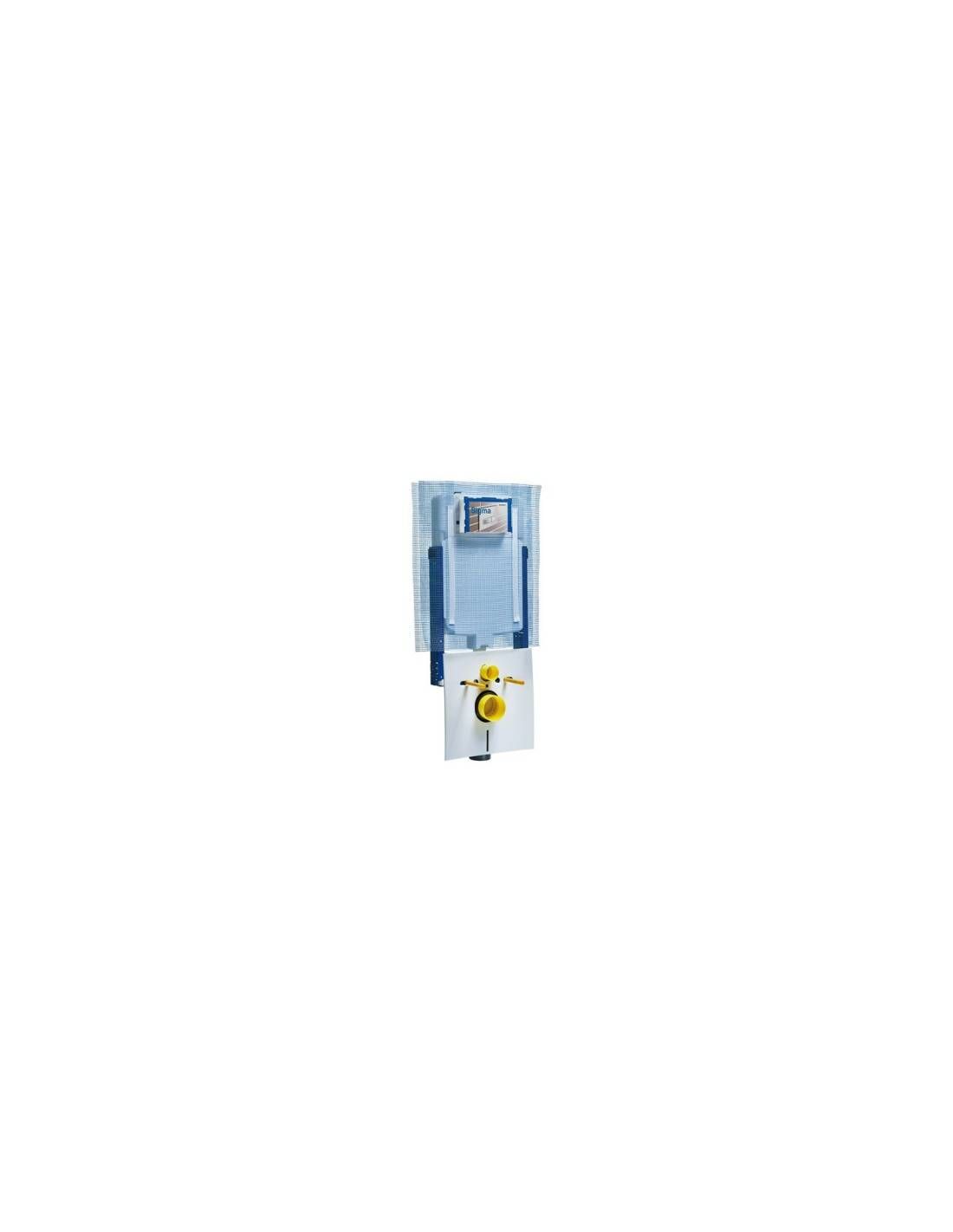

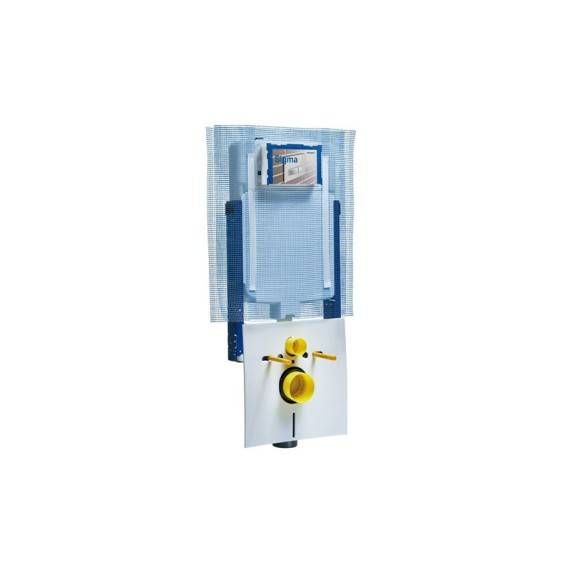

Combifix flush cistern for Geberit wall-hung toilet
Combifix built-in cistern for wall-hung toilets
Built-in cisterns are very functional and allow water saving thanks to their very measured flushing functions.
They are not included with the box and must be purchased separately from the product, based on your needs:
the Sigma control plate to choose from the various models available
The combifix flush cistern has the following features:
it can be built into brick walls , and can also be inspected once it has been bricked up in order to replace worn materials inside it
It's for wall-hung toilets
It has a powder-coated mounting frame covered with four fixing flanges
Many Sigma plates can be applied
It has a tank of approximately 8 litres with the possibility of activating a double flush , the first from 7.5-4.5 litres and the second from 4.0-3.0 litres
It is insulated against condensation
It has a pre-assembled plasterboard mesh
It has a built-in rinse curve and another adjustable curve of 2 cm upwards and 1 cm downwards
the water connection can be made from above, to the side or offset to the left
The package includes :
- a R 1/2 '' water connection , MF compatible, with integrated stop valve and knob
- Construction site protection with inspection opening
- WC connection set Ø 90 mm
- PE-HD technical curve Ø 90 mm
- two protective caps
- two M12 threaded rods
- decoupling set
- fixing material
