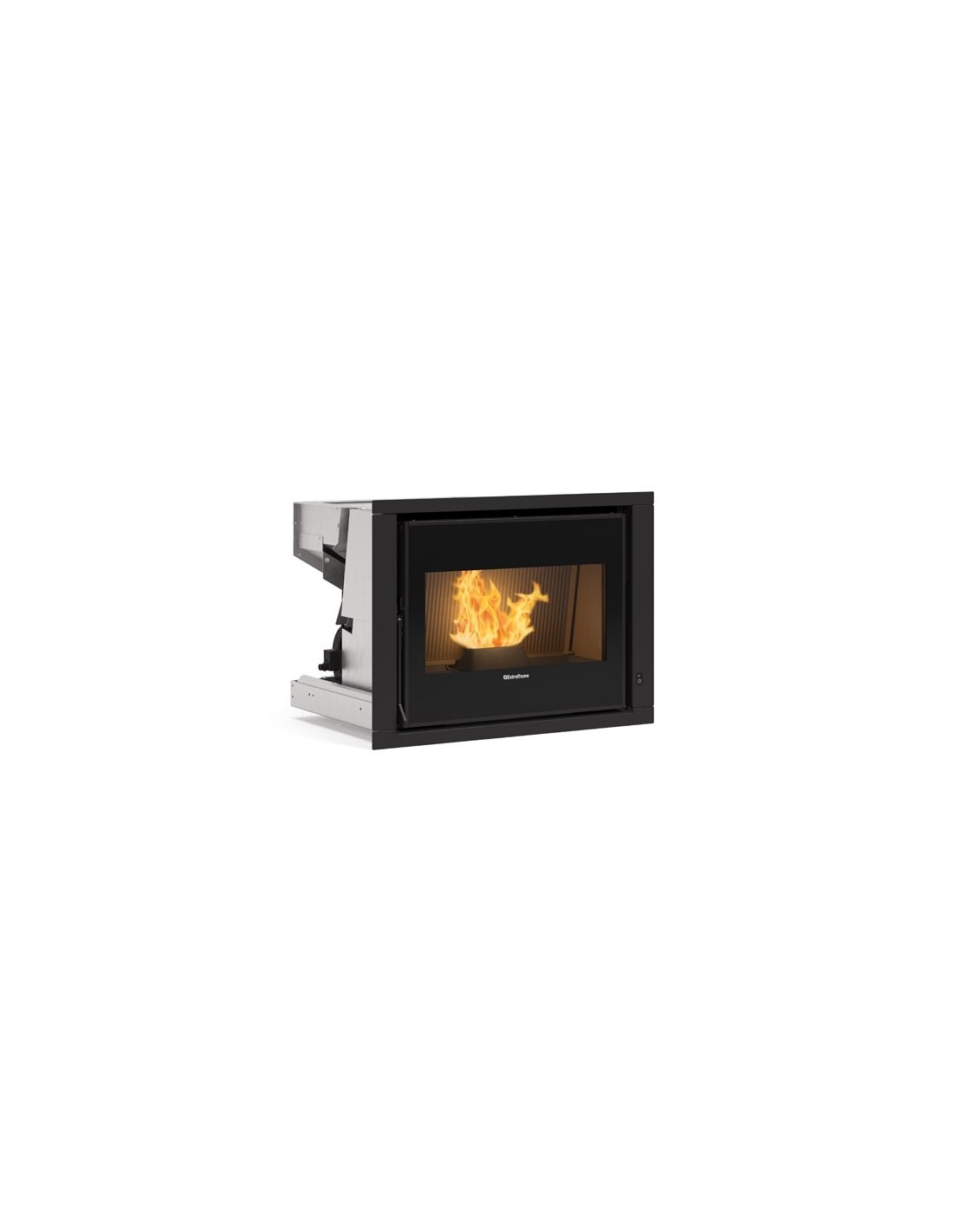

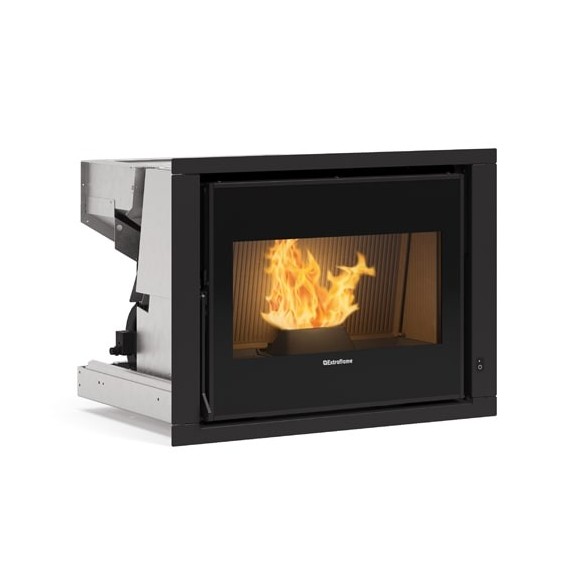

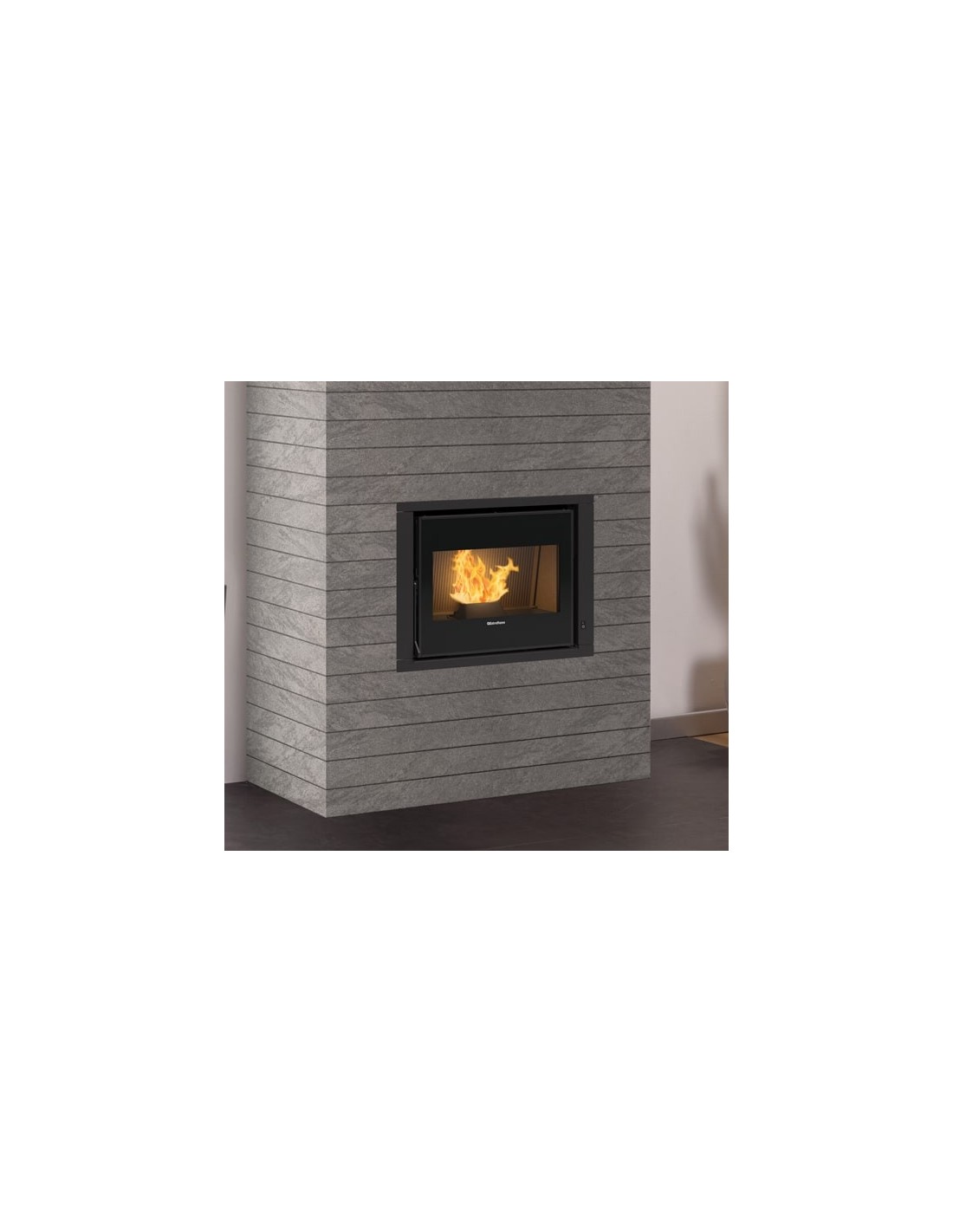

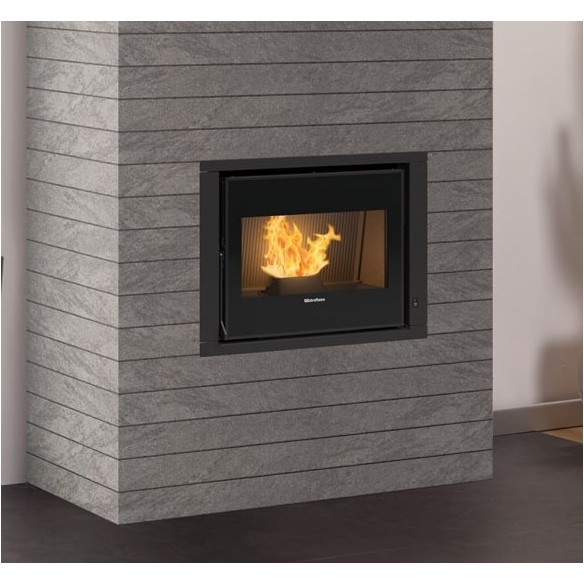

The Comfort P70 Air H49 Pellet Insert represents an ideal solution for recovering existing fireplaces, improving their energy efficiency and living comfort.
The structure is made with a cast iron fire door, firebox, and brazier , materials that guarantee strength, long life, and high resistance to high temperatures. The shell and tube heat exchanger allows for the best use of the heat produced by combustion, achieving an efficiency of between 91.4% and 92.6% .
The front ventilation quickly distributes heat throughout the rooms while the PRO AIR SETUP system allows you to choose three different operating modes:
Automatic room temperature management keeps the desired comfort constant by automatically adjusting the insert's operation.
The Comfort P70 Air H49 is also equipped with:
- pellet level sensor;
- ash compartment;
- simplified system for complete extraction of the insert during maintenance operations;
- lifting handles for easy installation and handling;
- handheld remote control with thermostat function.
For those who wish to integrate the product into their connected home, the Wi-Fi module is available (as an optional) which allows management via the TotalControl 3.0 App and integration with Alexa.
Thanks to its compact size ( 680×480×512 mm without frame ) it is particularly suitable for installations where the available height is limited.
Main features
- Cast iron firebox, hearth and brazier
- Shell and tube heat exchanger
- Front room ventilation
- PRO AIR SETUP System
- Quiet, Regular and Boost modes
- Automatic room temperature management
- Pellet level sensor
- Ash compartment
- Upper flue outlet Ø80 mm
- Simplified extraction system
- Handling handles
- Easy Setup
- Easy Control
- Self-Control
- Remote control with thermostat function
- Wi-Fi integration provision (optional)
- Compatible with TotalControl 3.0 App (optional)
Technical Data
| Characteristic | Value |
|---|
| Dimensions | 680 × 480 × 512 mm |
| Weight | 113 kg |
| Tank capacity | about 11 kg |
| Pellet consumption | 0.7 - 1.8 kg/h |
| Flue pipe diameter | 80 mm top |
| Performance | 91.4 - 92.6% |
| Energy class | A+ |
| Environmental certification | DM186 - 4 Stars |
FAQ
Is the Comfort P70 Air H49 insert suitable for restoring an existing fireplace?
Yes, it is designed to transform a traditional fireplace into a more efficient pellet heating system.
What is the performance of the insert?
The efficiency varies from 91.4% to 92.6%, ensuring high energy efficiency.
How is heat distributed?
The insert uses frontal room ventilation that quickly diffuses heat into the room.
Is it possible to adjust the ventilation?
Yes, thanks to the PRO AIR SETUP system you can choose between Quiet, Regular and Boost modes.
Does the insert have a remote control?
Yes, it is managed via a handheld remote control equipped with a thermostat function.
Is it possible to control it via smartphone?
Yes, by installing the optional Wi-Fi module you can use the TotalControl 3.0 App and integrate control with Alexa.
What is the capacity of the pellet tank?
The tank has a capacity of approximately 11 kg.
What is the energy class?
The insert is classified in Energy Class A+ .
