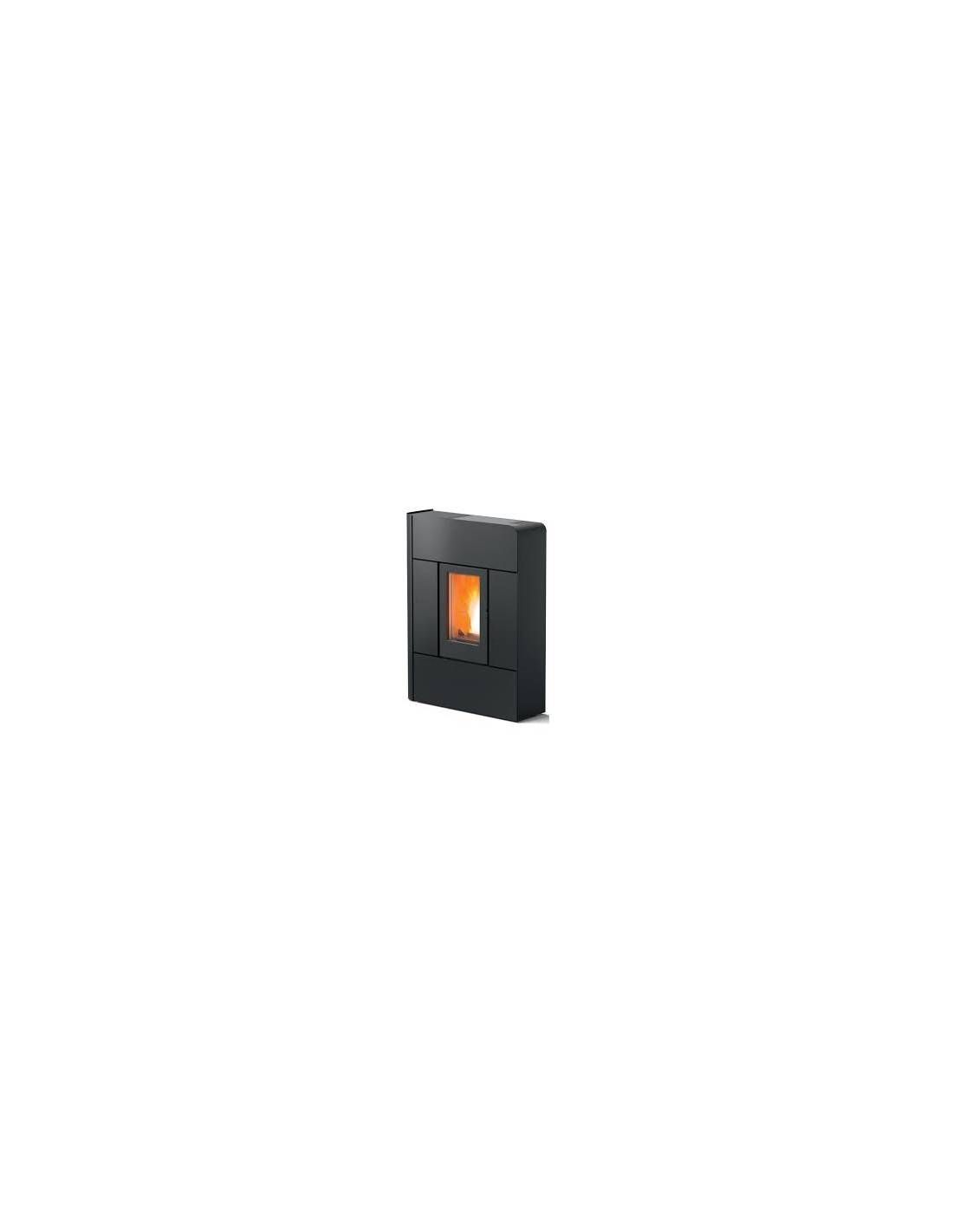

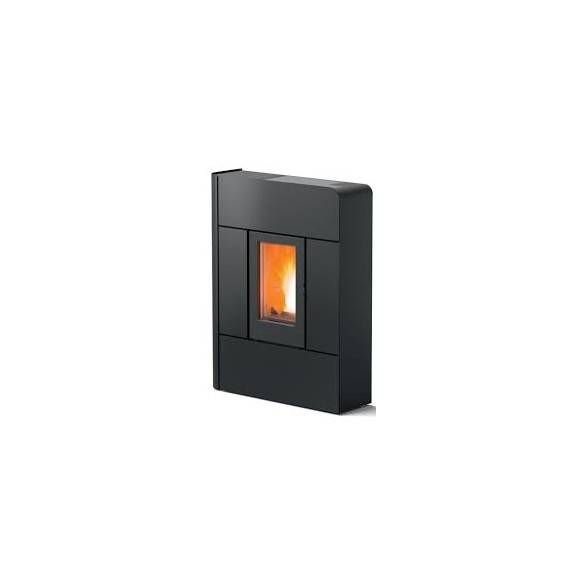

MCZ Raam UP ducted pellet stove! S2 Comfort Air 8 kW

SPACE-SAVING PELLET STOVE, IDEAL FOR CORRIDORS AND SMALL SPACES, DUCTED, ECONOMIC

Raam, with its depth of just 28.2 cm, is a pellet stove perfect for corridors and in general for rooms where every extra centimeter would be too much. It is made entirely of steel, black for the body, White, Bordeaux, Black or Silver for the front with geometric lines. It is part of MCZ's "Easy" line, a complete range with basic finishes and electronics at the right price.

Technical data

• Steel cladding
• Upper smoke outlet
• Energy efficiency class A+
• Nominal heat output 7.8 kW
• Minimum thermal power 2.50 kw
• Maximum efficiency 90.20%
• Yield per min 91.00 %
• Tank capacity 28.00 lt
• Minimum hourly consumption 0.50 kg/h
• Max hourly consumption 1.70 kg/h
• Autonomy at min 36.00 h
• Autonomy at max 11.00 hHeated volume 192 m³ (*)
• Fume outlet diameter 8 cm
• Air duct diameter 6 cmWeight 148 kg (excluding covering)
• Fume temperature 179 ºC
• Remote control: optional (art. 4015012)
