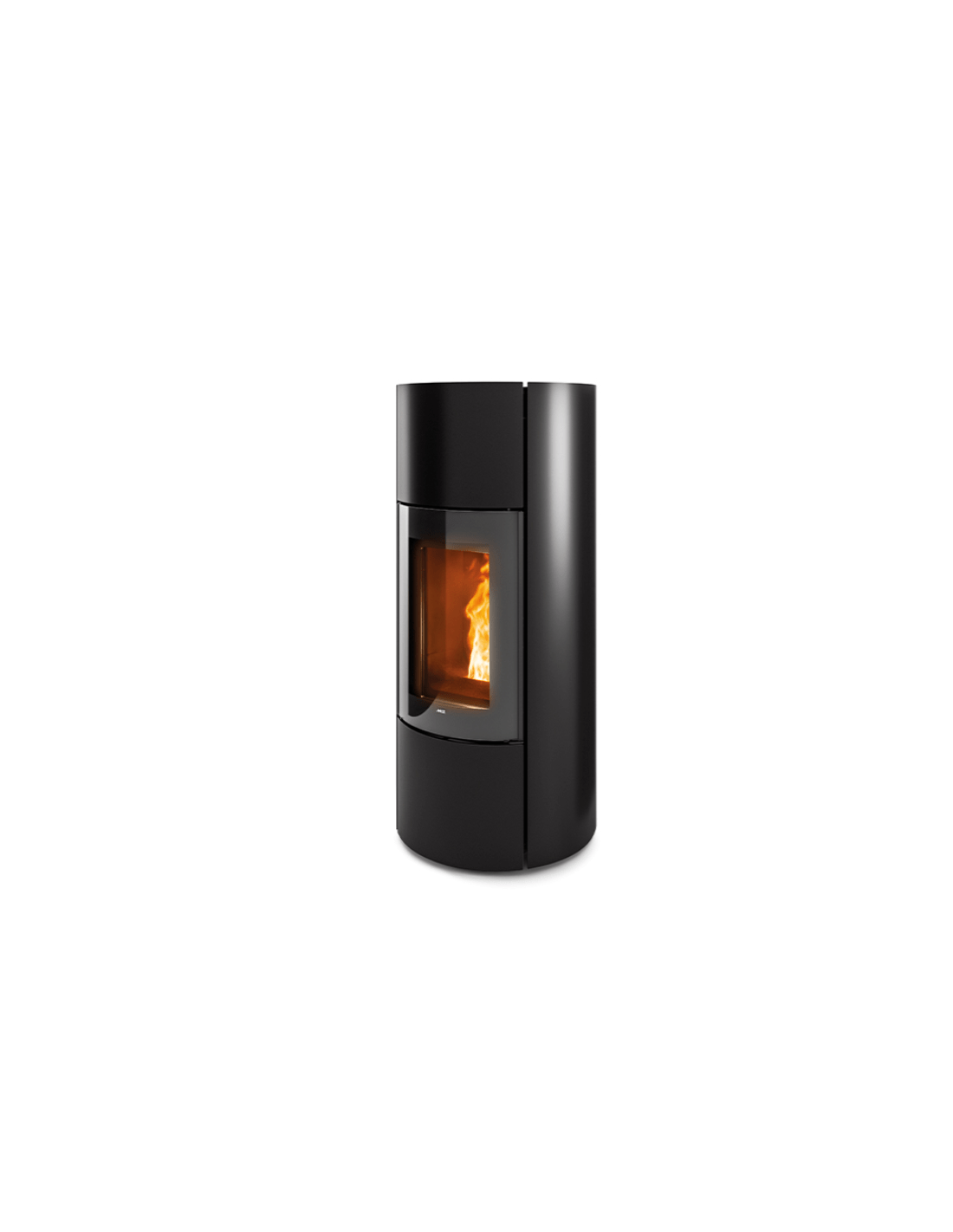

Ductable pellet stove, with a modern design, made of steel
Mood is a round, ductable pellet stove with a black-painted aluminum top and Bronze or Black steel sides. The new redesign enhances and accentuates its minimalist design. It features two independently adjustable fans (room ventilation plus rear ducting) and is 5-star certified with ariaPULITA™ Core technology. Intelligent combustion management with Maestro+ technology .
The heat that goes far
This is a ducted stove that allows you to heat multiple rooms simultaneously. The hot air produced by the stove is transported to other rooms in the house through wall pipes. With the Comfort Air® system, patented by MCZ, the air can reach up to 8 meters and guarantees an outlet temperature of up to 80°C. To complete the Comfort Air kit, MCZ offers particularly elegant and minimalist diffusers, designed for those who appreciate attention to detail, even in heat diffusion. Unlike traditional systems in which the vents must be positioned high up, MCZ diffusers can be installed freely, wherever is most convenient for you, even near the floor.
Ignition speed
Thanks to the new ceramic spark plug, the flame appears in less than three minutes, with a 40% reduction in ignition times and a significant reduction in electricity consumption.
Cleaning autonomy
In all models with Core technology, the amount of ash generated by the stove is truly minimal, and the little unburned ash that remains is eliminated through a self-cleaning brazier that activates automatically. This makes cleaning the firebox a quick and easy task that only needs to be done once a week.
Brushless gearmotor
The brushless gearmotor, made exclusively for MCZ, is used in the pellet loading auger. Compared to traditional gearmotors, it is more powerful, quieter, and less energy-intensive (electricity consumption reduced by 90% compared to traditional motors).
Absolute silence, whenever you want
The No-Air function allows you to completely exclude the forced ventilation of this stove, ensuring maximum silence and all the pleasure of heat diffused throughout the room by natural convection.
Watertight structure as standard
Thanks to a perfectly sealed combustion chamber, this product works by drawing oxygen exclusively from the outside, ensuring lower consumption and perfect thermal comfort in even the most modern homes, even those with energy ratings of Class A, without any risk of smoke emissions into the room.
TECHNICAL DATA:
- Energy efficiency class (A++/G scale) A+
- Seasonal space heating energy efficiency (ηs) 87 %
- Device type (holding) CC50
- Dimensions (LxHxD) 52 x 123 x 52 cm
- Nominal thermal power 8.0 kW
- Minimum thermal power 2.4 kW
- Maximum efficiency 90.4%
- Yield at minimum 92.9%
- Minimum hourly consumption 0.60 kg/h (**)
- Maximum hourly consumption 1.90 kg/h (**)
- Autonomy at minimum 35 h (**)
- Maximum battery life 11 h (**)
- Tank capacity 32 lt / 21 Kg (**)
- Heatable volume with a requirement of 20W/m³ 400 m3 (*)
- Heatable volume with a requirement of 35W/m³ 229 m3 (*)
- Heatable volume with a requirement of 55W/m³ 145 m3 (*)
- Smoke outlet diameter 80 mm
- Weight 145.00 kg
- Smoke temperature 199 °C (***)
- Mass flow rate of fumes 5.4 g/s
- (*) The declared volume represents the number of cubic meters the product can heat based on the average home energy requirement (expressed in W/m3). The values shown are purely indicative; mandatory energy calculations require a dedicated professional assessment.
- (**) Data may vary depending on the fuel used.
- (***) Smoke temperature at the appliance outlet, to be used in the chimney sizing calculation (according to EN 13384-1)
