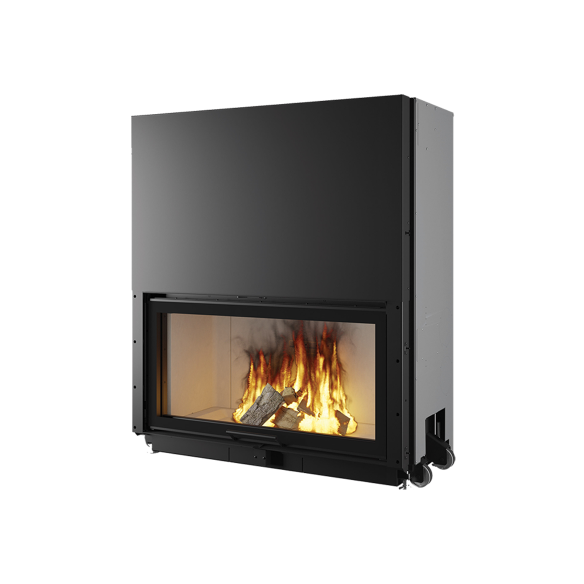

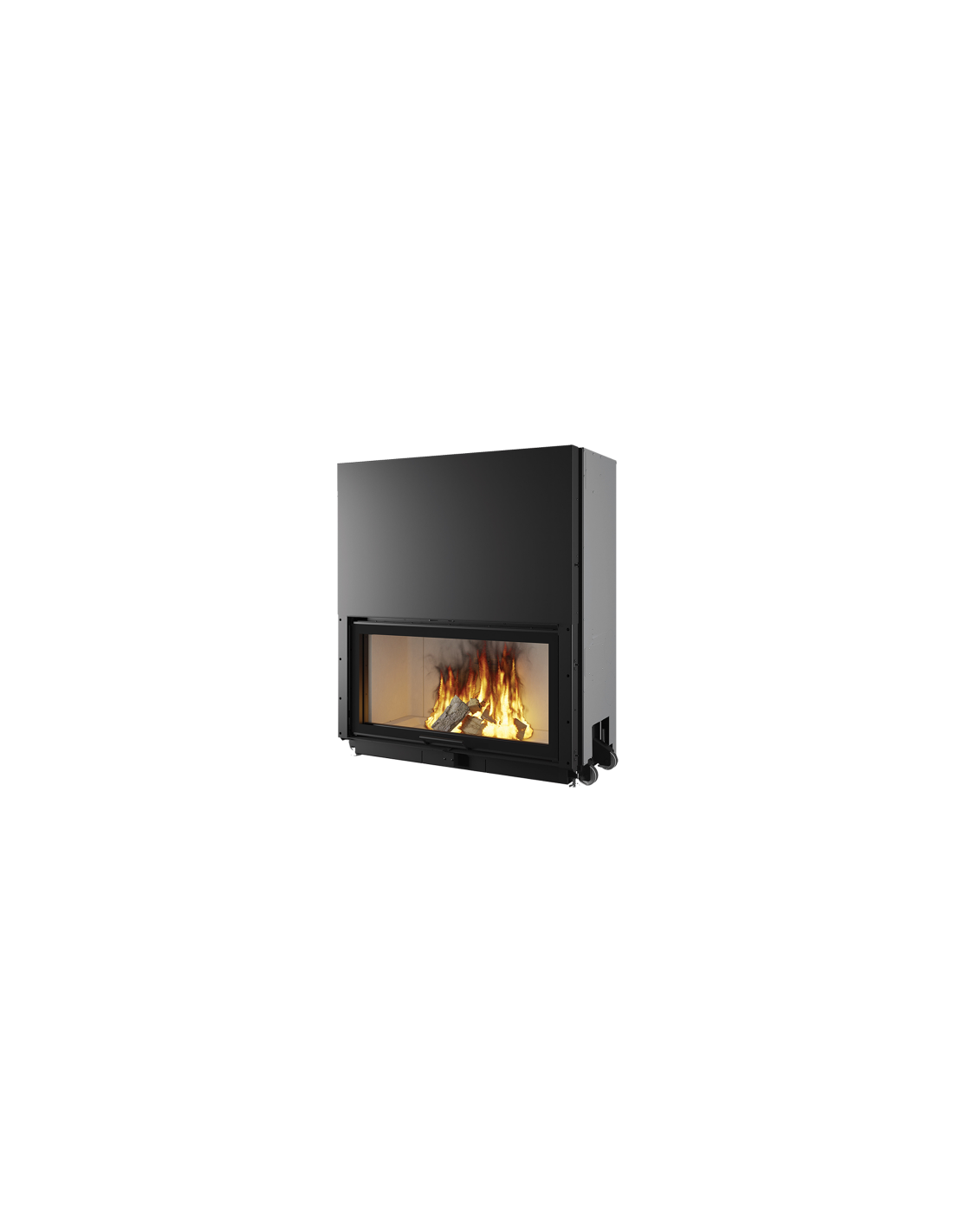

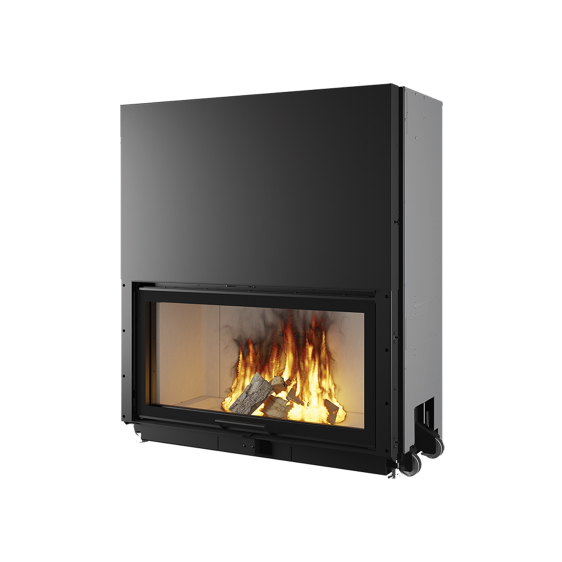

The Edilkamin Windo 100 Evo 15 kW wood-burning fireplace insert is a high-performance solution for those looking for a large wood-burning fireplace with a wide view of the flames. With an 87.2% efficiency, 5-Star environmental rating and the possibility of ducting hot air to up to 4 adjacent rooms using the appropriate optional kits, the Windo 100 Evo is ideal for modern and efficient heating projects.
OPTIONAL COSTS INCLUDED IN THE DESCRIPTION
The Edilkamin Windo 100 Evo is a modern 15 kW wood-burning fireplace insert, designed to provide high heating performance while enhancing the pleasure and atmosphere of a real wood fire.
Its single-sided design and large glass viewing area offer an excellent view of the flames, making the fireplace a true focal point of the room.
With an 87.2% efficiency and a 5-Star environmental rating, the Windo 100 Evo combines technology, performance and design in a single wood-burning fireplace insert.
The Windo 100 Evo delivers 15 kW of useful heat output, making it particularly suitable for those looking for a powerful wood-burning fireplace capable of generating a significant amount of heat.
Edilkamin indicates a heating capacity of up to approximately 390 m³. This figure is indicative and depends on the characteristics of the building, insulation level, climate zone and correct system design.
For this reason, the required heating output should always be assessed according to the specific characteristics of the property.
One of the main advantages of the Windo 100 Evo is the possibility of distributing hot air to adjacent rooms.
With the appropriate Edilkamin hot-air ducting kits, hot air can be distributed to up to 4 adjacent rooms, allowing the heat generated by the fireplace to be used beyond the room where the fireplace insert is installed.
This feature makes the Windo 100 Evo an interesting solution for larger homes and heating projects where heat distribution to several rooms is required.
The Windo 100 Evo features a large firebox measuring approximately 94 x 31 x 45 cm, designed to provide an impressive view of the fire.
The internal Ecokeram lining, available in white or black, enhances the appearance of the firebox and can be combined with different fireplace surround designs.
The large glass surface makes the fireplace particularly suitable for modern and contemporary installations, including flush-floor installations.
The Windo 100 Evo door can be opened using both a lift-up sliding mechanism and a hinged opening system.
This design provides practical access to the firebox and facilitates cleaning and maintenance operations.
The integrated glass-cleaning system also helps maintain a clear view of the flames during operation.
The fireplace insert features a secondary combustion system, designed to promote more complete combustion of the gases produced during wood burning.
The Windo 100 Evo is also classified with a 5-Star environmental rating, according to the manufacturer's specifications.
Using properly seasoned firewood and operating the fireplace correctly are essential for achieving optimal performance.
The Edilkamin Windo 100 Evo is designed for flush-floor installation, making it particularly suitable for contemporary architectural projects.
The fireplace insert can be integrated into a wide range of fireplace surrounds, allowing for a customised solution based on the style of the home and the overall fireplace design.
Choosing the Windo 100 Evo means selecting a wood-burning fireplace insert designed to combine performance, aesthetics and flexible heat distribution.
A high useful heat output for appropriately sized residential heating applications.
The declared efficiency is 87.2%.
The model is classified with a 5-Star environmental rating, according to the manufacturer's specifications.
With the appropriate optional accessories, hot air can be distributed to up to 4 adjacent rooms.
The large firebox provides an impressive view of the flames and makes the fireplace a central feature of the room.
A particularly attractive solution for modern and contemporary fireplace projects.
The lift-up and hinged door system combines aesthetics, convenience and easy access to the firebox.
Available with a white or black Ecokeram internal lining.
| Specification | Windo 100 Evo |
|---|---|
| Brand | Edilkamin |
| Model | Windo 100 Evo |
| Fuel | Wood |
| Type | Single-sided fireplace insert |
| Useful heat output | 15 kW |
| Efficiency | 87.2% |
| Environmental rating | 5 Stars |
| Wood consumption | 3.7 kg/h |
| Indicative heated volume | Up to 390 m³ |

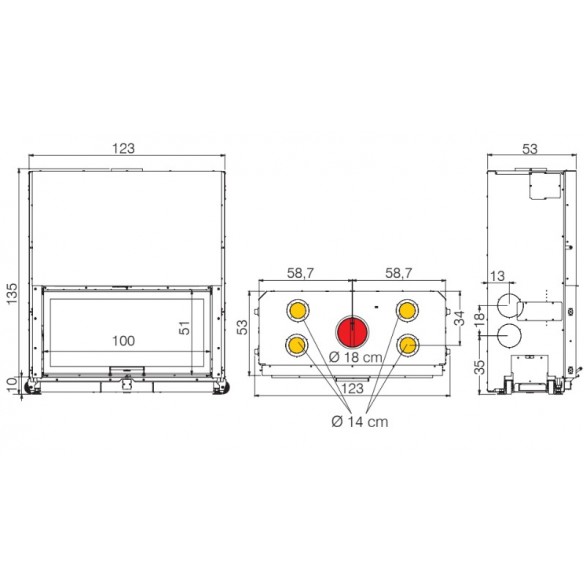

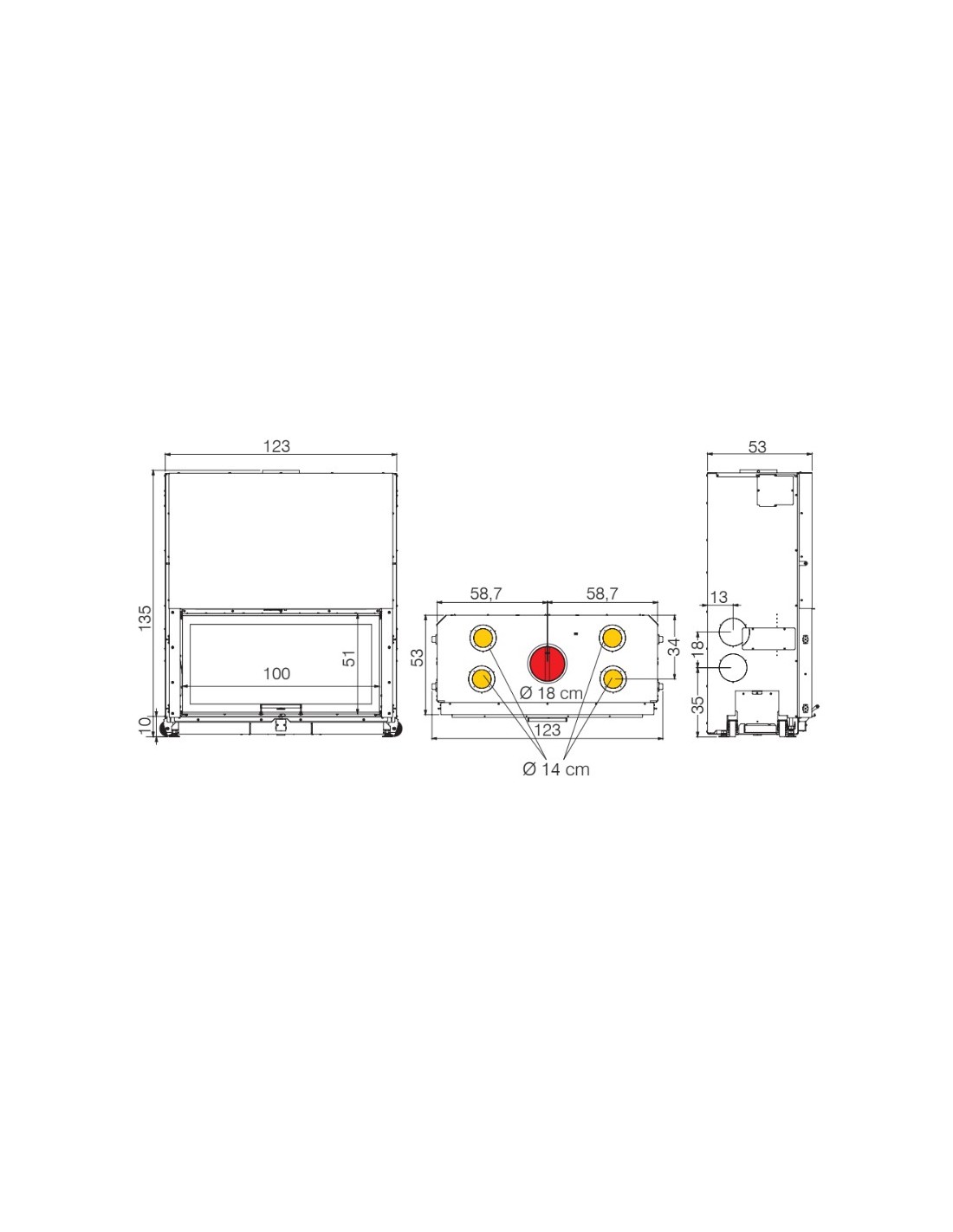

| Product dimensions | 123 x 53 x 135 cm |
| Firebox dimensions | 94 x 31 x 45 cm |
| Flue outlet | Ø 18 cm |
| Weight | 363 kg |
| Firebox lining | Ecokeram |
| Hot-air ducting | Up to 4 adjacent rooms with optional kit |
| Door opening | Lift-up and hinged |
| Installation | Flush with the floor |
Several accessories and configurations are available for the Edilkamin Windo 100 Evo, depending on the installation project.
Main options include:
The availability and compatibility of accessories should be checked according to the selected configuration.
| Optional Code | Description | Price incl. VAT |
|---|---|---|
| 1110130 | Mouth surround frame 102x55h cm | €179.00 |
| 1110220 | Counter-thickness template | €183.00 |
| 54210 | Air outlet grille – anodized aluminium R1 | €78.00 |
| 86270 | Air outlet grille – anodized aluminium R2 | €69.00 |
| 1112100 | Air outlet grille – matt white B1 | €79.00 |
| 1112110 | Air outlet grille – matt white B3 | €75.00 |
| 282010 | Aluminium tube Ø12.5 – 1.5 m | €32.00 |
| 282030 | Aluminium tube Ø12.5 – 3 m | €43.00 |
| 76770 | Aluminium tube Ø14 – 1.5 m | €35.00 |
| 76790 | Aluminium tube Ø14 – 3 m | €45.00 |
| 1112450 | Flue connector Ø18 M → Ø20 F | €50.00 |
| 1112000 | Side ventilation kit | €840.00 |
| 149210 | Aluminium tube Ø20 – 1.5 m | €39.00 |
| 149230 | Aluminium tube Ø20 – 3 m | €55.00 |
| 803490 | AIR DIFFUSER KIT with 1 fan | €530.00 |
| 804280 | 3-m extension kit for welded Ø6.5 cm tube | €69.00 |
| 803540 | Additional control unit for fan distance control | €235.00 |
The Windo 100 Evo wood-burning fireplace insert is particularly suitable for customers looking for:
The installation of a wood-burning fireplace insert must be carefully designed, taking into account the chimney, combustion air supply, safety clearances, fireplace surround and building characteristics.
The Windo 100 Evo must be installed according to the manufacturer's instructions and by qualified professionals. The compatibility of the chimney and the overall heating system should be verified before installation.
The Edilkamin Windo 100 Evo is a 15 kW single-sided wood-burning fireplace insert, designed for air heating and integration into different types of fireplaces and surrounds.
The Windo 100 Evo has a 15 kW useful heat output.
The declared efficiency of the Windo 100 Evo is 87.2%.
Edilkamin indicates a heating capacity of up to approximately 390 m³. This figure is indicative and depends on the building characteristics and correct system sizing.
Yes. With the appropriate optional kits, hot air can be ducted to up to 4 adjacent rooms.
Yes. It is a wood-burning fireplace insert designed to be integrated into a fireplace surround and used as an air-heating system.
The Windo 100 Evo features an upper flue outlet with a diameter of 18 cm.
Yes. The door features both a lift-up sliding opening and a hinged opening.
Yes. The fireplace insert is equipped with a glass-cleaning system.
Yes. The Windo 100 Evo has a 5-Star environmental rating, according to the manufacturer's specifications.
The overall dimensions of the fireplace insert are approximately 123 cm wide, 53 cm deep and 135 cm high.
The declared weight is approximately 363 kg.
Yes. The model is designed for flush-floor installation, making it particularly suitable for modern architectural projects.
