MCZ STEEL CASE wood-burning stove

Steel wood stove

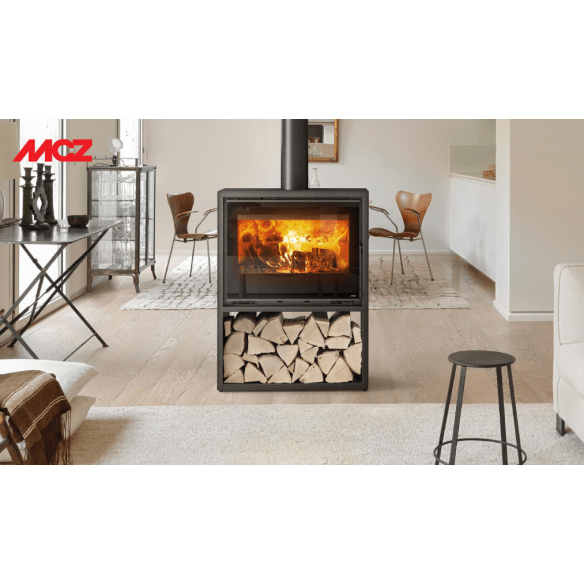

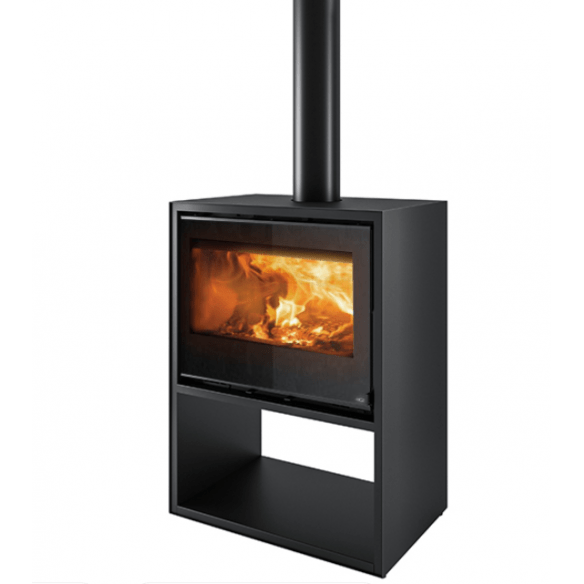

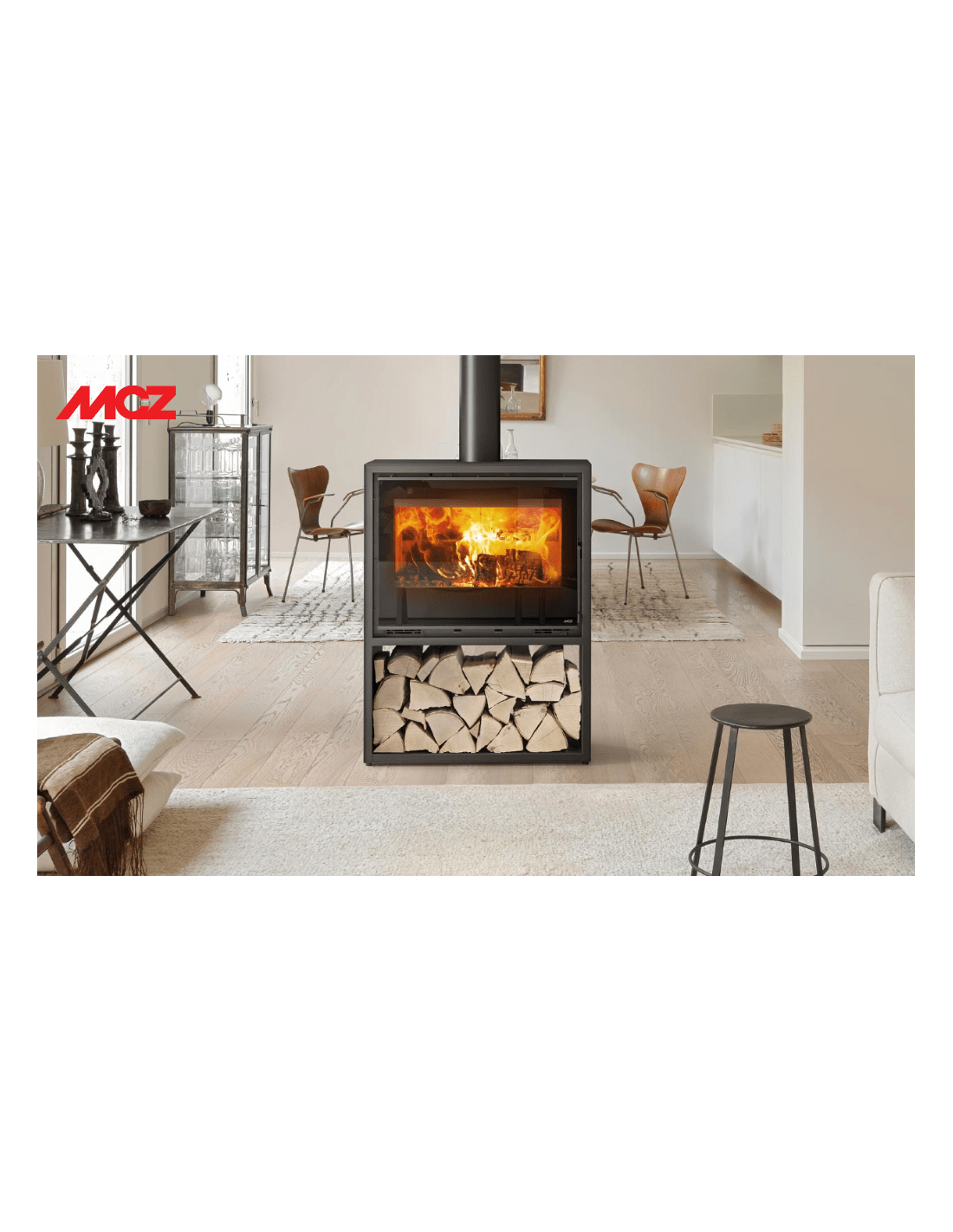

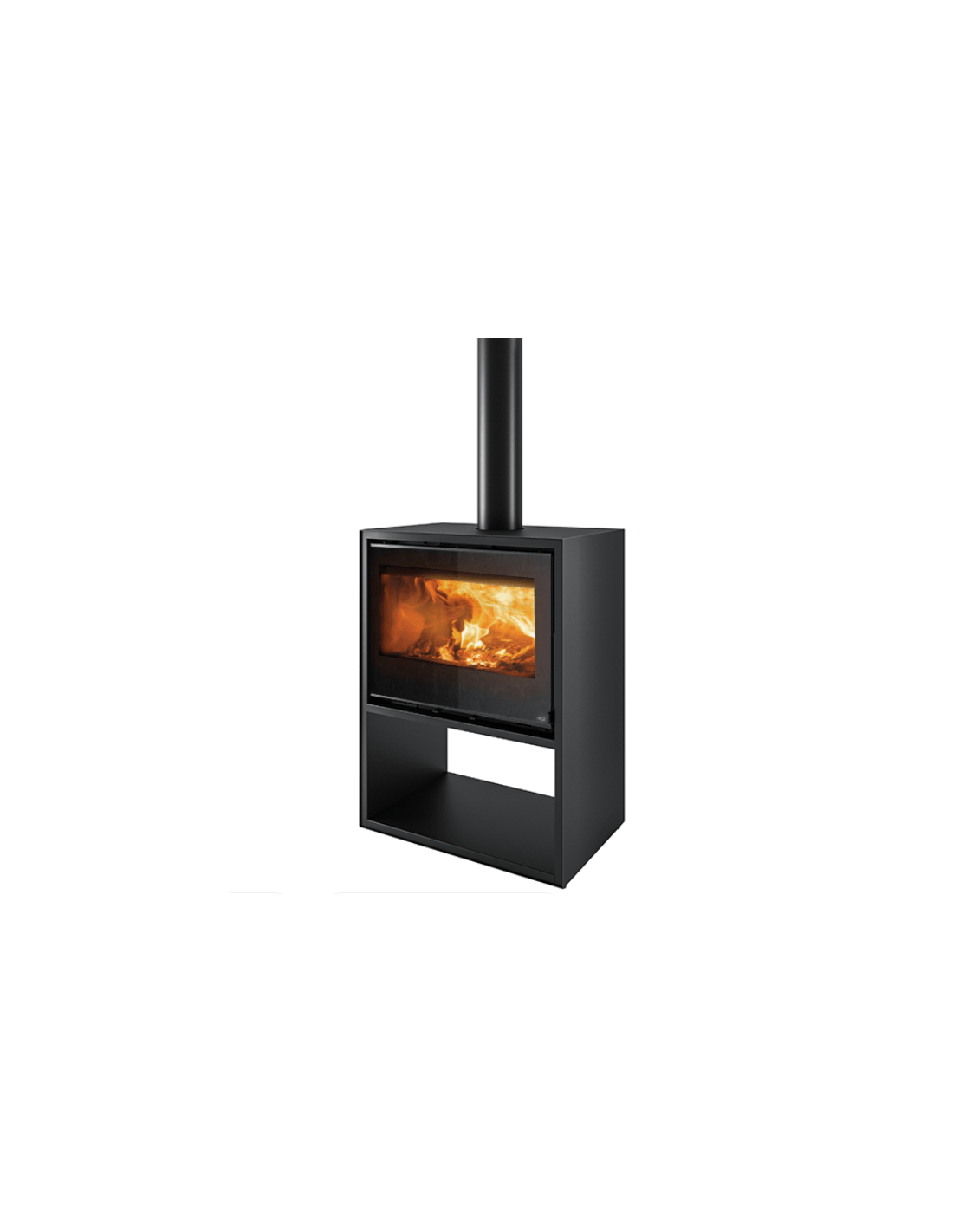

Steel Case is the new wood-burning stove from MCZ. With a minimalist design, it is made of black painted steel with a lower wood compartment. The upper flue outlet and the design of the structure allow for maximum installation versatility. Equipped with ventilation to ensure even heat distribution. Available in the 60 version, with 6.6 kW power, and the 70 version with 8.8 kW power. Certified 5 stars ariaPULITA, it is eligible for the Conto Termico (Thermal Account) and all tax breaks.

Self-cleaning fireplace in Alutec®

Alutec® is the exclusive material developed and patented by MCZ for all its fireplaces. Thanks to a patented formula with a high alumina content, achieved at a temperature of 300°C, a chemical reaction ensures the self-cleaning of the fireplace. Its color, always light at high temperatures, gives the flame an unsurpassed brilliance, enhancing its aesthetic appeal.

INSTALLATION VERSATILITY

The minimalist design of the structure, even at the rear, ensures maximum versatility in positioning. The stove can be placed against a wall or in the center of the room, giving you the freedom to create unique and original furnishing compositions.

Simplified cleaning

Cleaning is made easy thanks to the self-cleaning firebox made of self-whitening refractory material, which makes the flame particularly visible and bright. The perfect calibration of the cleaning air also keeps the glass perfectly clear and free of ash residue. The particularly spacious ash drawer is ideal for collecting unburned ash without having to clean the firebox daily.

TECHNICAL data:

STEEL CASE 70 5S

• Energy efficiency class (A++/G scale) A+
• Seasonal space heating energy efficiency (ηs) 75 %
• Device type (holding) BE
• Dimensions (LxHxD) 73.5 x 97.9 x 49.4 cm
• Nominal thermal power 9.1 kW
• Minimum thermal power 5.4 kW
• Maximum yield 85.3%
• Yield at minimum 85.0%
• Minimum hourly consumption 1.40 kg/h (**)
• Maximum hourly consumption 2.40 kg/h (**)
• Heatable volume with 20W/m³ requirement 455 m3 (*)
• Heatable volume with a requirement of 35W/m³ 260 m3 (*)
• Heatable volume with a requirement of 55W/m³ 165 m3 (*)
• Smoke outlet diameter 150 mm
• Weight 193.00 kg
• Smoke temperature 277 °C (***)
• Mass flow rate of fumes 6.4 g/s

TECHNICAL DATA:

STEEL CASE 70

• Energy efficiency class (A++/G scale) A+
• Seasonal space heating energy efficiency (ηs) 75 %
• Device type (holding) BE
• Dimensions (LxHxD) 73.5 x 97.9 x 49.4 cm
• Nominal thermal power 8.8 kW
• Minimum thermal power 4.2 kW
• Maximum yield 85.3%
• Yield at minimum 80.2%
• Minimum hourly consumption 1.20 kg/h (**)
• Maximum hourly consumption 2.40 kg/h (**)
• Heatable volume with a requirement of 20W/m³ 440 m3 (*)
• Heatable volume with a requirement of 35W/m³ 251 m3 (*)
• Heatable volume with a requirement of 55W/m³ 160 m3 (*)
• Smoke outlet diameter 150 mm
• Weight 193.00 kg
• Smoke temperature 262 °C (***)
• Mass flow rate of fumes 6.8 g/s

TECHNICAL DATA:

STEEL CASE 60 5S

• Energy efficiency class (A++/G scale) A+
• Seasonal space heating energy efficiency (ηs) 75 %
• Device type (holding) BE
• Dimensions (LxHxD) 63.7 x 92 x 49.4 cm
• Nominal thermal power 6.7 kW
• Minimum thermal power 3.5 kW
• Maximum efficiency 85.2%
• Yield at minimum 80.0%
• Minimum hourly consumption 1.00 kg/h (**)
• Maximum hourly consumption 1.70 kg/h (**)
• Heatable volume with 20W/m³ requirement 335 m3 (*)
• Heatable volume with a requirement of 35W/m³ 191 m3 (*)
• Heatable volume with a requirement of 55W/m³ 122 m3 (*)
• Smoke outlet diameter 150 mm
• Weight 156.00 kg
• Smoke temperature 234 °C (***)
• Mass flow rate of fumes 4.7 g/s

TECHNICAL DATA:

STEEL CASE 60

• Energy efficiency class (A++/G scale) A+
• Seasonal space heating energy efficiency (ηs) 75 %
• Device type (holding) BE
• Dimensions (LxHxD) 63.7 x 92 x 49.4 cm
• Nominal thermal power 6.6 kW
• Minimum thermal power 4.5 kW
• Maximum yield 85.1%
• Yield at minimum 86.7%
• Minimum hourly consumption 1.20 kg/h (**)
• Maximum hourly consumption 1.80 kg/h (**)
• Heatable volume with 20W/m³ requirement 330 m3 (*)
• Heatable volume with a requirement of 35W/m³ 189 m3 (*)
• Heatable volume with a requirement of 55W/m³ 120 m3 (*)
• Smoke outlet diameter 150 mm
• Weight 156.00 kg
• Smoke temperature 240 °C (***)
• Mass flow rate of fumes 5.1 g/s

(*) The declared volume represents the number of cubic meters the product can heat based on the average home energy requirement (expressed in W/m3). The values shown are purely indicative; mandatory energy calculations require a dedicated assessment by a professional.

(**) Data may vary depending on the fuel used.

(***) Smoke temperature at the appliance outlet, to be used in the chimney sizing calculation (according to EN 13384-1)
