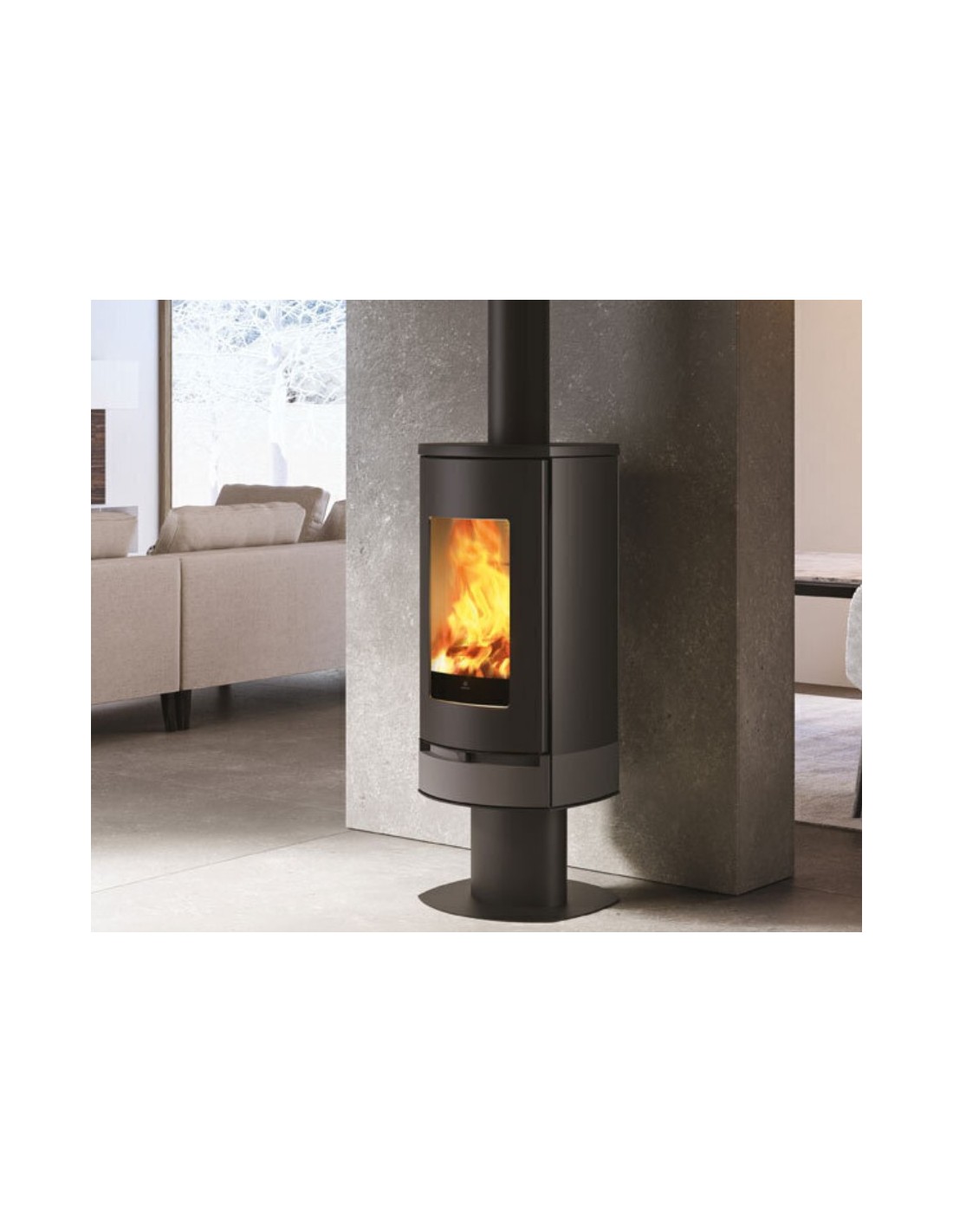

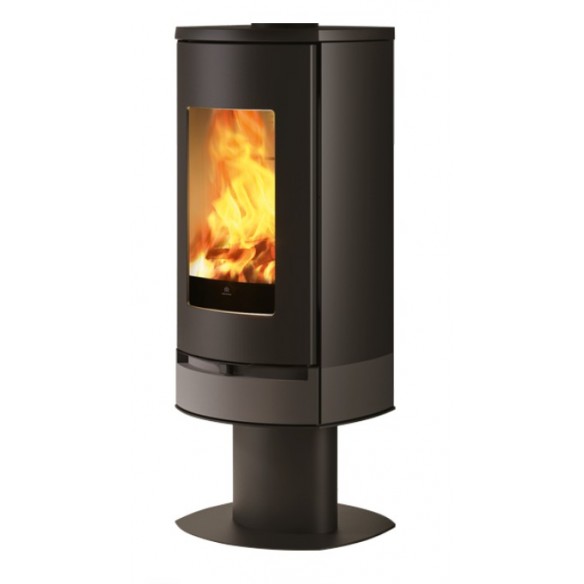

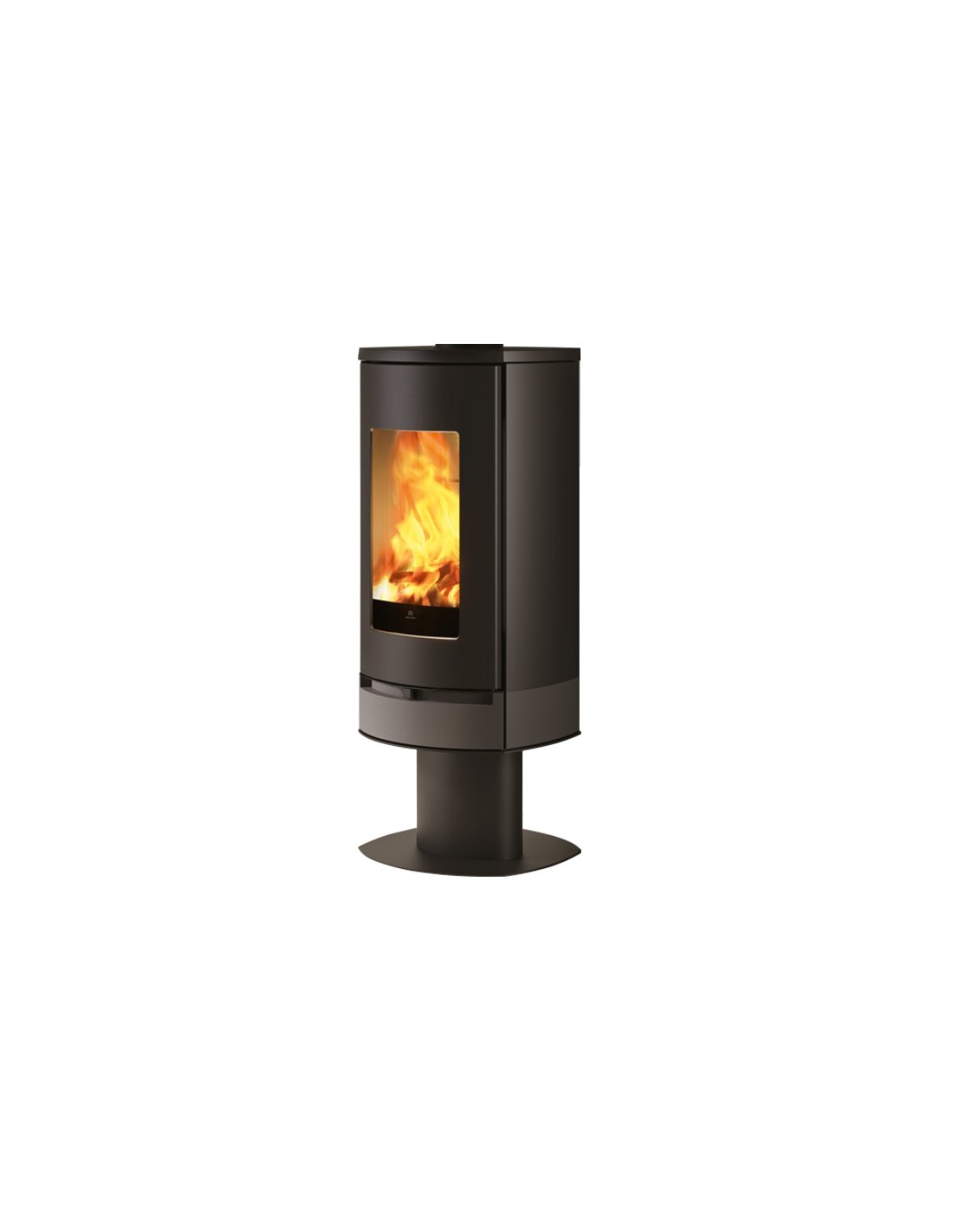

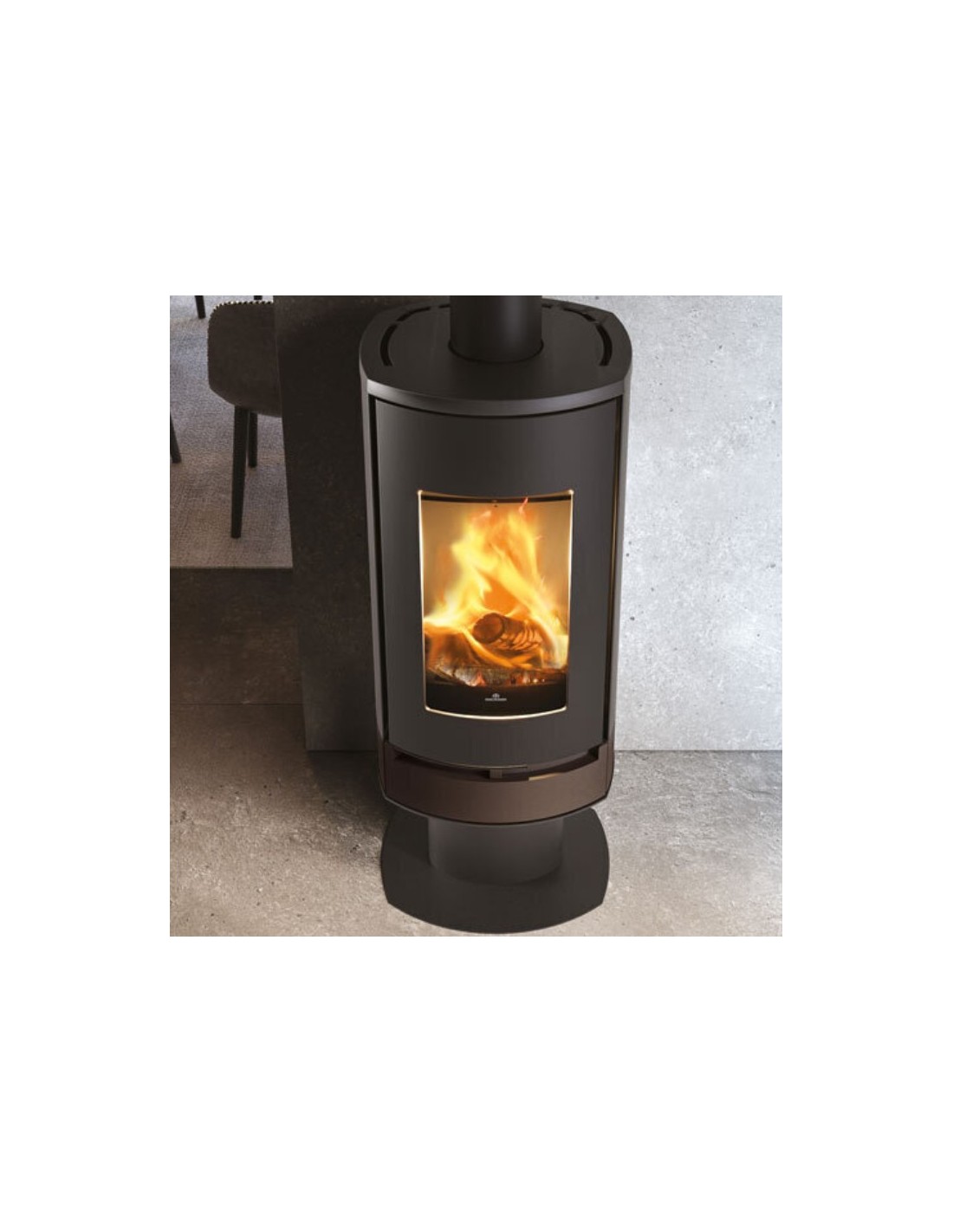

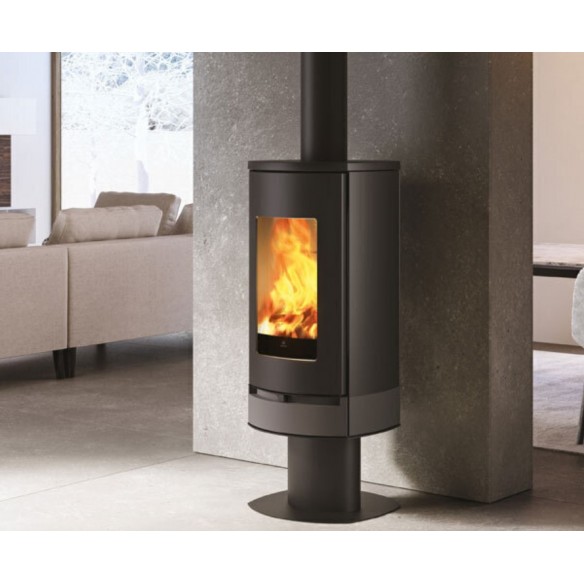

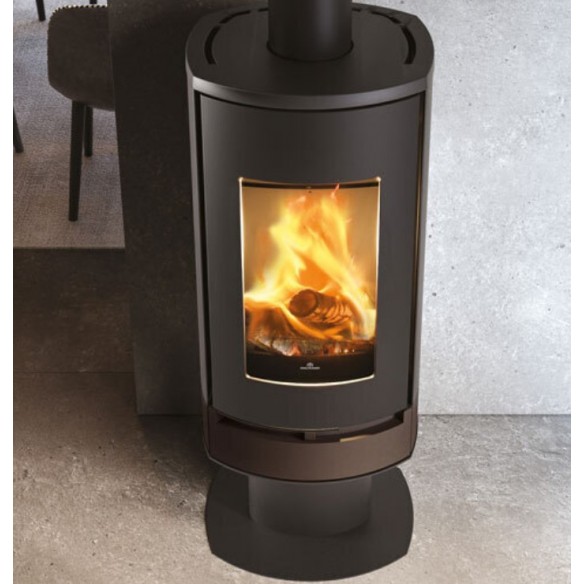

The Edilkamin Code J Evo is a contemporary wood burning stove designed to combine elegant aesthetics, efficient heating and ease of use.

Its most distinctive feature is the elegant pedestal, which raises the stove from the floor and gives it a distinctive and sophisticated appearance. The elevated position also enhances the visibility of the fire, making the stove an attractive focal point for the living space.

The combustion chamber is made from vermiculite, a highly heat-resistant material designed for use inside the firebox.

The Code J Evo operates using natural convection, allowing heat to circulate naturally throughout the room without the need for forced ventilation. This makes the stove particularly suitable for living rooms and other areas where quiet operation is important.

The combustion air supply is manually adjustable, allowing the user to control the combustion according to operating requirements.

The stove is equipped with an automatic door closure with shock absorber, providing smooth and convenient operation.

The firebox can accommodate logs up to 33 cm vertically and 25 cm horizontally, offering practical flexibility when loading firewood.

The Ø15 cm flue outlet can be positioned either at the top or at the rear of the stove, providing greater flexibility when planning the installation.

The Code J Evo is available in three finishes:

• Black steel
• Grey steel
• Bronze steel

Optional equipment includes a cast iron combustion chamber, an AIR DIFFUSER accessory and accessories for installation with ventilated air vents.

Main Features

• Edilkamin wood burning stove
• Model: Code J Evo
• Elegant raised pedestal
• Modern contemporary design
• Useful heat output: 8.1 kW
• Efficiency: 87.1%
• Heating volume: up to 210 m³
• Natural convection
• Quiet operation without forced ventilation
• Vermiculite combustion chamber
• Automatic door closure with shock absorber
• Manual combustion air regulation
• Ø15 cm flue outlet
• Top or rear flue connection
• Ø10 cm external air intake
• Logs up to 33 cm vertically
• Logs up to 25 cm horizontally
• Black, grey or bronze steel finishes
• Optional cast iron combustion chamber
• AIR DIFFUSER optional accessory
• Optional accessories for ventilated air vents

Technical Data

The technical specifications above are taken from the official English Edilkamin Code J Evo product page.

Available Finishes

The Edilkamin Code J Evo is available in three steel finishes.

Black Steel

A versatile finish suitable for contemporary, minimalist and industrial-style interiors.

Grey Steel

A neutral and modern finish that can easily complement a wide range of interior styles.

Bronze Steel

A warmer and more distinctive finish designed to add a decorative touch to the stove.

Edilkamin officially lists Black Steel, Grey Steel and Bronze Steel as the available models for the Code J Evo.

Optional Accessories

Cast Iron Combustion Chamber

A cast iron combustion chamber is available as an optional configuration € 310,00

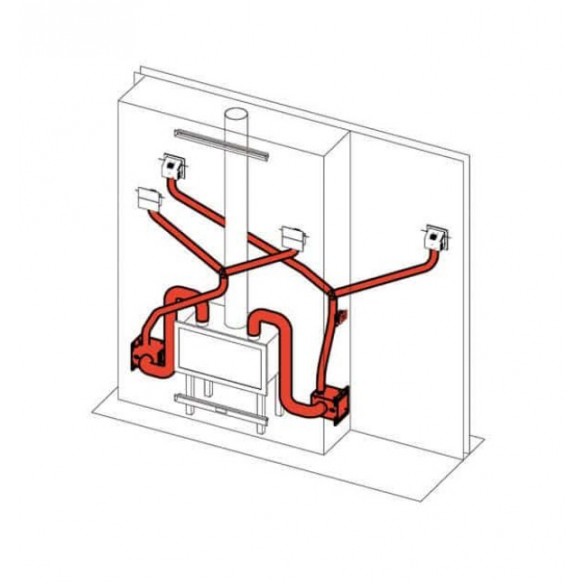

AIR DIFFUSER

The Code J Evo can be equipped with the optional AIR DIFFUSER accessory, designed for installations requiring additional heat distribution solutions.

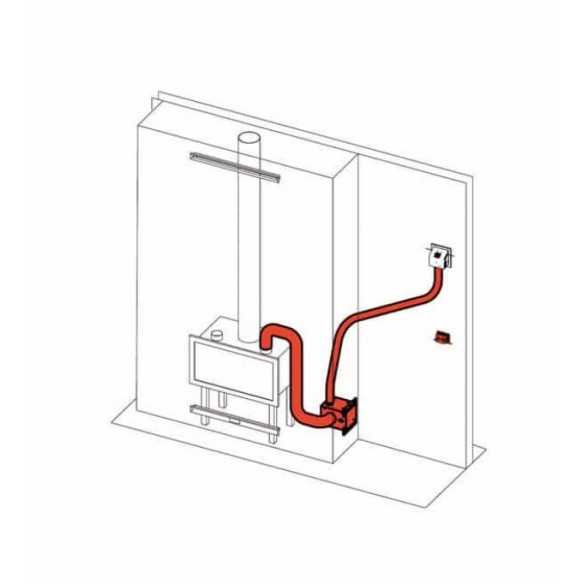

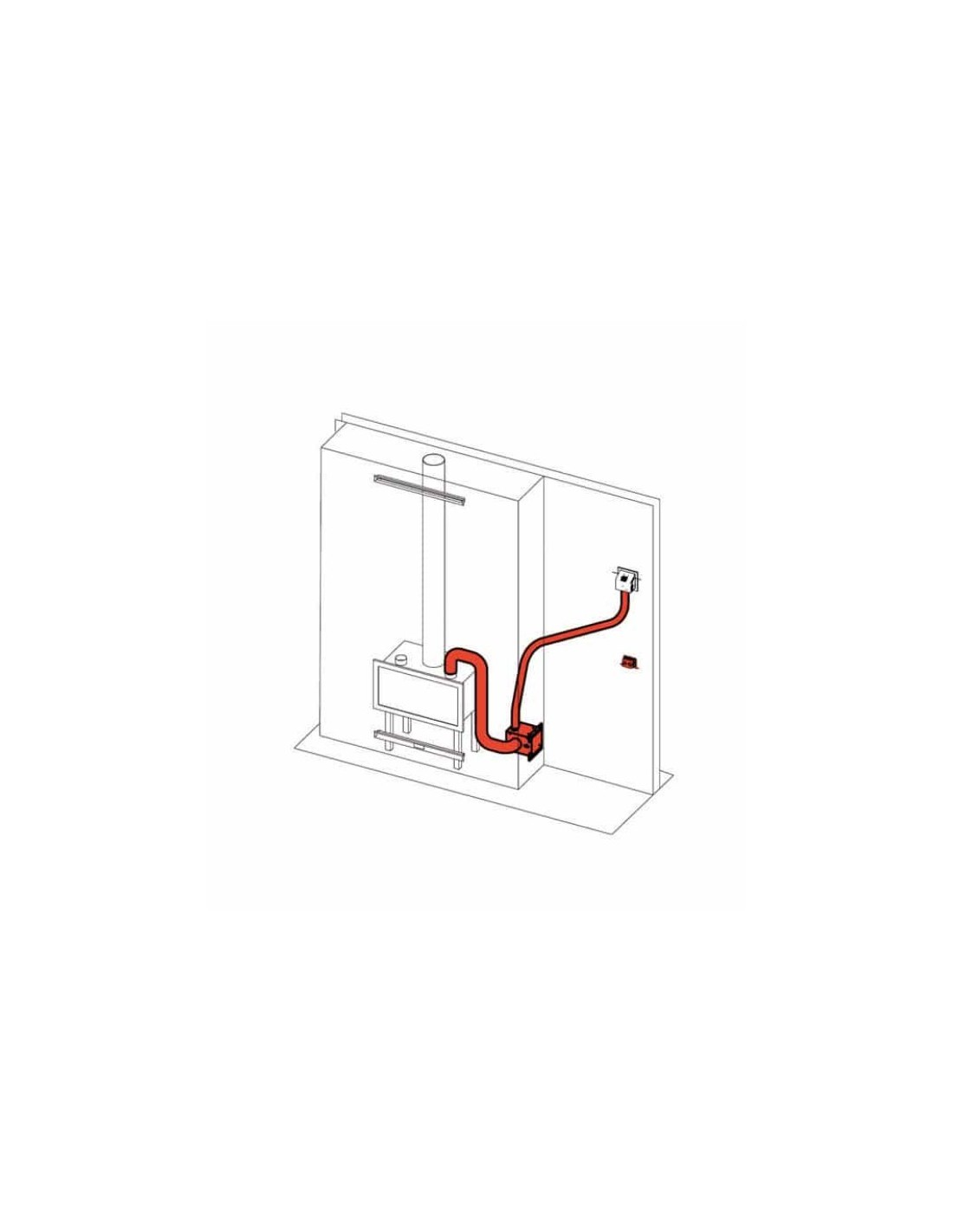

• Single-fan kit code: 803490 € 530,00

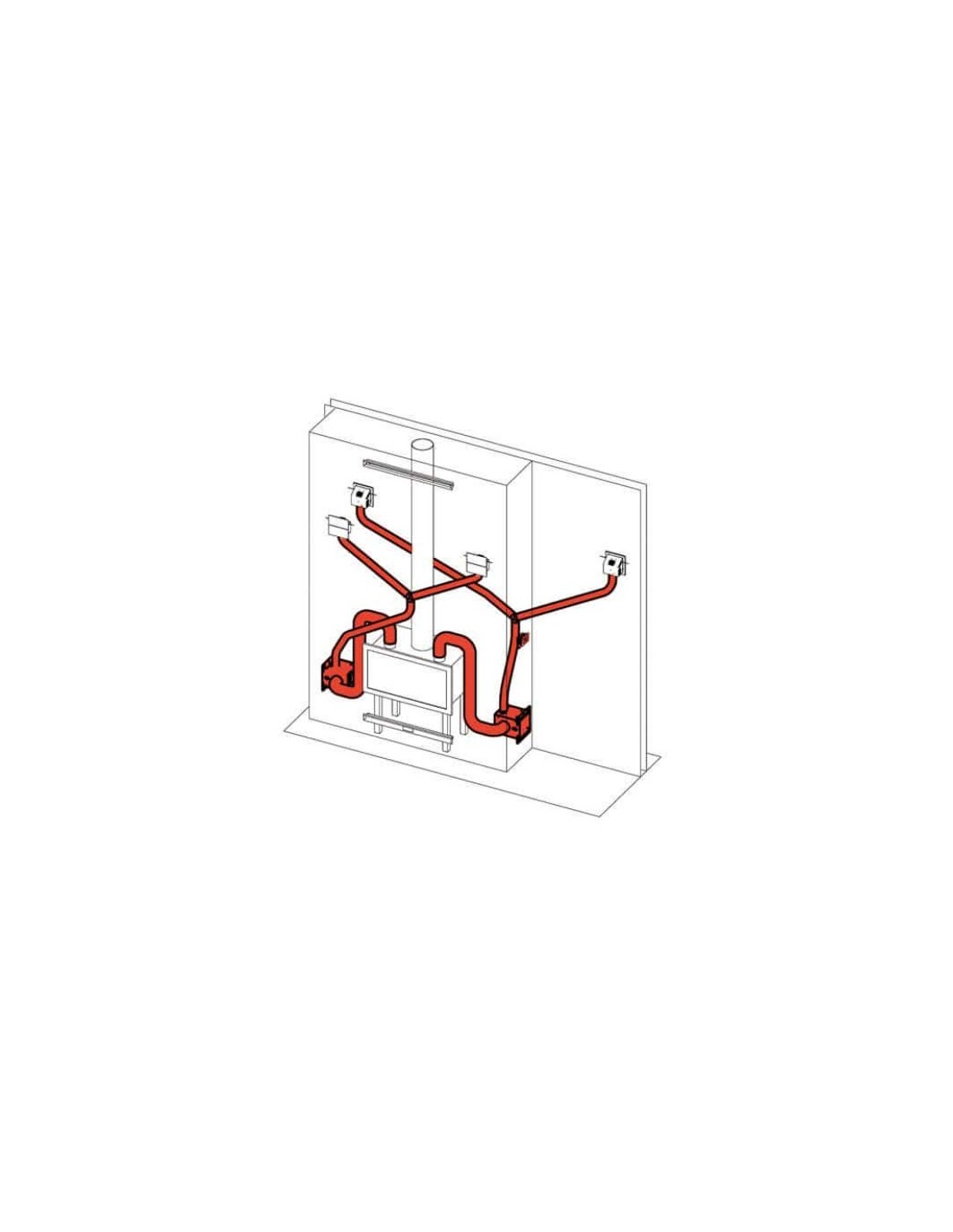

• Dual-fan kit code: 803590 € 845,00

Ventilated Air Vents

Optional accessories are available for installation with ventilated air vents, allowing the heating system to be configured according to the specific installation requirements.

The above options are listed by Edilkamin on the official Code J Evo product page.

Why Choose the Edilkamin Code J Evo?

Elegant Pedestal Design

The raised pedestal gives the Code J Evo a distinctive contemporary appearance while enhancing the view of the fire.

Natural Convection

The stove uses natural convection, allowing heat to circulate naturally without forced ventilation.

Quiet Operation

Because the standard heat distribution works through natural convection, the stove can provide a particularly quiet heating experience without the noise associated with a fan.

Efficient Wood Heating

With a useful heat output of 8.1 kW and an 87.1% efficiency, the Code J Evo offers an effective solution for heating residential spaces.

Flexible Flue Installation

The Ø15 cm flue outlet can be connected at the top or at the rear, providing greater flexibility during installation.

Practical Log Size

The firebox accommodates logs up to 33 cm vertically and 25 cm horizontally, making everyday loading convenient.

Easy Combustion Control

The combustion air can be adjusted manually, allowing the user to regulate the fire according to operating conditions.

Automatic Door Closure

The automatic door closure with shock absorber provides smooth and convenient operation.

Choice of Finishes

Black, grey and bronze steel finishes allow the stove to be matched to different interior styles.

Suitable Applications

The Edilkamin Code J Evo is particularly suitable for:

• Living rooms
• Open-plan living areas
• Modern homes
• Detached houses
• Country houses
• Holiday homes
• Chalets
• Residential interiors
• Spaces up to approximately 210 m³

Edilkamin specifies a heating volume of up to 210 m³, based on the stated insulation conditions. Actual heating performance depends on factors such as building insulation, room height, external temperature, firewood quality and installation conditions.

FAQ – Frequently Asked Questions

What is the heat output of the Edilkamin Code J Evo?

The official Edilkamin technical data specifies a useful heat output of 8.1 kW.

What is the efficiency of the Code J Evo?

The stated efficiency is 87.1%.

How much wood does the stove consume?

The official fuel consumption is 2 kg of wood per hour.

How much space can the Code J Evo heat?

Edilkamin specifies a heating volume of up to 210 m³, subject to the stated insulation conditions.

Does the Code J Evo have a fan?

No. The stove uses natural convection, so normal heat distribution does not require forced ventilation.

Is the Code J Evo quiet?

Yes. Its natural convection system allows the stove to operate without the noise associated with a standard forced-air fan.

What size logs can be used?

The stove can accommodate logs up to 33 cm vertically and 25 cm horizontally.

What is the combustion chamber made of?

The standard combustion chamber is made from vermiculite. A cast iron combustion chamber is available as an optional configuration.

Where is the flue outlet located?

The Ø15 cm flue outlet can be positioned at the top or at the rear of the stove.

What is the external air intake diameter?

The external air intake has a diameter of 10 cm.

What are the dimensions of the Code J Evo?

The stove measures 51 cm wide, 49.5 cm deep and 125 cm high.

How much does the Code J Evo weigh?

The total weight is 152 kg.

Which finishes are available?

The Code J Evo is available in Black Steel, Grey Steel and Bronze Steel.

Does the stove have automatic door closure?

Yes. The door features automatic closure with a shock absorber.

Can the combustion air be adjusted?

Yes. The combustion air is regulated using a manual control.

Can the heat be distributed to other rooms?

The Code J Evo is available with optional accessories for installation with AIR DIFFUSER and ventilated air vents. The suitability of a ducted heat distribution system depends on the specific installation.
