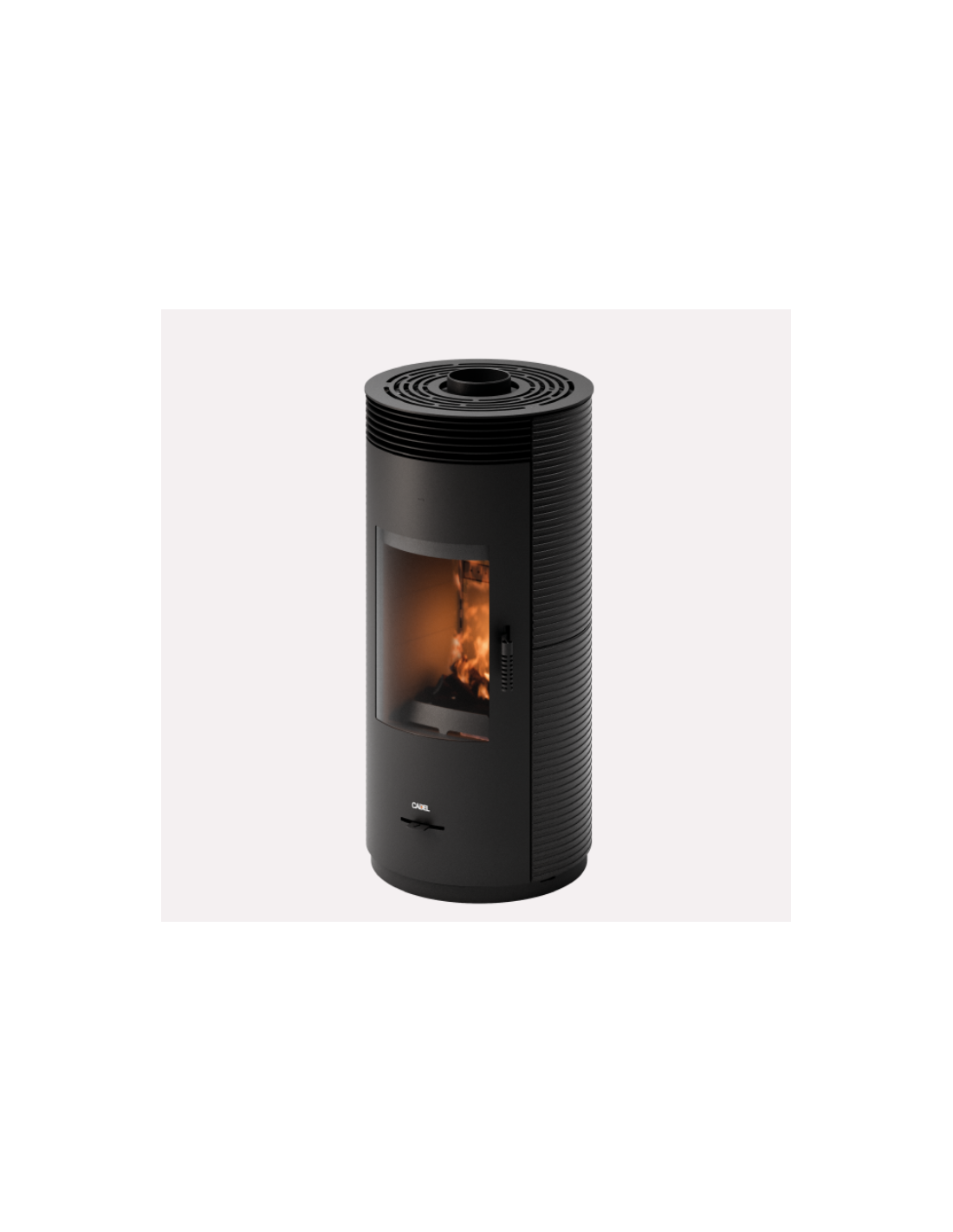

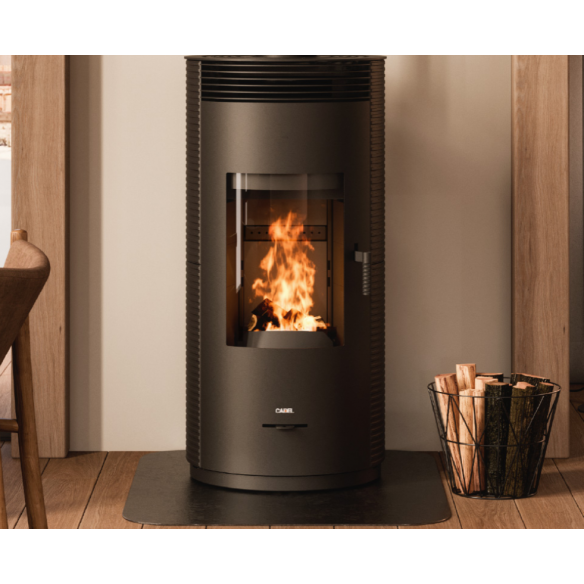

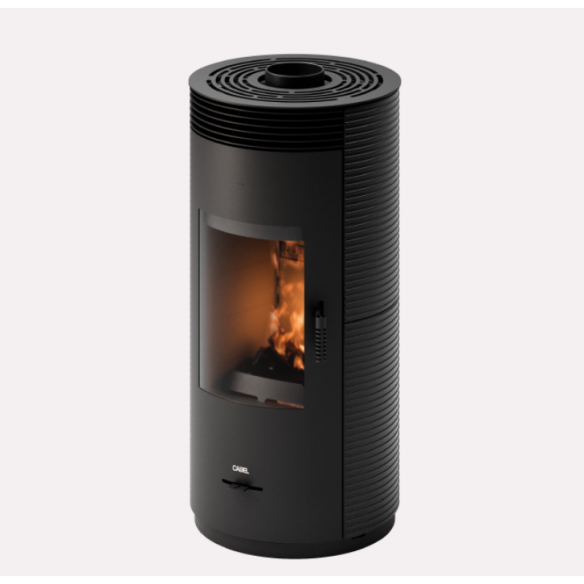

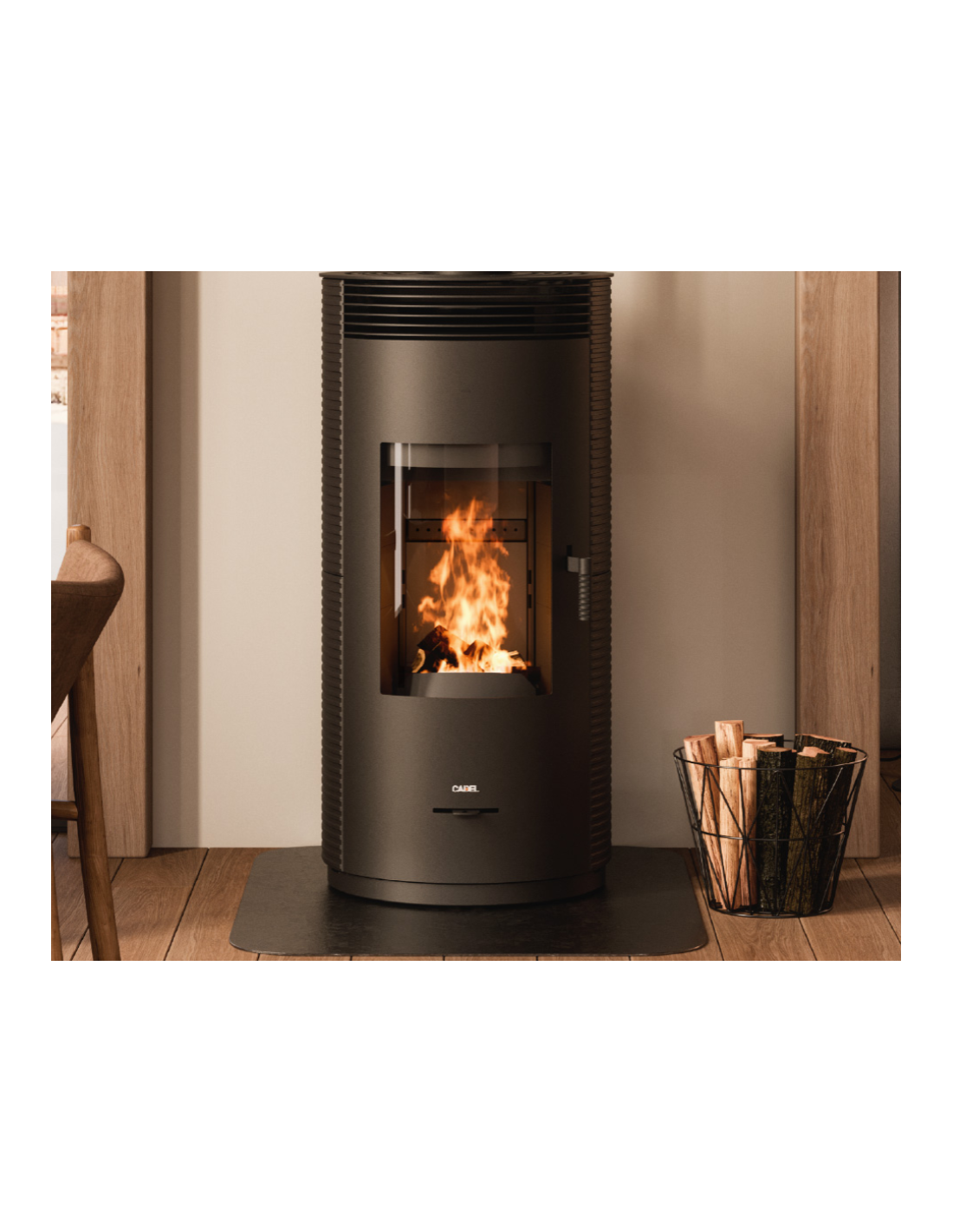

CADEL Spin 9 Wood Air – 9kW Wood Burning Stove
The CADEL Spin 9 Wood Air is a modern 9kW wood burning stove designed for homeowners looking for efficient wood heating combined with a strong visual focus on the fire.
The SPIN 9 WOOD AIR T2 has a nominal heat output of 9kW and a nominal efficiency of 86%. It is rated A+ for energy efficiency, with a seasonal space-heating efficiency of 76%. CADEL specifies a heating volume of up to 252m³.

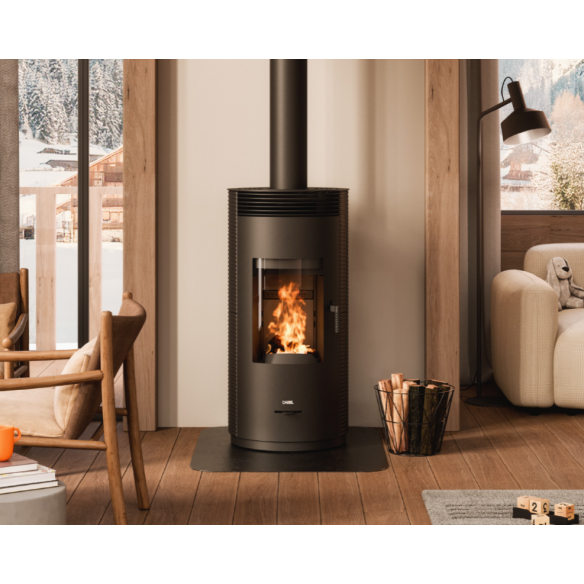

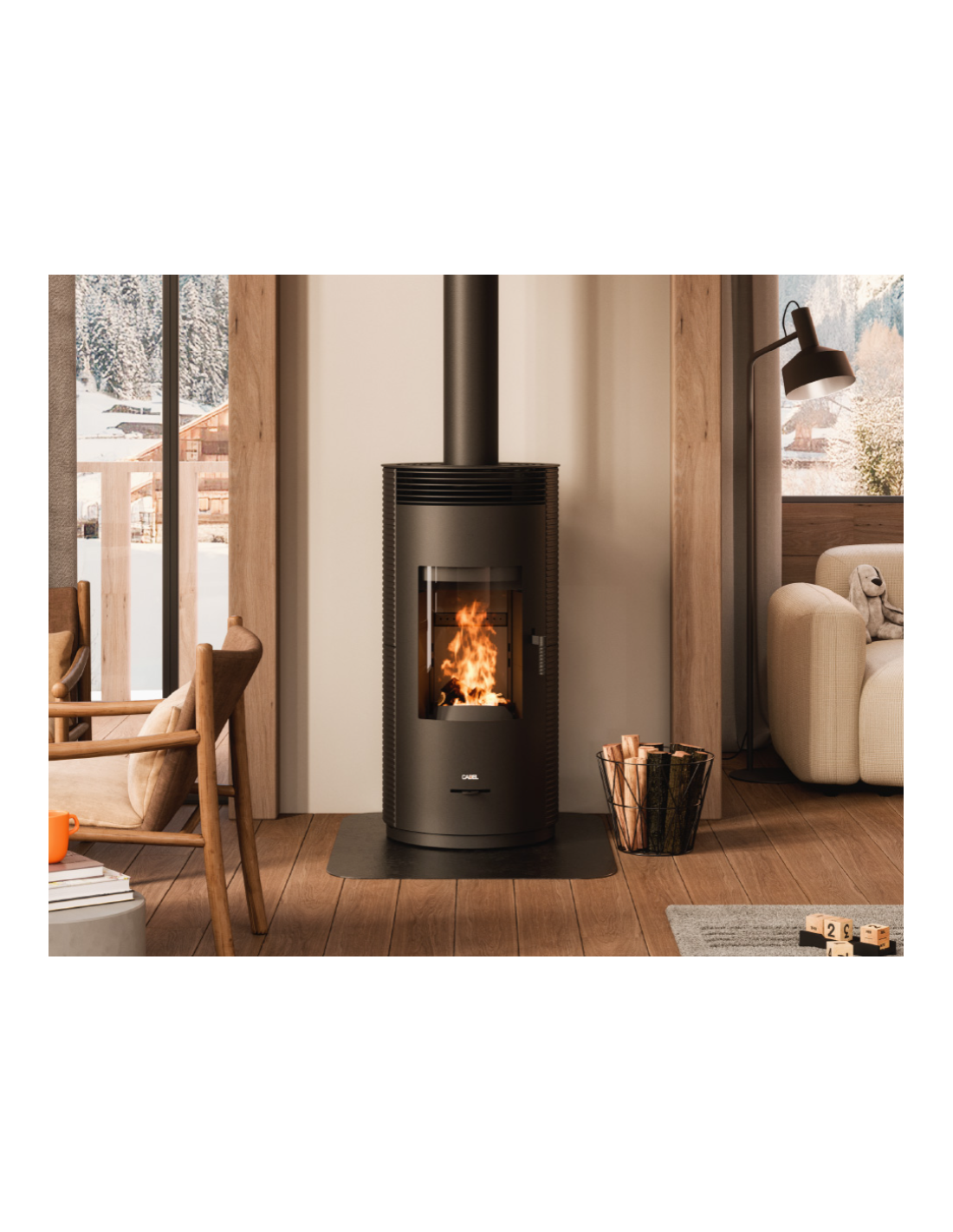

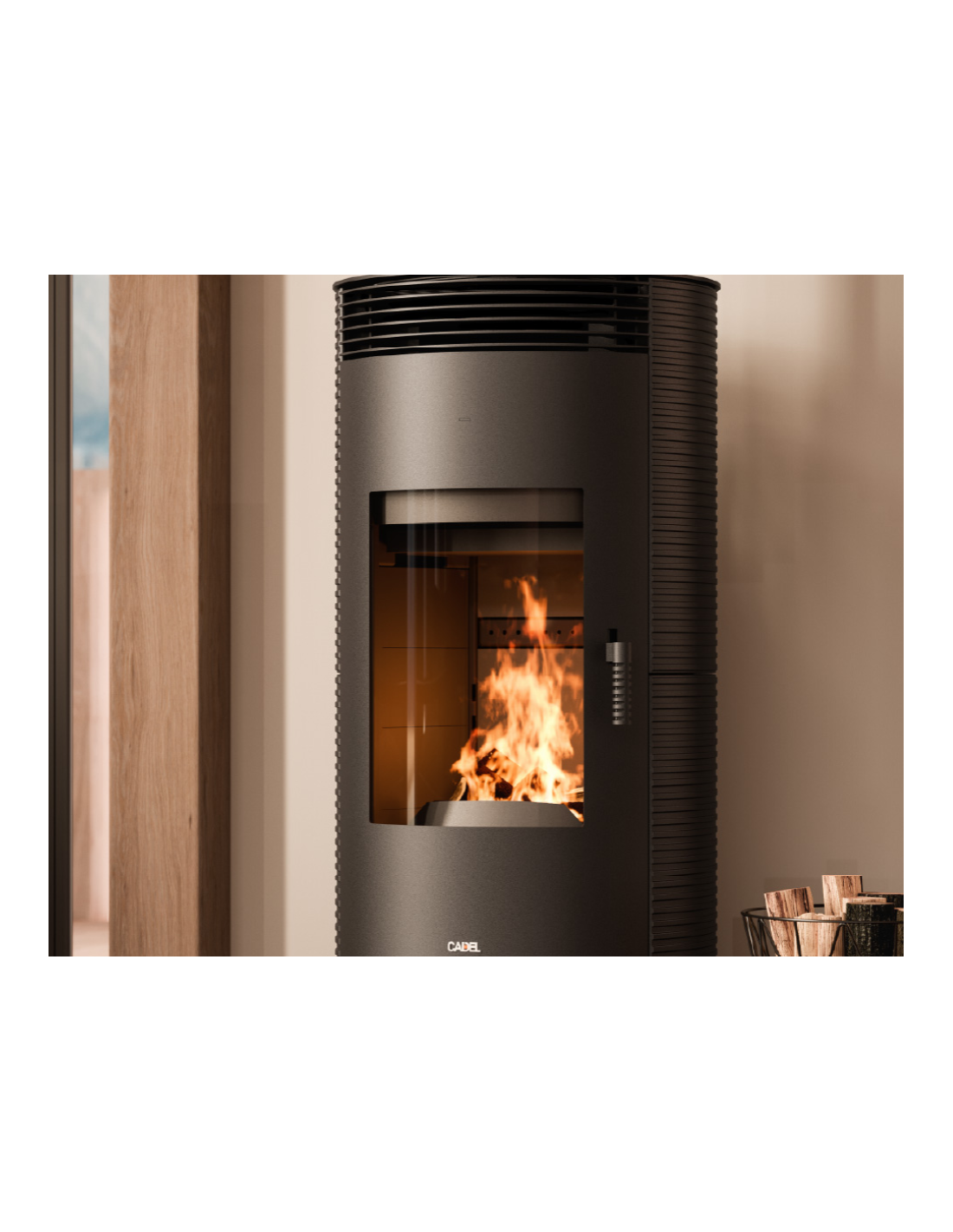

Large glass door and panoramic view of the flames

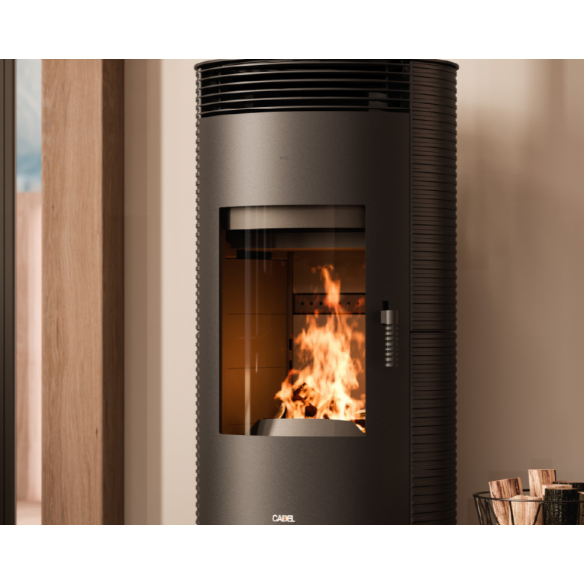

The large front glass door provides a clear view of the fire and gives the stove a strong visual presence in the living space.
The firebox is designed for wood logs up to 33cm long, making the stove suitable for standard firewood sizes within the manufacturer's specified limits.
Efficient combustion technology
The firebox is lined with refractory material and incorporates a supply of air for second-stage combustion.
This system is designed to support efficient combustion of the wood. The official technical documentation specifies a nominal efficiency of 86%.
Sealed combustion chamber
The SPIN 9 WOOD AIR T2 is specified with a sealed combustion chamber, Type CM.

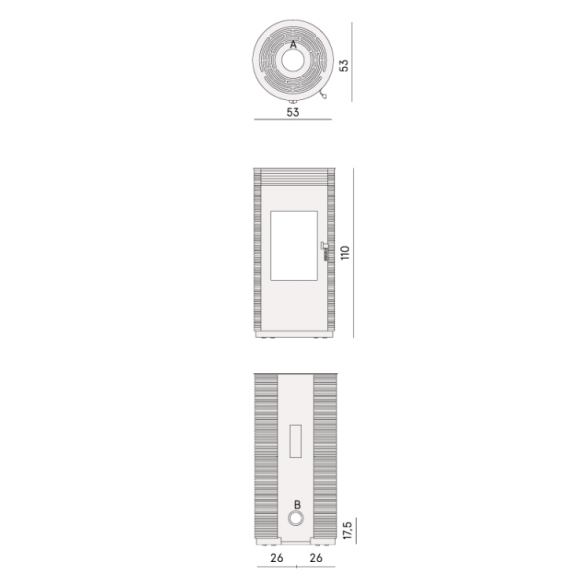

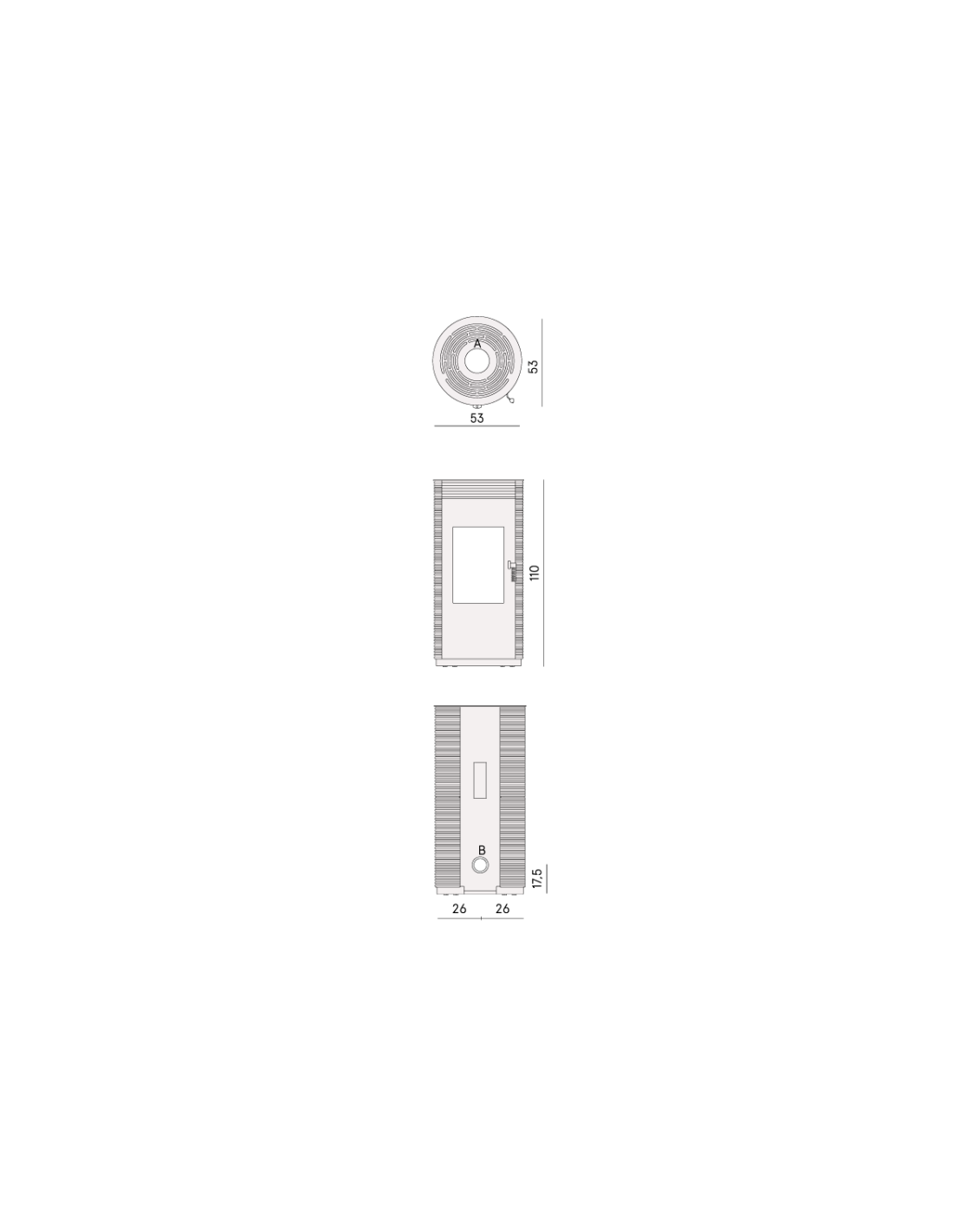

The official technical documentation lists an Ø80mm combustion-air inlet and an Ø150mm flue outlet.
Installation must always comply with the manufacturer's instructions and the regulations applicable to the installation location.
Integrated ventilation

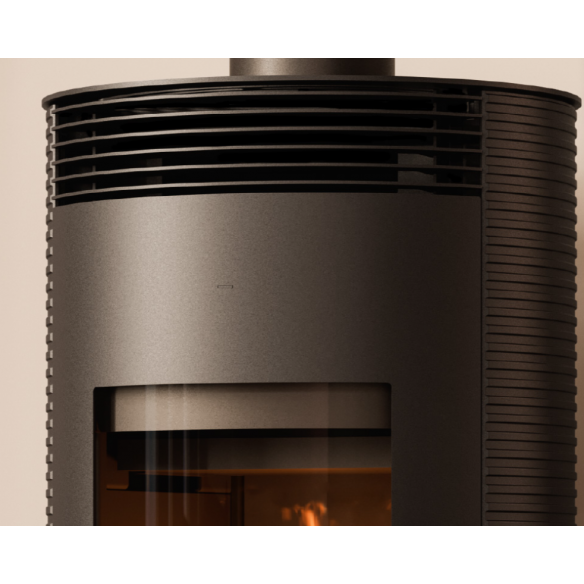

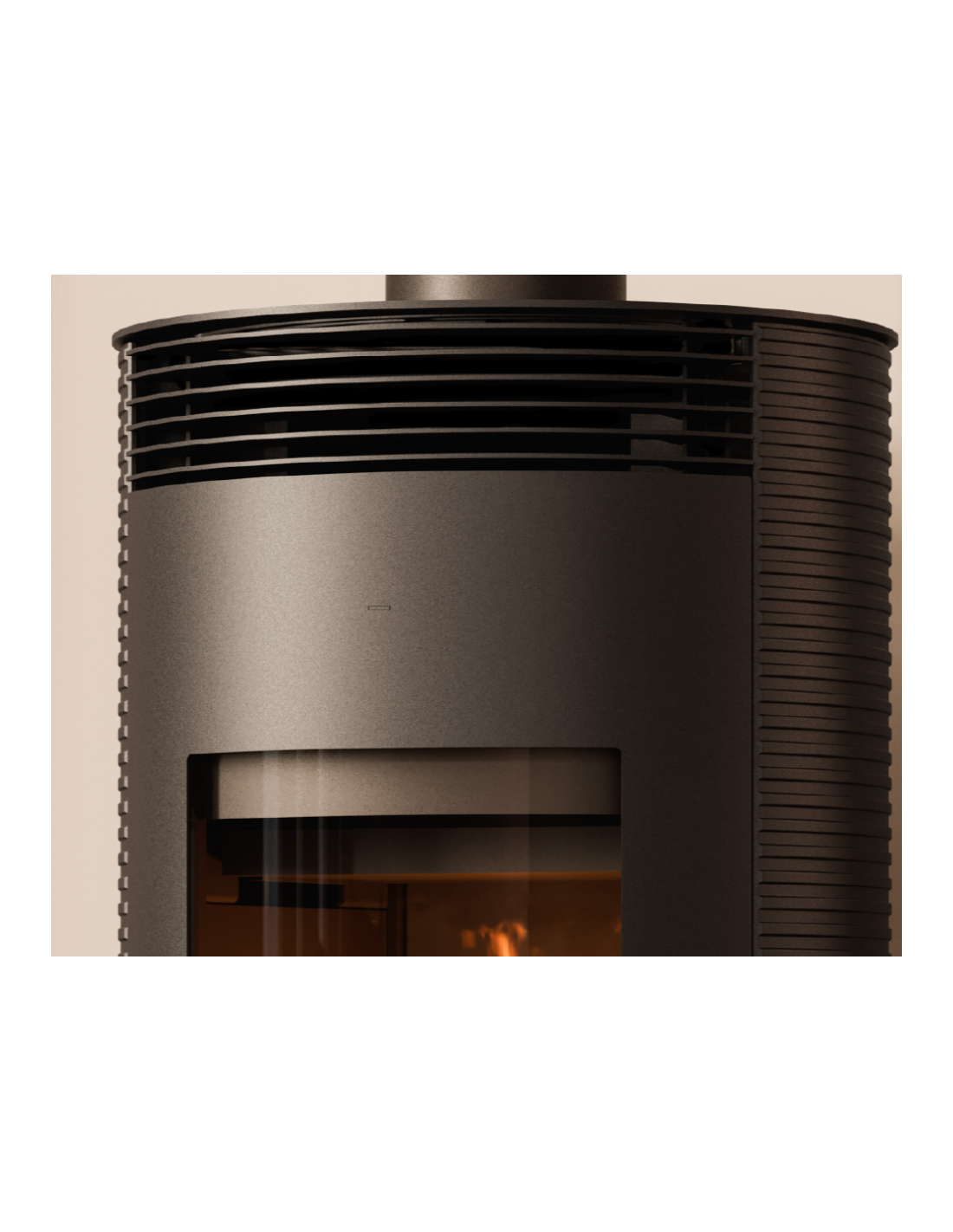

The Spin 9 Wood Air incorporates ventilation to assist the distribution of warm air.
This feature makes the appliance particularly interesting for users looking for a wood burning stove that combines traditional radiant heat with assisted air circulation.
Heating volume up to 252m³
CADEL specifies a heating volume of 252m³ for the Spin 9 Wood Air and an indicative heating area of 93m².
These figures are manufacturer-declared reference values. Actual heating performance depends on insulation, building characteristics, climate, room layout and heat-loss calculations.
A+ energy efficiency
The SPIN 9 WOOD AIR T2 has an A+ energy efficiency rating, with a seasonal space-heating efficiency of 76% and an energy efficiency index of 115.
Technical specifications
| Specification | Value |
|---|
| Brand |
CADEL |
| Model |
SPIN 9 WOOD AIR T2 |
| Fuel |
Wood |
| Nominal heat output |
9 kW |
| Nominal efficiency |
86% |
| Energy efficiency class |
A+ |
| Seasonal space-heating efficiency |
76% |
| Heating volume |
252m³ |
| Indicative heating area |
93m² |
| Maximum log length |
33cm |
| Net weight |
153kg |
| Flue outlet |
Ø150mm |
| Combustion air inlet |
Ø80mm |
| Combustion chamber |
Sealed, Type CM |
| Secondary combustion |
Yes |
| Ventilation |
Yes |
| Flue outlet position |
Top |
| Environmental classification |
5 stars D.M. 186 |
Technical specifications are based on the official CADEL documentation for the SPIN 9 WOOD AIR T2.
Key benefits
- 9kW nominal heat output
- 86% nominal efficiency
- A+ energy efficiency class
- Heating volume up to 252m³
- Integrated ventilation
- Sealed combustion chamber
- Refractory-lined firebox
- Secondary combustion
- Large glass door
- Logs up to 33cm
- Top flue outlet
- Ø150mm flue connection
- Ø80mm combustion-air connection
- 153kg net weight
FAQ
What is the output of the CADEL Spin 9 Wood Air?
The stove has a 9kW nominal heat output.
How much space can the Spin 9 Wood Air heat?
CADEL specifies a heating volume of up to 252m³.
What is the efficiency of the Spin 9 Wood Air?
The nominal efficiency is 86%.
Is the CADEL Spin 9 Wood Air a sealed stove?
The SPIN 9 WOOD AIR T2 is specified with a sealed combustion chamber, Type CM.
What size logs can the stove burn?
The stove is designed for logs up to 33cm long.
Does the Spin 9 Wood Air have a fan?
Yes. The model includes ventilation to assist warm-air distribution.
What energy rating does the stove have?
The SPIN 9 WOOD AIR T2 is rated A+.
