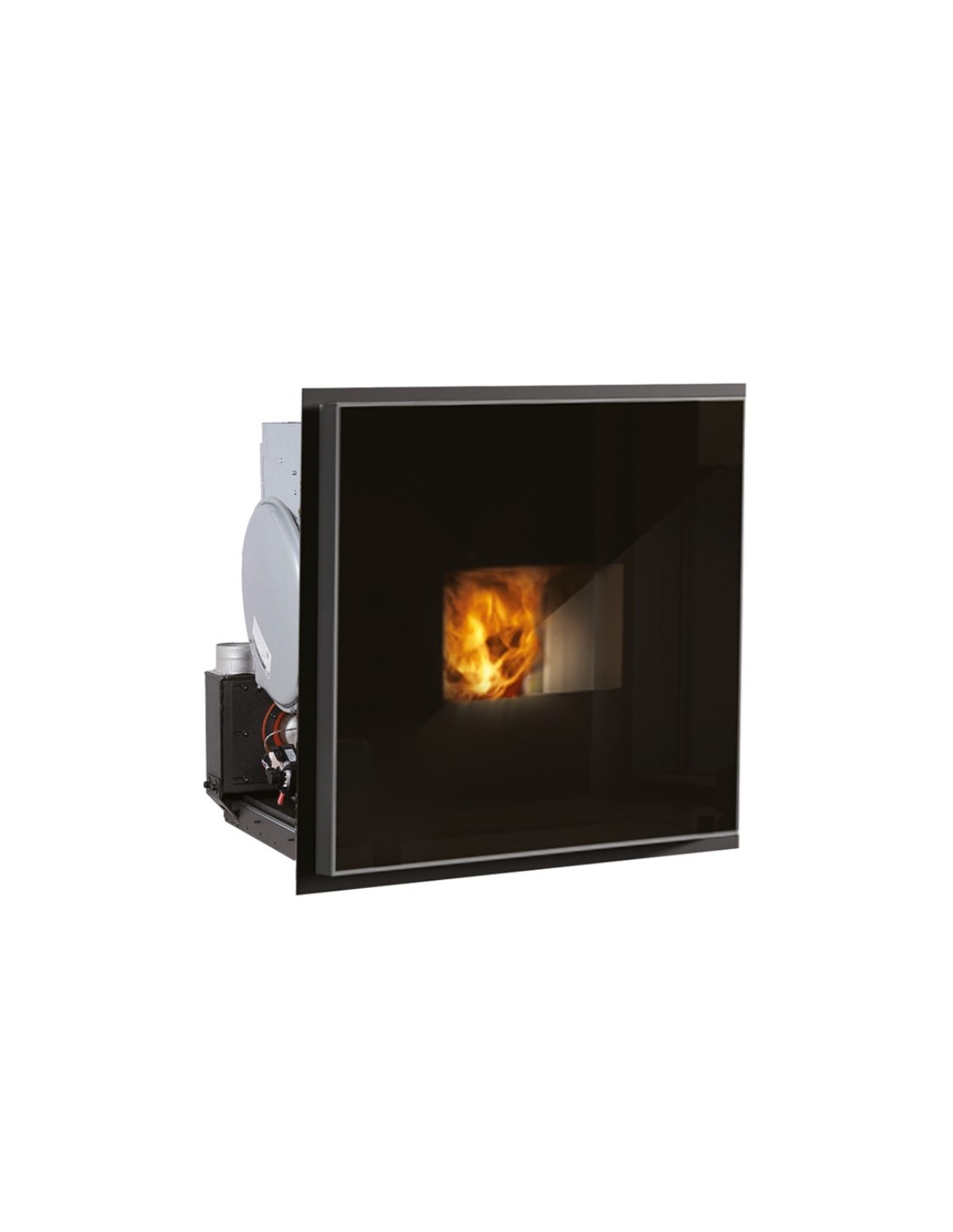

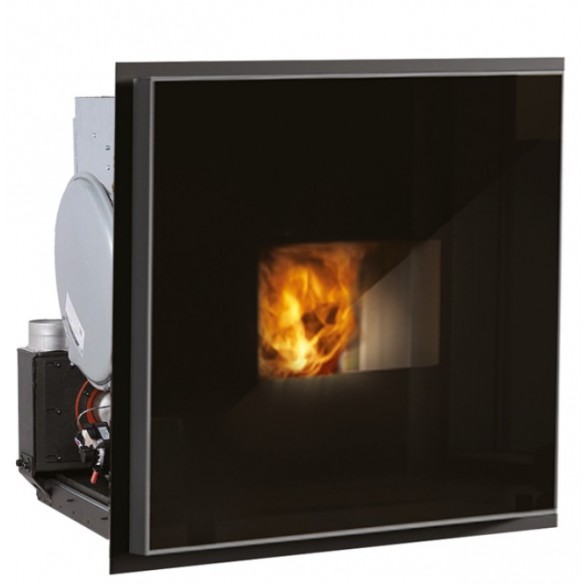

The Pellkamin H 17 by Edilkamin is a hydro pellet fireplace designed for those who want to replace a traditional open fireplace with a modern, efficient, and eco-friendly heating system. Thanks to its integrated hydraulic technology, the heat produced is transferred to the system's water, powering radiators, heated towel rails, or underfloor heating, contributing to heating the entire home.
With a modulating power output of 5.5 to 16.5 kW and an efficiency of up to 94.2% , the Pellkamin H 17 guarantees low consumption and high performance, offering constant comfort throughout the winter season. It is suitable for medium to large homes, with a heatable volume of up to approximately 420 m³ , depending on the building's insulation and the type of system.

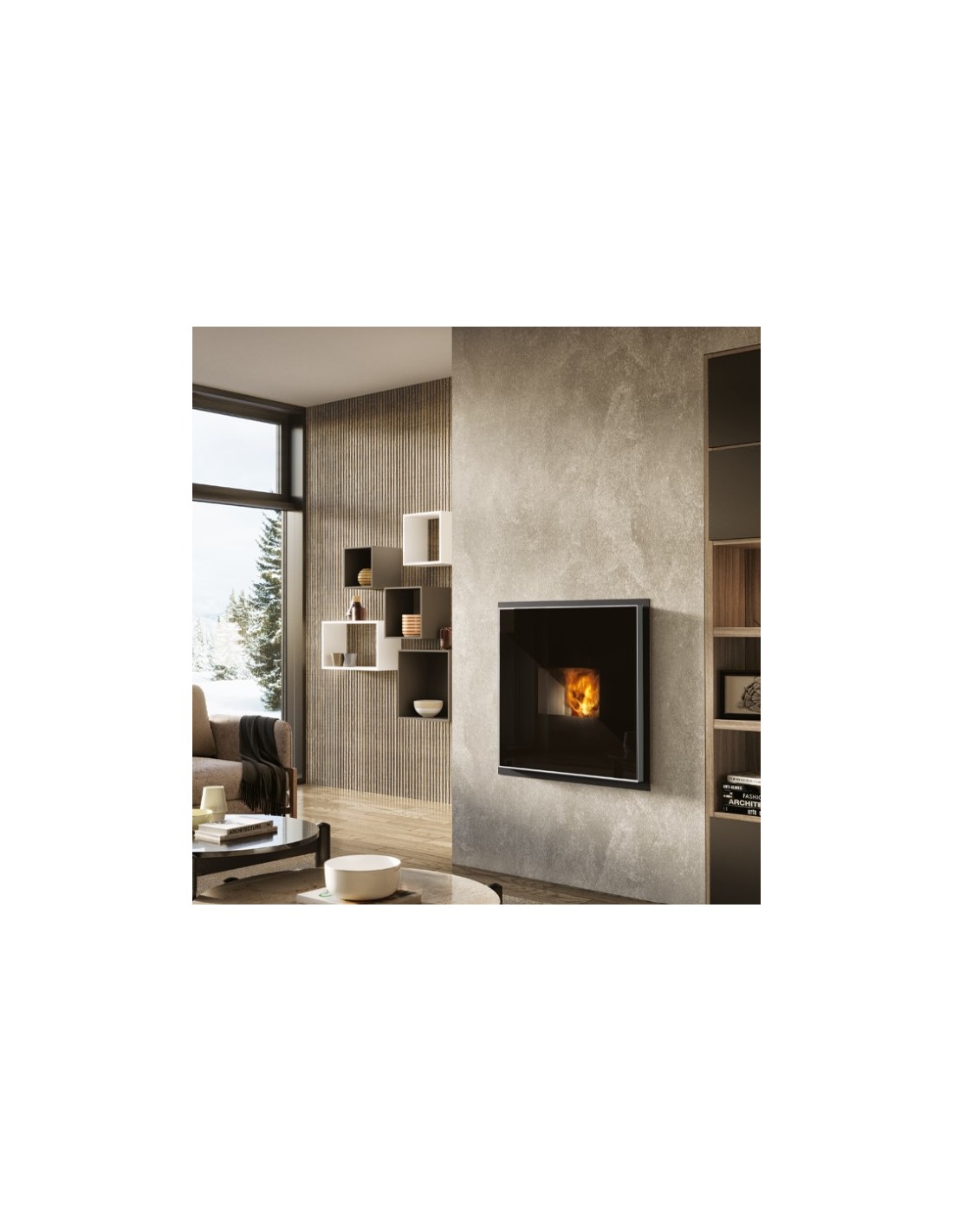

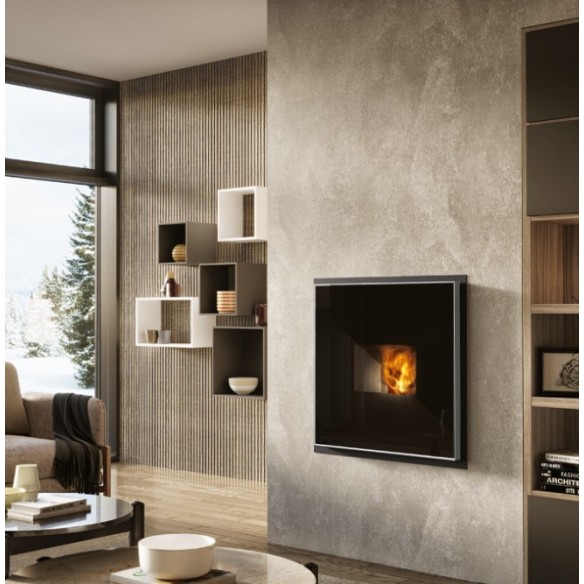

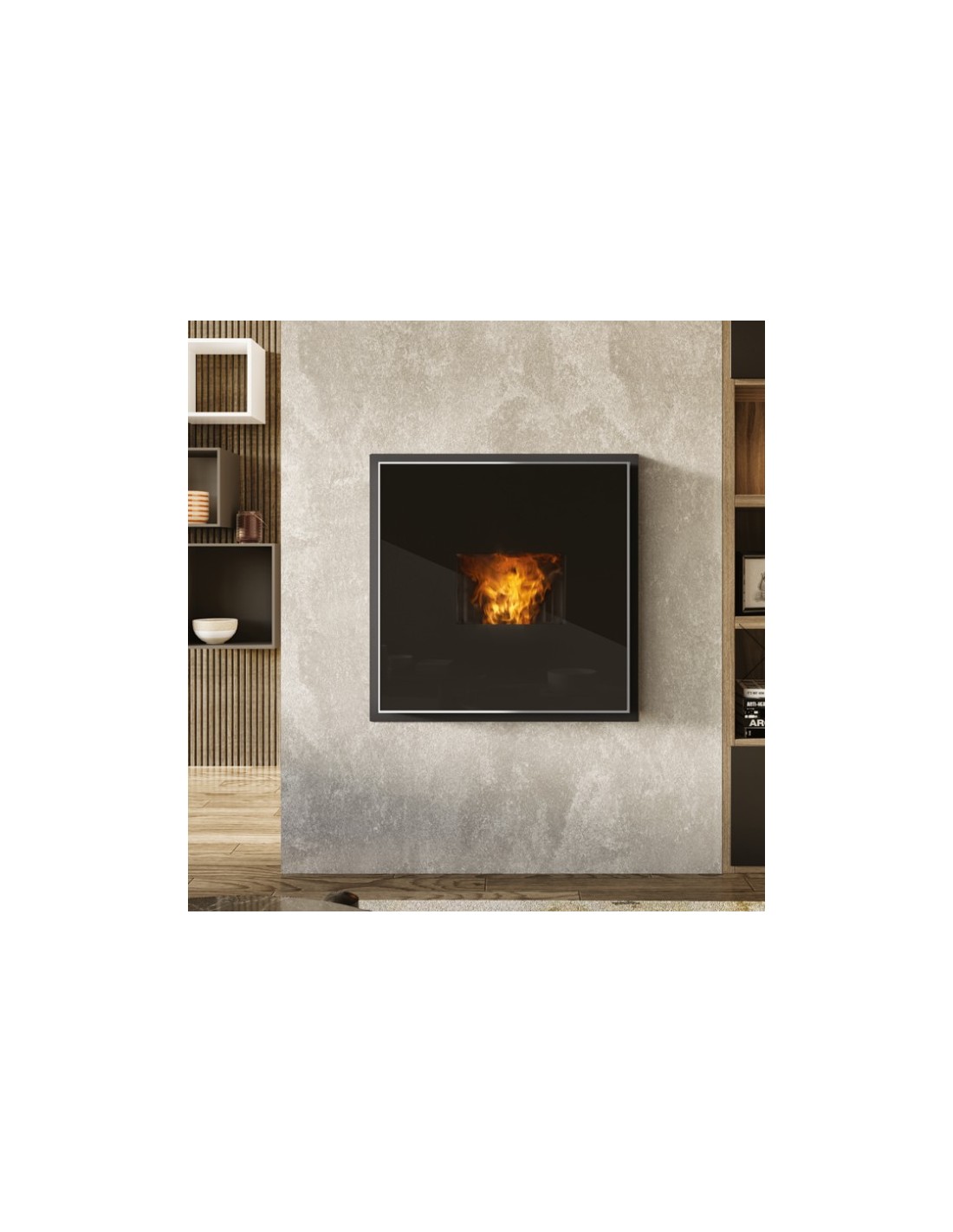

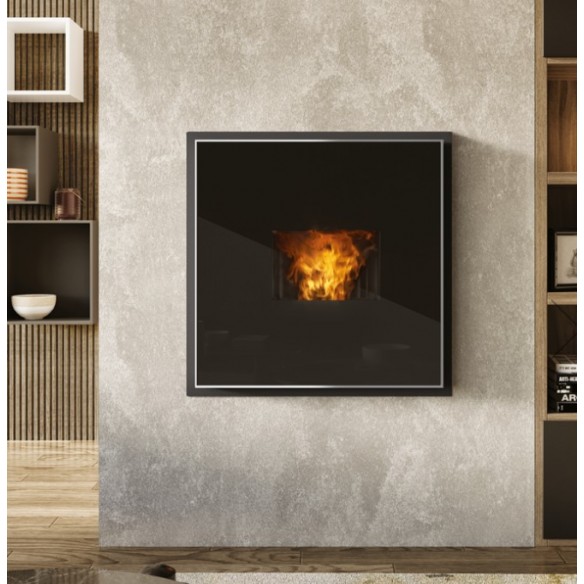

Aesthetically, Magic Glass keeps the front completely black when the fireplace is off, blending seamlessly into any environment. During operation, it allows the flame to be admired, creating the typical atmosphere of a traditional fireplace.
The appliance comes complete with a built-in hydraulic kit , remote control, integrated Wi-Fi, and daily and weekly programming. Pellet loading is done from the front via a convenient drawer, while the extraction system on guides facilitates routine maintenance.
Thanks to its Corten steel structure, a material particularly resistant to high temperatures and corrosion, Pellkamin H 17 offers reliability, long life and low running costs.
Main features
- Hydro pellet thermo-fireplace insert.
- Useful power from 5.5 to 16.5 kW .
- Power output to water up to 11 kW .
- Efficiency up to 94.2% .
- Structure and firebox in Corten steel.
- Magic Glass ceramic glass.
- Double locking door.
- Complete hydraulic kit built-in.
- Expansion vessel closed.
- Daily and weekly programming.
- Built-in Wi-Fi.
- Remote control included.

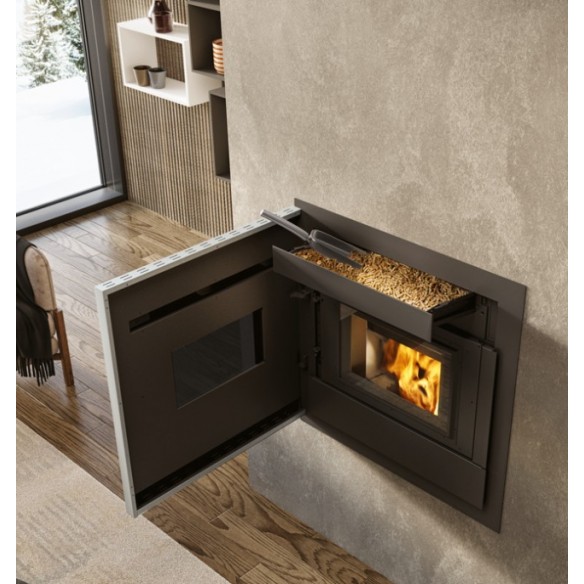

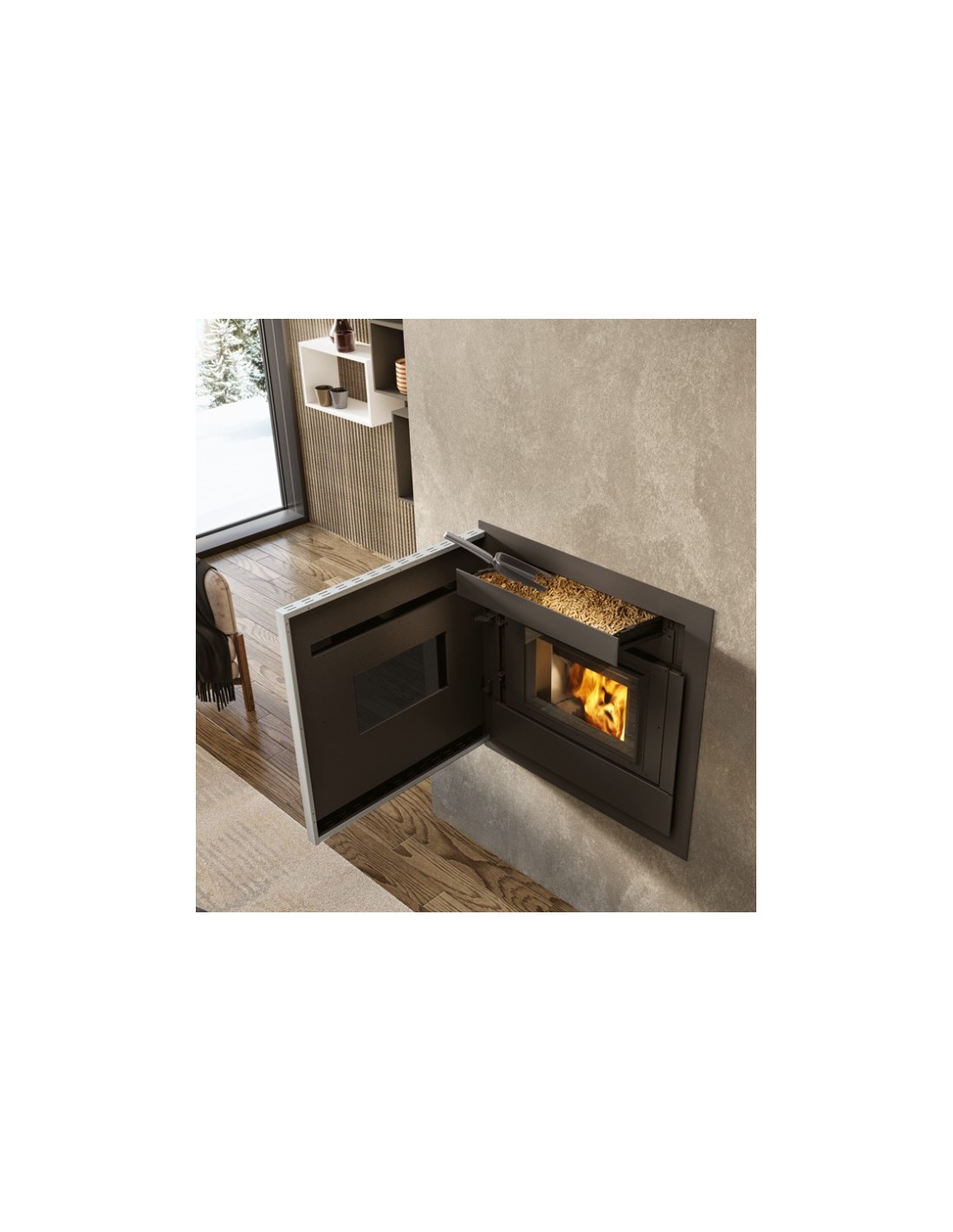

- Front pellet loading via drawer.
- Complete extraction on guides for easy maintenance.
- Easy installation thanks to integrated hydraulics.
Technical specifications
| Characteristic | Value |
|---|
| Typology |
Hydro pellet fireplace |
| Useful power |
5.5 – 16.5 kW |
| Power output to water |
2.4 – 11 kW |
| Performance |
94.2% |
| Pellet consumption |
0.9 – 3.7 kg/h |
| Tank capacity |
18 kg |
| Autonomy |
5 – 18 hours |
| Water content |
12 liters |
| Heatable volume |
up to 420 m³ |
| Dimensions (L×W×H) |
78 × 58 × 70 cm |
| Weight |
158 kg |
| Smoke outlet |
Ø 80 mm |
| Air intake |
Ø 44 mm |
Advantages
- High energy efficiency.
- Reduction of pellet consumption.
- Remote management via Wi-Fi.
- Simplified installation thanks to the integrated hydraulic kit.
- Elegant design with Magic Glass tinted glass.
- Quick maintenance thanks to extraction on guides.
- Ideal for replacing a traditional fireplace without sacrificing the charm of the flame.
- Heats the entire home by connecting to the existing system.
Recommended applications
The Pellkamin H 17 is suitable for:
- detached houses;
- villas;
- apartments with plumbing;
- replacement of open fireplaces;
- new renovations;
- systems with radiators;
- underfloor systems.
Equipment included
- Radio control.
- Built-in hydraulic kit.
- Built-in Wi-Fi.
- Expansion vessel.
- Extraction system on guides.
- Front pellet loading drawer.
Optional extras available
- Hatch loading kit with chute.
- Height-adjustable easel.
Pellkamin H 17 Edilkamin – Optional Accessories
The Pellkamin H 17 Edilkamin can be completed with various optional accessories. Below are the options indicated in the supplied documentation.
Top Loading Hatch with Chute – Optional
Code: 1195510
The top loading hatch with chute is designed to make it easier to load pellets from above.
The accessory includes a loading hatch with hinged flap, flexible hose and flange.
Features
. top loading hatch;
. hinged flap;
. flexible hose;
. flange;
. solution designed to facilitate pellet loading.
Product code: 1195510
Price: €330.00
3-Height Adjustable Stand
Code: 1195520
The Pellkamin H 17 can be equipped with a stand adjustable to 3 different heights, designed to adapt the height of the heating appliance to the installation requirements.
The three heights indicated in the documentation are:
. 40 cm;
. 50 cm;
. 60 cm.
Features
. 3-height adjustment;
. 40 cm height;
. 50 cm height;
. 60 cm height;
. stand specifically designed for positioning the Pellkamin H 17.
Product code: 1195520
Price: €260.00
Kit P – Pre-Assembled Hydraulic Kits
Code: 1155270
The Kit P is a system consisting of pre-assembled hydraulic components, designed to complete the hydraulic configuration of the installation.
The documentation lists the Kit P as an optional accessory and refers to the relevant technical section for further details.
Features
. pre-assembled hydraulic kit;
. solution designed to simplify the hydraulic installation configuration;
. available as an optional accessory for the Pellkamin H 17.
Product code: 1155270
Price: €1,000.00
Control Unit with Display
Code: 1156200
Among the optional accessories available for the Pellkamin H 17 is the control unit with display, designed for managing and controlling the appliance.
The documentation also specifies that the control unit must be ordered when installing the Kit P.
Features
. control unit;
. integrated display;
. solution designed for system management;
. to be ordered when installing the Kit P, as indicated in the catalogue.
Product code: 1156200
Price: €175.00
FAQ
Can the Pellkamin H 17 power radiators?
Yes, it is a hydrothermal fireplace designed to power water heating systems such as radiators and radiant panels.
Is Wi-Fi already included?
Yes, Wi-Fi control is built in as standard.
How is the pellet loaded?
The pellets are loaded from the front via a practical pull-out drawer.
Is maintenance easy?
Yes, the product slides on guides to facilitate cleaning and maintenance.
Is it suitable for replacing a traditional fireplace?
Yes, it was created specifically to transform an existing fireplace into an efficient pellet heating system.
