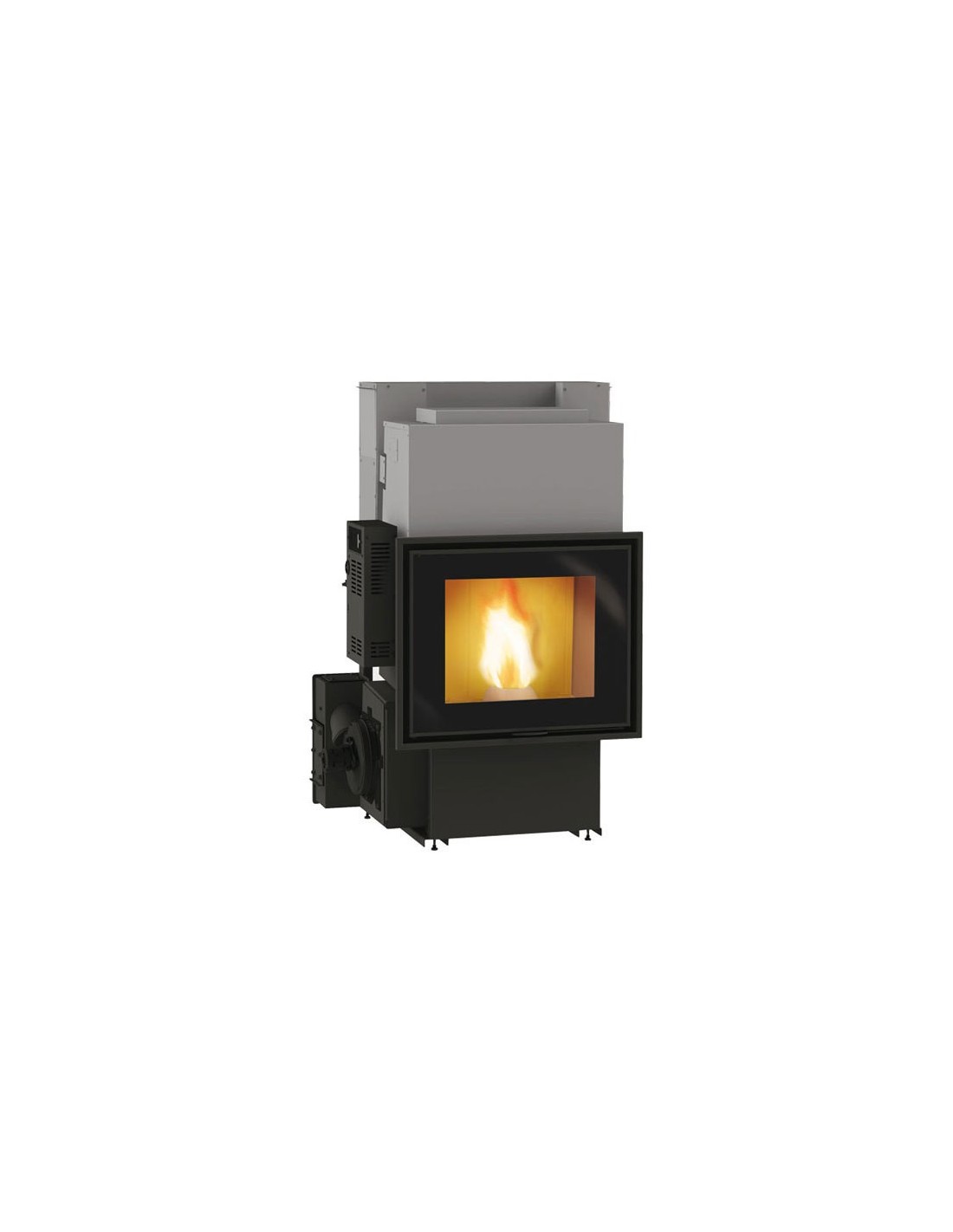

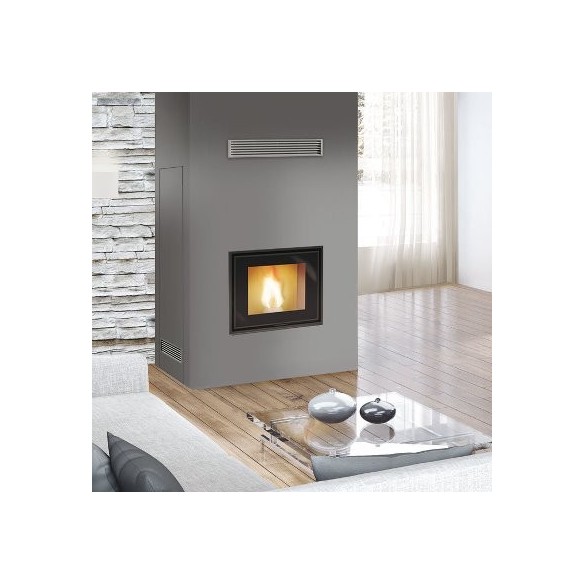

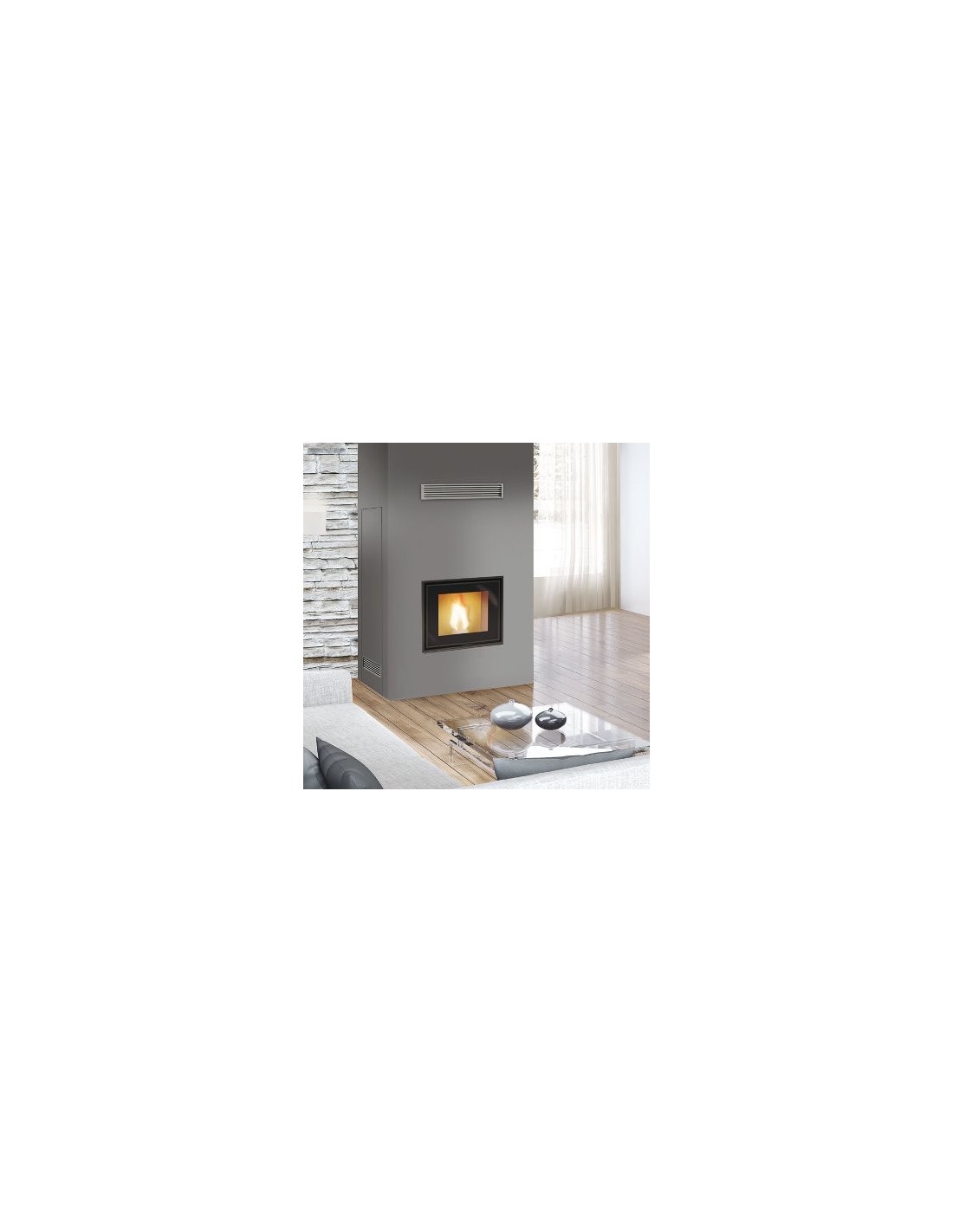

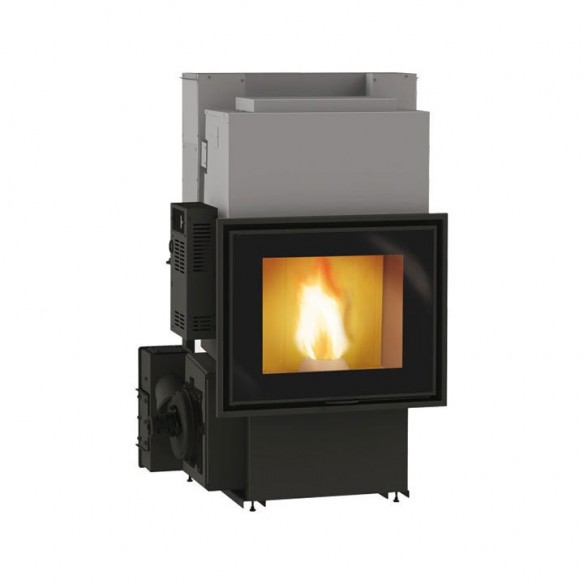

The Edilkamin Idropellbox H 30 Pellet Thermo-Fireplace is designed for those seeking a powerful, reliable, and eco-friendly heating system. Thanks to hydro technology, the heat produced by pellet combustion is transferred to the system's water, powering radiators, heated towel rails, and underfloor heating panels, ensuring uniform comfort throughout the home.
With a modulating output of 8.3 to 27 kW and a water output of up to 22 kW , the Idropellbox H 30 is suitable for large homes and can heat spaces up to 705 m³ , depending on the building's insulation and the type of system. Its 90.4% efficiency allows for optimized consumption while maintaining high performance.
The Ecokeram firebox guarantees high resistance to high temperatures and efficient combustion. The Leonardo System automatically manages combustion, adapting it to the characteristics of the pellets and the installation, improving efficiency, safety, and reliability.
The appliance comes complete with a built-in hydraulic kit with a closed expansion tank, modular circulator, and safety valve. Pellet loading can be done from either the right or left side, making it easy to install even in tight spaces.
Standard accessories include a remote control with display, daily and weekly programming, and adjustable feet. The functionality can also be expanded with a Wi-Fi kit, a front ventilation kit, and other dedicated accessories.
Main features
- Hydro pellet fireplace.
- Useful power from 8.3 to 27 kW .
- Power output to water up to 22 kW .
- Yield 90.4% .
- Ecokeram fireplace.
- Leonardo system for automatic combustion management.
- Built-in hydraulic kit.
- Expansion vessel closed.
- Modular circulator.
- Safety valve.
- Remote control with display.
- Daily and weekly programming.
- Right or left side pellet loading.
- Rear or top flue outlet.
- Height-adjustable feet.
- 4 Star environmental class.
Technical specifications
| Characteristic | Value |
|---|
| Typology | Hydro pellet fireplace |
| Useful power | 8.3 – 27 kW |
| Useful power for water | 5.6 – 22 kW |
| Performance | 90.4% |
| Pellet consumption | 1.8 – 6.2 kg/h |
| Tank capacity | 60 kg |
| Autonomy | 10 – 33 hours |
| Water content | 50 liters |
| Heatable volume | up to 705 m³ |
| Dimensions (L×W×H) | 97 × 60 × 143 cm |
| Weight | 265 kg |
| Smoke outlet | Ø 10 cm |
| Air intake | Ø 4 cm |
Advantages
- High power for large homes.
- Power supply for the entire heating system.
- Large tank for long battery life.
- Intelligent combustion with the Leonardo System.
- Flexible installation thanks to side loading.
- Hydraulic kit already integrated.
- Possibility of adding front ventilation for direct heating of the room.
- Low consumption and automated management.
Recommended applications
- Villas.
- Detached houses.
- Farmhouses.
- Large homes.
- Renovations.
- Systems with radiators.
- Underfloor systems.
- Replacement of traditional fireplaces.
Equipment included
- Remote control with display.
- Built-in hydraulic kit.
- Expansion vessel closed.
- Modular circulator.
- Safety valve.
- Adjustable feet.
- Leonardo System.
Optional extras available
- Wi-Fi kit.
- Front ventilation kit.
- Air Diffuser Kit.
- GSM dialer.
- Pre-assembled external hydraulic kits.
FAQ
Can Idropellbox H 30 power a radiator system?
Yes, it is designed to power radiators, heated towel rails, and radiant heating systems.
Is Wi-Fi included?
No, The Wi-Fi kit is available as an optional accessory.
How many pellets does the tank hold?
The tank has a capacity of 60 kg , guaranteeing up to 33 hours of autonomy .
Is it possible to install warm air ventilation?
Yes, via the optional front ventilation kit.
What combustion systems do you use?
It is equipped with the Leonardo System , which automatically optimises combustion based on the conditions of use.
