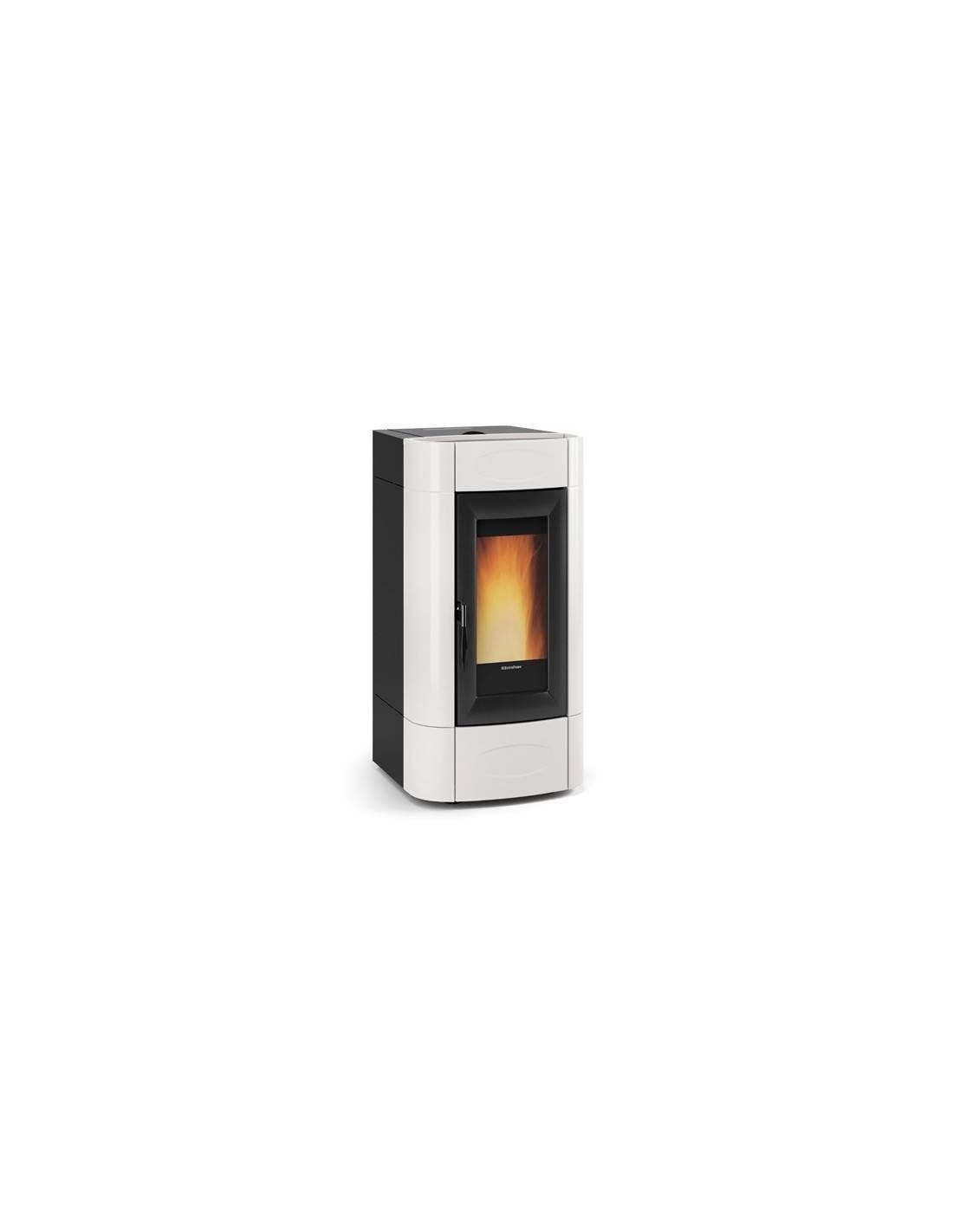

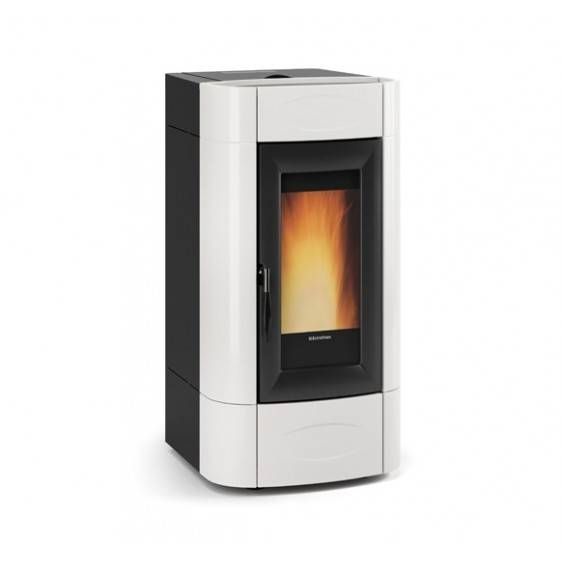

Isidora Idro H20 5.0 ventilated pellet stove La Nordica Extraflame
Isidora Hydro H20 5.0
Ventilated pellet stove
Characteristics :
• Self-cleaning brazier with brushless motor
• Ceramic spark plug for quick ignition
• Brushless gear motor for pellet loading
• Circulator with PWM control
• Air vent
• Upper room ventilation with dedicated motor, excludable
• Possibility of exit for smoke exhaust: rear in axis
• Pressure transducer with display
• Combustion chamber in high thickness steel
• Handle with ergonomic grip
• Cast iron fire door and brazier
• Watertight tank
• Probe in combustion chamber
• Shell and tube heat exchanger (manual cleaning)
• Thermal and water pressure safety devices
• Wide view of the flame
• Expansion vessel
• 3 bar safety valve
• Removable ash drawer
6.9-23.1 kW Nominal thermal power
20.0 kW-H 2 O Power output to water
663 m 3 m³ heatable
Dimensions (LxHxD) 596x1243x708 mm
Net Weight 235 kg
Yield 92.9 - 90.7 %
Hourly consumption 1.6 - 5.1 kg/h
Smoke exhaust diameter (Ø)100 mm P
Environmental Certification DM186 5 stars
Energy Class A+
