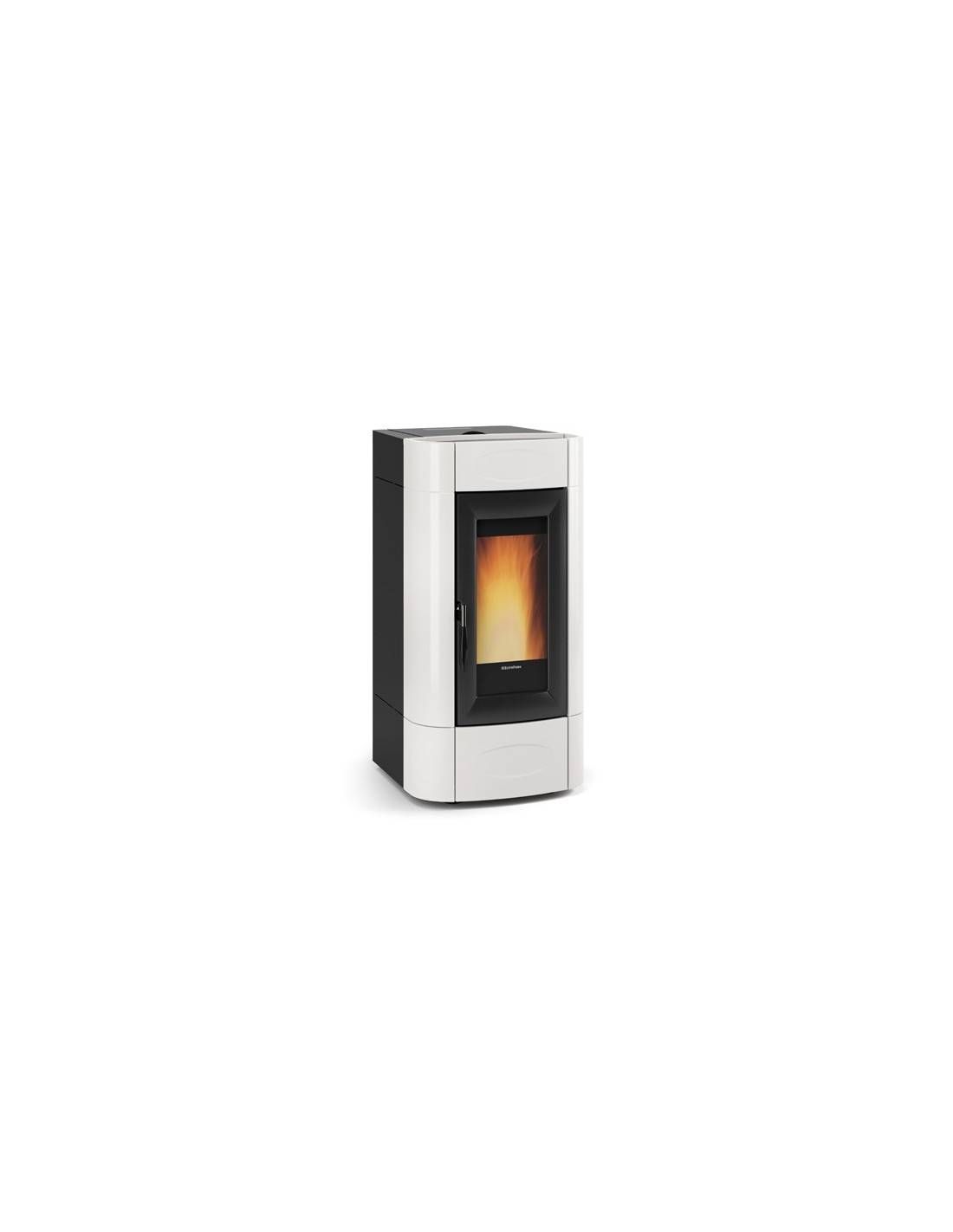

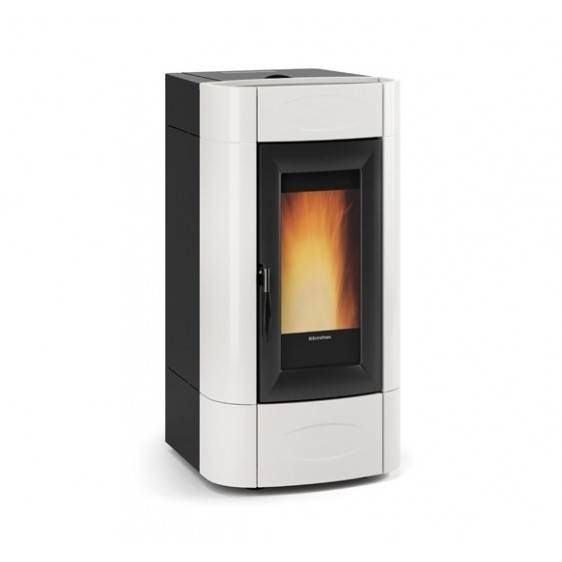

Isidora Idro H23 5.0 ventilated pellet stove La Nordica Extraflame
Isidora Hydro H23 5.0
Ventilated pellet stove
Characteristics:
• Self-cleaning brazier with brushless motor
• Ceramic spark plug for quick ignition
• Brushless gear motor for pellet loading
• Circulator with PWM control
• Air vent
• Upper room ventilation with dedicated motor, excludable
• Possibility of exit for smoke exhaust: rear in axis
• Combustion chamber in high thickness steel
• Cast iron fire door and brazier
• Watertight tank
• Probe in combustion chamber
• Shell and tube heat exchanger (manual cleaning)
• Expansion vessel
• 3 bar safety valve
• Removable ash drawer
• FPC – Innovative adaptive system for regulating and maintaining the combustion air constant over time
• FPC PLUS - in addition to the work done by FPC, it allows the identification of anomalous situations, putting the generator in safe conditions
• IR Touch Remote Control
• Black Mask display with integrated Wi-Fi (“Total Control 3.0” App)
7.7-27.6 kW Nominal thermal power
23.0 kW-H 2 O Power output to water
792 m 3 m³ heatable
Yield 89.3-92.1%
Hourly consumption 1.7-6.1 kg/h
Dimensions (LxHxD) 596 x 1243 x 737 mm
Net Weight 235 kg
Smoke exhaust diameter (Ø)100 mm P
Total tank capacity ~38 kg
Energy Class A +
Environmental Certification DM186 5 STARS
